AFOLUX Panel PC with Intel® Atom™ Processor N2600

Features Specifications Rich I/O Interface
Ordering Information Options Packing List
   Features

Compact Size with Dual Core High Performance Processor
7”/8.4”/10.4”/12.1” fanless system features dual core Intel® Atom™ N2600 processor at 1.6GHz with pre-installed 2GB DDR3
Lower system power consumption
Reliable 9-28V DC and SSD
9-28V DC input for automation and vehicle applications
Compact and high-capacity mSATA SSD supported
IP 64 compliant front panel
HD Video Playback
Integrated Full HD video decode: , WMV9/AVC/VC1/MPEG2
Second display with touch function through the VGA connection

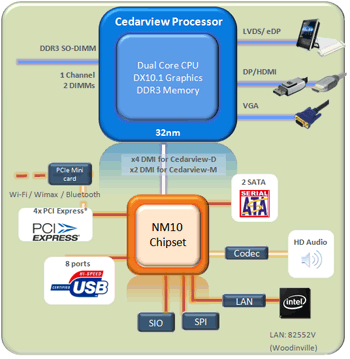

Easy to Upgrade to Dual Core Performance and Get More Power Efficiency

Keep the same size as the AFL-xxA-N270 to make it easier to upgrade your system to dual core performance and reduce 30%~35% of power consumption!
Function and Performance Upgrade:
  AFL-xxA-N270 AFL-xxA-N26
Platform
Processor (TDP) N270 (3.5W) N2600 (2.5W)
Chipset (TDP) ICH7+945GSE (9.3W) NM10 (2.1W)
# of Cores Single core Dual core
# of Threads 2 4
Clock Speed 1.6GHz 1.6GHz
L2 Cache 512 KB 1MB
Lithography 45nm 32nm
System
Second Display N/A VGA
Wireless 1T1R 802.11b/g/n 2T2R 802.11b/g/n
SSD CF Type II mSATA
RAM 1GB DDR2 2GB DDR3
Power Input 12V DC Jack 9-28V Lockable DC Jack
Fully Capable to Play Full HD Videos

The new AFL-xxA-N26 series integrates Intel® GMA 3600 graphics core running at 400 MHz, Direct X10.1 compatible and supports H.264, WMV9/AVC/VC 1/MPEG2 HW decoder allowing fluent video playback with lower CPU utilization.

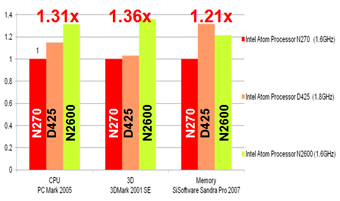

N2600 CPU performance is 31% better than N270 ,praphics performance is 36% better than N270,
memory performance is 21% better than N270

Media Format Luna Pier Cedar Trail
AVC/ H.264 SW (3rd party decoder) HW
VC1/ WMV9 SW (3rd party decoder) HW
HW acceleration for  MPEG2 HW HW

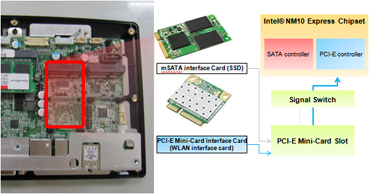

  PCIe Mini Card Slot Compatible with mSATA and PCIe Mini Devices


IEI patented PCIe mini interface provides PCIe
x 1 and SATA signals such as PCIe mini SSD and wireless LAN card for full-size or half-size devices!

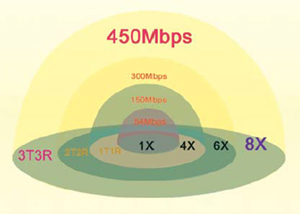

Enhanced 2T2R MIMO Technology

Pre-installed 2T2R wireless module
supports up to 300Mbps!

MIMO increases both the range and throughput of a wireless network by utilizing multiple wireless antennas in tandem to transmit and receive data. The number of antennas are for MIMO, but the number of streams the chipset can use determine the "XTXR" factor.

T: Transmitter
R: Receiver

  RT5392 RT3090
Standards IEEE 802.11b/g/n IEEE 802.11b/g/n
Rate 300 Mbps 150 Mbps
Frequency Rate 2.4GHz 2.4GHz
Receiver Sensitivity 802.11b: at 11Mbps
802.11g: at 54Mbps
802.11n: at 300 Mbps
Multiple Monitor Support

The AFL-xxA-N26 series features an external VGA port for connecting to a second display that also supports touch function.
*second touch function only operates in AFL-07M/R, AFL-08M/R, AFL-10M/R, and AFL-12M/R models Touch Calibration for Multiple Monitors through Touch Driver

POS System Digital Signage System Car Entertainment System

9-28V DC Input Ideal for Vehicle/Automation Applications

Power supply requirement varies from applications. Incorrect voltage input will damage electronic components thus cause system break down. To eliminate time and repair cost from downtime, AFL-xxA-N26 series offers wide voltage power input, which fits different application scenarios and increase stability of the system.

Optional: DC jack  to 2-pin terminal block transfer cable 32002-005500-100-RS Application: Factory automatiom
  Specifications

Model   AFL-W07A-N26 AFL-08A-N26
LCD Size 7” 8.4”
Max Resolution 800 x 480 800 x 600
Brightness (cd/m²) 500 450
Contrast Ratio 400:1 600:1
LCD Color 262K 262K
Pixel Pitch (mm) 0.0635 (H) x 0.1905 (V) 0.213 (H) x 0.213 (V)
Viewing Angle (H-V) 140º / 110º 160º / 140º
Backlight MTBF 50000 hrs (LED Backlight) 50000 hrs (LED Backlight)
CPU Intel® Atom™ N2600 dual core 1.6 GHz CPU
Chipset Intel® NM10
RAM One 800 MHz 204-pin DDR3 SO-DIMM slot(max. 2G) pre-installed wiith 2GB
I/O Ports 1 x 9-28V Lockable DC Jack
1 x RJ45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
Storage mSATA mSATA
Watchdog Timer Software programmable supports 1~255 sec. system reset
Audio AMP 2W + 2W (internal speaker)
Wireless Connection 1 x Wireless LAN 802.11 b/g/n 2T2R Module
(internal PCIe Mini card interface)
Construction Front Panel ABS + PC Plastic front frame
LED Function 1 x LED on front panel for power on/off 1 x Power on/off LED on front panel
Mounting Panel, Wall, Rack, Stand or Arm mounting VESA 75mm x 75mm Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm
Front Panel Color Gray 7539U
Dimensions
(WxHxD)(mm)
226 x 140 x 41 234 x 184 x 42
Operation Temperature(°C ) -10°C ~50°C
Storage Temperayure
(°C )
-20°C ~ 60°C
N/G Weight 0.6 Kg 0.8 Kg
IP Level Front Frame IP64
Safety & EMC CE / FCC
Touch Screen 4-Wire Resistive Type (touch controller IC is on board)
Power Adapter P/N: 63000-FSP036RAB610-RS
36W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement 9-28V DC


Model   AFL-10A-N26 AFL-12A-N26
LCD Size 10.4” 12.1”
Max Resolution 800 x 480 1024 x 768
Brightness (cd/m²) 400 500
Contrast Ratio 700:1
LCD Color 262K
Pixel Pitch (mm) 0.264 (H) x 0.264 (V) 0.240 (H) x 0.240 (V)
Viewing Angle (H-V) 160° / 140° 160° / 160°
Backlight MTBF 50000 hrs (LED Backlight)
CPU Intel® Atom™ N2600 dual core 1.6 GHz CPU
Chipset Intel® NM10
RAM One 800 MHz 204-pin DDR3 SO-DIMM slot(max. 2G) pre-installed wiith 2GB
I/O Ports 1 x 9-28V Lockable DC Jack
1 x RJ45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
2 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
1 x 9-28V Lockable DC Jack
1 x RJ45 for RS-232
1 x RS-232/422/485
1 x VGA
2 x GbE LAN
4 x USB 2.0
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Line out
Storage mSATA
Watchdog Timer Software programmable supports 1~255 sec. system reset
Audio AMP 2W + 2W (internal speaker)
Wireless Connection 1 x Wireless LAN 802.11 b/g/n 2T2R Module
(internal PCIe Mini card interface)
Construction Front Panel ABS + PC Plastic front frame
LED Function 1 x LED on front panel for power on/off 1 x Power on/off LED on front panel
Mounting Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
