AFL2-08A-N26

Features
Better Efficiency with Intel® Atom™ N2600 Dual Core Processor
Seamless IP 64 Flat-Bezel LED Panel Wide Range Power Input : 9~36V DC
Optional EM/Mifare Card Reader
PCIe mini IEEE 802.11 b/g/n 2T2R wireless module
Latest Display Technology : Display Port Specifications
Dimensions Ordering Information
Options Packing List

   Features


Flat-bezel LCD with LED backlight
Intel® Atom™ N2600 dual core 1.6 GHz processor
One 800 MHz 204-pin DDR3 SO-DIMM slot (system max. 2GB) pre-installed with 2GB memory
5-wire resistive type touch screen supported
Power requirement : 9~36V DC
Fanless system
Wi-Fi 802.11b/g/n 2T2R high speed wireless
EM or Mifare RFID reader
Built-in two 0.8W speakers and microphone
IP 64 compliant front panel
Auto dimming control

   Better Efficiency with Intel® Atom™ N2600 Dual Core Processor


AFL2-xxA-N26 new series integrates with Intel dual core running at 800 MHz DDR3 capability for processor running fast. Attached with Fanless system to reduce noise and unable to stuck dust on the fan in lower CPU utilization.


Intel® Atom™ Processor
Fanless

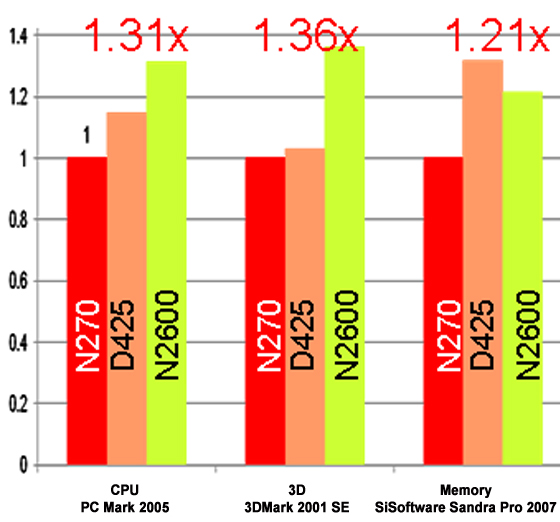

High Performance
‧N2600 CPU Performance is 31% better than N270 performance
‧Graphics performance is 36% better than N270 performance
‧Memory performance is 21% better than N270 performance

   Seamless IP 64 Flat-Bezel LED Panel




Rugged and flat screen
The AFOLUX GEN II series’ flat-bezel design, which is thinner than before and no bezel needed, makes it look more stylish and is free from cleaning dust cumulated on the bezel. The IP 64 compliant screen is water and dust resistant, ensuring flawless operation. The AFOLUX GEN II is also upgraded to a LED panel. The AFOLUX GEN II benefits from the advantages of the LED panel’s thin depth and becomes thinner and stronger.

Flat-bezel Features:
‧Better visual effects
‧No edge effect
‧Sleek and stylish
‧Easy to clean

   Wide Range Power Input : 9~36V DC




Power supply requirement varies from applications. Incorrect voltage input will damage electronic components thus cause system break down. The AFOLUX GEN II series offers wide voltage power input, which fits different application scenarios and increases system stability.

Applications
Wide Range 9~36V DC input
Wide range DC input fits different power sources.
Automation Central Control Factory Manufacturing Control Truck Control (24V)

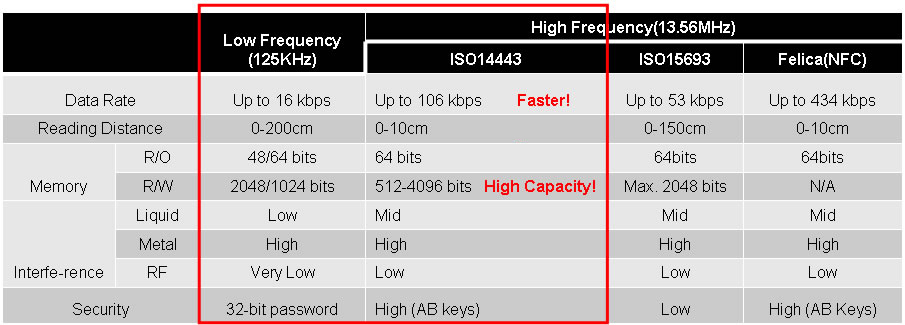

   Optional EM/Mifare Card Reader


EM card reader(125KHz):

is called an ID card , card information can’t
be re-written  and it’s fixed. EM card provides various data transmission rate and data encoding .


Mifare card reader(13.56MHz):

It is called an IC card and can be used to read and save the data information to implement certain data transmission. Mifare card can be modified and support password protected for higher security.

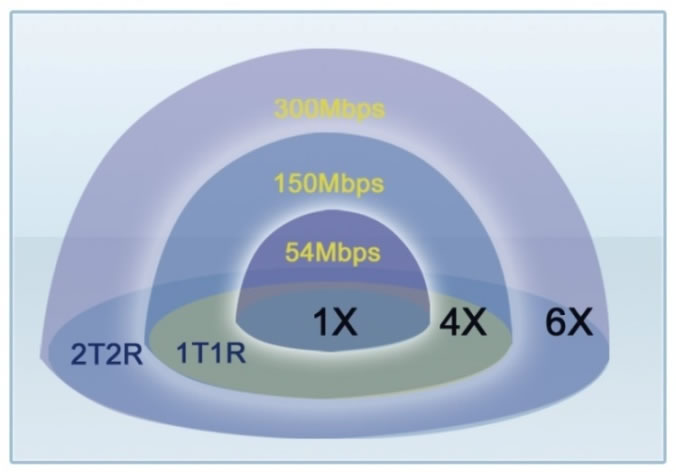

   PCIe mini IEEE 802.11 b/g/n 2T2R wireless module


802.11 b/g/n  2T2R
This series provide 2T2R for transferring wider range and faster speed rate, which depands on how many antennas are for MIMO.


T: Transmitter    R: Receiver

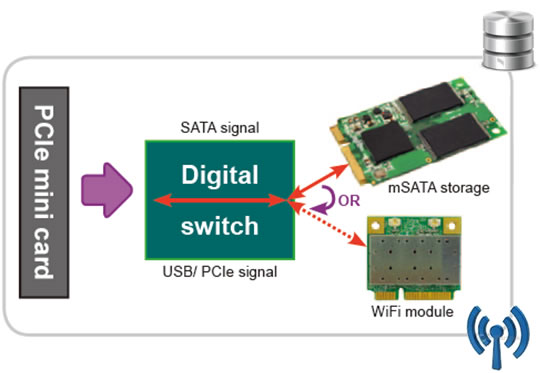

PCIe mini interface provides either SATA signals such as mSATA storage or WIFI module for full-size or half-size devices.

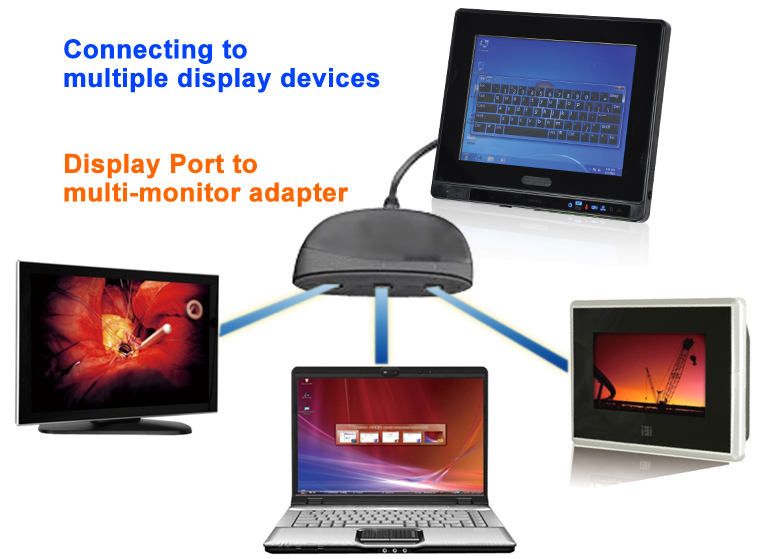

   Latest Display Technology : Display Port


AFL GEN Ⅱ supports latest display technology : DisplayPort. It is a digital display interface developed by the Video Electronics Standards Association (VESA). It’s not only used to connect a video source to a display device, but also be used to transmit audio, USB, and other forms of data.

Advantages
•Two-way audio transmission
•Support Multi-Display simultaneously : It can be Monitor 、Notebook、 All-In-One computer.

   Specifications




  Model   AFL2-08A-N26
LCD Specifications Size 8''
Resolution 800 (W) x 600 (H)
Brightness (cd/m²) 250 cd/m²
Contrast Ratio 500:1
LCD Color 16.2 M
Pixel Pitch (mm) 0.2025(H) x 0.2025(V)
Viewing Angle (H-V) 140°(H) / 130°(V)
Backlight MTBF 30000 hrs
System CPU Intel® Atom™ N2600 dual core 1.6 GHz
Chipset Intel® NM10
RAM One  800 MHz 204-pin DDR3 SO-DIMM slot (max. 2 GB) pre-installed with 2 GB
Ethernet Realtek RTL8111E PCIe GbE controller supporting AS F2.0
SSD mSATA
Input / Output  1 x Mini USB 2.0 port on front panel
1 x microSD card slot on front panel
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x DC input jack
Other Features Audio AMP 0.8 W + 0.8 W
Microphone Digital microphone
RFID Reader EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR Card Reader MSR card reader (optional)
OSD Function LCD on/off, brightness up/down, volume up/down,hotkey
Ambient Light Sensor Yes
Infrared Remote Controller Yes
Touchscreen 5-wire resistive type
System Cooling Fanless
Wireless 1 x Wireless LAN 802.11b/g/n 2T2R module
(internal PCIe Mini card interface)
(optional, internal USB interface, Bluetooth V2.0+EDR)
Physical Construction Front Panel PC + ABS plastic front frame
Mounting Wall, panel, stand and VESA 75 mm x 75 mm
Color Black
Dimensions (mm) 215 (W) x 188 (H) x 46 (D)
Weight (N/G) 1.43 kg / 2.2 kg
Environment Operating Temperature (°C) (Ambient with air flow) -20°C ~ 40°C
Storage Temperature (°C)  -20°C ~ 60°C
Humidity 10% to 95% (non-condensing)
IP Level Front panel IP 64
Safety & EMC CE / FCC
Power Power Supply 36W power adapter (Input: 90VAC~264VAC, 50/60 Hz; Output: 12VDC)
Power Requirement 9~36V DC
Power Consumption 19V@1.1A (Intel® Atom™ N2600 CPU with 2 GB DDR3 memory)

   Dimensions







   Ordering Information




Part Number Description
AFL2-08A-N26/R/2G-R10 8" 250 cd/m² SVGA fanless panel PC with Intel® Atom™ cedarview N2600 dual core 1.6GHz, 802.11b/g/n wireless module, resistive touchscreen, microphone, 2GB DDR3 RAM, R10

   Options




Item AFL2-08A-N26
Panel Mounting Kit AFL2PK-08A
Wall Mounting Kit AFLWK-12
Rack Mounting Kit AFL2RK-08A
Stand STAND-A08/STAND-B08/STAND-C12
V-stand VSTAND-A07
Hybrid Card Reader AFL2P-07AMSI-U-R10
Magnetic Stripe Reader AFL2P-07AMSR-U-R10
Bluetooth Module Kit AFL2-BT-KIT01-R11
EM RFID Reader
