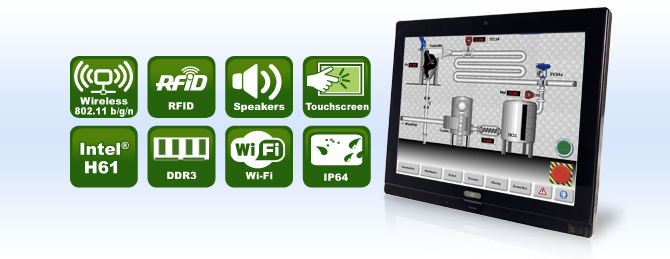

AFL2-15A-H61

Features Projective capacitive type touch screen supported
IEI's unique Light Fanless Design Specifications
Ordering Information Options Packing List

   Features

Programmable colorful LED light bar
Intel® Core™ i7/i5/i3 and Pentium® processor
Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) pre-installed with 4GB (2GB x 2)
Projected capacitive touchscreen supported
Wi-Fi 802.11b/g/n 2T2R high speed wireless
Built-in 2M pixels webcam with AF, AE and AWB capabilities
Built-in two 2W speakers and microphone
IP64 compliant front panel
Auto dimming control
Light fanless design
K-type thermalcouple temperature sensor
Wide range 9~36 VDC input


   Projective capacitive type touch screen supported


AFL2-15A-H61 is equipped with a projected capacitive touchscreen, perfectly suited for KIOSK and outdoor digital signage environments with a tempered glass layer. It also supports Windows 7 multi-touch function compatible with glove-wearing users and enhancing ease-of-use.

Type Resistive Capacitive
5-wire Projected capacitive
Input Method Hand or Stylus Hand or Stylus
Glove Yes Yes
Single/Multi-touch Single Multi
Hardness 3H 6H
Transparency 78% 85%

   IEI's unique Light Fanless Design



AFL2-15A-H61 with highly effective Light Fanless system.  It provides stable fanless running system and strengthens the system protection. Embedded smart sensor can test the ambient temperature automatically, user can supervise the information of CPU and fan speed directly. For example, it can be used in high performance and silent both in need situation, such as: multimedia platform next to patient bedside, gaming, airport kiosk, restaurant ordering system.


   Specifications




Model   AFL2-15A-H61
LCD Specifications Size 15″ (4:3)
Resolution 1024 (W) x 768 (H)
Brightness (cd/m²) 400
Contrast Ratio 700:1
LCD Color 262K/16.2M
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Viewing Angle (H-V) 160° / 140°
Backlight MTBF 50,000 hrs (LED backlight)
Touch Touch Screen projected capacitive type with USB interface
Touch Controller PenMount DMC9000 / EETI EXC7200 & EXC5404
System CPU 2nd/3rd Generation of Intel®Core™ i5/i3, and Pentium® processors
Chipset Intel® H61
RAM Support two 204-pin DDR3 SO-DIMM slot (max. 16GB) preinstalled with 4GB (2GB x 2)
Ethernet Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Audio Codec Realtek ALC892 HD audio codec
HDD CF Type II socket
CD-ROM 2.5" SATA 3Gb/s HDD bay
Input / Output

2 x RS-232 (DB-9 connector)
1 x GbE LAN (RJ-45 connector) on left side
1 x RS-422/485 (RJ-45 connector)
3 x USB 2.0 (two on the bottom, one on the left)
2 x USB 3.0
1 x Mini USB port on front panel
1 x Micro SD card slot on front panel
1 x Line out, MIC on left side
1 x VGA port
1 x HDMI port
1 x Power switch
1 x AT/ATX switch
1 x Reset button
1 x Clear CMOS button
1 x 9 ~ 36V DC jack
1 x K-Type connector

Expansion Interface 1 x PCIe Mini slot for Wi-Fi
1 x PCIe Mini slot reserved
Other Features Audio AMP 2W + 2W (internal speaker)
Camera 2M pixels with low light function
RFID Reader EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR Card Reader MSR card reader (optional)
TPM Reserved by pin-header
OSD Function LCD on/off, brightness up/down, volume up/down, Hot Key
Ambient Light Sensor Yes
Infrared Remote Controller Yes
LED Light Bar N/A
System Cooling Light fanless (smart fan operates above default temperature setting)
Connectivity Wireless IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10)
Bluetooth Bluetooth V2.0+EDR with USB interface (optional)
Physical Construction Front Panel PC + ABS Plastic
Mounting Wall, Stand, Arm VESA 100mm x 100mm
Color Black
Dimensions (mm) 363.2 x 305.1 x 58.8
Weight (N/G) 5.2 kg / 7.3 kg
Environment Operating Temperature (°C)
(Ambient with air flow)
-20°C ~ 50°C
Storage Temperature (°C) -20°C ~ 60°C
Humidity 10% to 95% (non-condensing)
IP Level IP 64 compliant front panel
Safety&EMC CE / FCC
Power Power Supply 90W power adapter
Input:100 V AC ~ 240 V AC, 50 / 60Hz, Output: 19 V DC
Power Requirement 9 ~ 36 VDC
Power Consumption 19V@3.42A
(Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz DDR3 memory)

   Ordering Information




  Model Description
Core i5 AFL2-15A-H61-i5/R-R11 15" 400cd/m² XGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module,
resistive touch screen,1.3M camera, microphone, R11
AFL2-15A-H61-i5/PC-R11 15" 400cd/m² XGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module,
projected capacitive touchscreen,1.3M camera, microphone, R11
Core i3 AFL2-15A-H61-i3/R-R11 15" 400cd/m² XGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module,
resistive touch screen,1.3M camera, microphone, R11
AFL2-15A-H61-i3/PC-R11 15" 400cd/m² XGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module,
projected capacitive touchscreen,1.3M camera, microphone, R11
Pentium AFL2-15A-H61-P/R-R11 15" 400cd/m² XGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module,
resistive touch screen,1.3M camera, microphone, R11
AFL2-15A-H61-P/PC-R11 15" 400cd/m² XGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module,
projected capacitive touchscreen,1.3M camera, microphone, R11

   Options




Item AFL2-15A-H61
Panel Mounting Kit N/A
Wall Mounting Kit AFLWK-19/AFLWK-19B
Rack Mounting Kit N/A
Arm ARM-11-RS/ARM-31-RS
Stand STAND-A19/ STAND-B19/ STAND-C19/ STAND-210-R11
Hybrid Card Reader AFL2P-15AMSI-U-R10
Magnetic Stripe Reader AFL2P-15AMSR-U-R10
Bluetooth Module Kit AFL2-BT-KIT01-R11
Trusted Platform Module (TPM) TPM-IN01-R11
EM RFID Reader AFL2-EM-RFID-KIT01-R10
Mifare RFID Reader AFL2-MF-RFID-KIT02-R10
OS: Win XPE (2GB CF Card) AFL2CF-15A-H61-XPE-2G-R10
OS: Win XPE (4GB CF Card) AFL2CF-15A-H61-XPE-4G-R10
OS: Linux (2GB CF Card) AFL2CF-15A-H61-LNX-2G-R10
OS: Win 7 Embedded (4GB CF Card) AFL2CF-15A-H61-WES7P-4G-R10 (for Projected Capacitive Touch)

   Packing List




Item P/N Q'ty Description
Utility CD   1 drivers and user manual
One Key Recovery CD   1
Power Adapter 63040-010090-020-RS 1 FSP090-D2BA1; 90~264VAC input; 90W; 19VDC output
Power Cord 32702-000401-100-RS 1 European, 1500mm
Power Transfer Cord 32702-000300-100-RS 1
RJ-45 to DB-9 COM Port Cable 32005-000200-200-RS 1
IR Remote Controller 7Z000-SLPCB005-RS 1
M3 Screw Pack 44013-030041-RS 4 M3 x 4 for securing HDD
M4 Screw Pack 44033-040061-RS 4 M4 x 4 for VESA screw
Temperature Sensor Cable 32133-004300-100-RS 1
