IEI Launches PCIE-Q370 Full-size PICMG 1.3 CPU Card Supports LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor
IEI Product News


dot Features dot Specifications dot Dimension
dot Ordering Information dot Packing List
arrow PICMG 1.3 full-size CPU card
arrow LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor supported
arrow Dual-channel DDR4 2666MHz
arrow Support VGA display
arrow Intel® PCIe GbE with Intel® AMT 11.0 supported

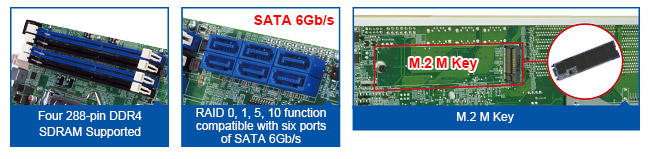

arrow Support M.2 M key for storage (PCIe x4)
arrow Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s

Model PCIE-Q370
CPU LGA1151 socket supports 8th generation Intel® Core® i7/i5/i3, Pentium® or Celeron® processor
Chipset Intel® Q370
Memory Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB
Graphic Engine Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0
Display Output 1 x VGA (up to 1920x1200@60 Hz)
Ethernet LAN1: Intel® I219LM PHY
LAN2: Intel® I211-AT PCIe controller (Co-lay I210-AT)
External I/O Interface 2 x USB 3.0 (Rear IO type A)
1 x USB 2.0 (Type A 180°)
Internal I/O Interface 1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
Audio Support 7.1 channel HD audio by IEI AC-KIT-892HD kit
Front Panel 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
LAN LED 2 x LAN LED (1x2 pin)
TPM 1 x TPM (2x10 pin)
SMBus 1 x SMBus (1x4 pin)
I2C 1 x I2C (1x4 pin)
Expansion 1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger
Watchdog Timer Software programmable support 1~255 sec. system reset
Digital I/O 8-bit digital I/O (2x5 pin)
Fan Connector 1 x CPU smart fan (1x4 pin)
1 x System smart fan (1x4 pin)
Power Supply AT/ATX power supply
Support AT/ATX mode
ErP/EuP Compliant
Power Consumption TBD
Operating Temperature -20°C ~ 60°C
Operating Humidity 5% ~ 95%, non-condensing

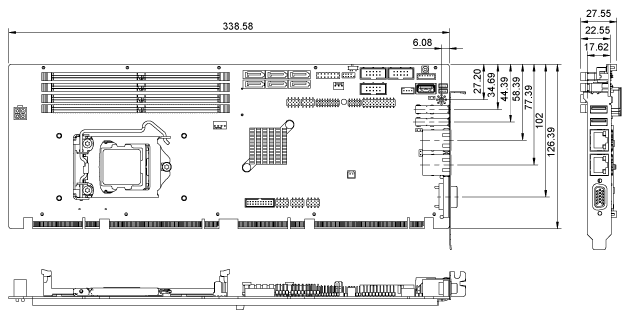

Dimensions 185 mm x 122 mm
Weight GW: 1000g / NW: 500g
CE/FCC compliant

Ordering Information
Part No. Description
PCIE-Q370-R10 Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, PCIe mini, HD Audio, iAMT and RoHS
19800-000075-RS PS/2 KB/MS cable with bracket, 220mm, P=2.0
32102-000100-200-RS SATA power cable, MOLEX 5264-4P to SATA15P
AC-KIT-892HD-R10 7.1 channel HD Audio kit with Realtek ALC892 support dual audio streams
CF-1150SA-R10 Special cooler kit for LGA1150, High-performance compatible, 95W
CF-1150SB-R11 Special cooler kit for LGA1150, High-performance compatible, 65W
CF-1150SC-R20 Special cooler kit for LGA1150, 1U chassis compatible, 65W
CF-1150SE-R11 Special cooler kit for LGA1150, high-performance compatible, 95W
CF-1150SF-R10 Special cooler kit for LGA1150, 1U chassis compatible, 54W
SAIDE-KIT01-R10 SATA to IDE/CF Converter board

Packing List
1 x PCIE-Q370-R10 single board computer 1 x SATA cable
1 x Mini jumper pack 1 x QIG (Quick Installation Guide)
