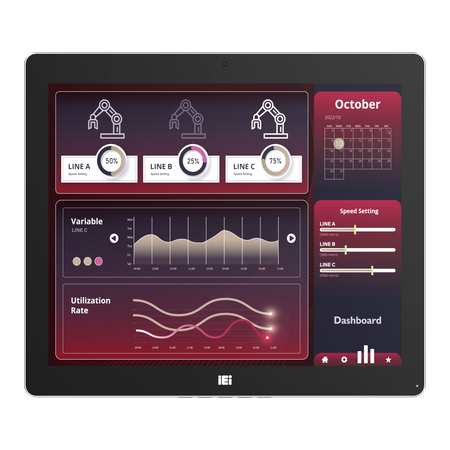

| AURA-170-MTL |
|
CPU |
Intel® Core™ Ultra processors (Series 1)
Intel® Core™ Ultra 7 Processor 155U
Intel® Core™ Ultra 5 Processor 125U
|
|
Storage |
1 x 2.5” SATA 6Gb/s SSD bay
1 x Onboard NVMe (optional,MOQ required)
|
|
Ethernet |
LAN1: Intel® I226LM 2.5GbE controller
LAN2: Intel® I226V 2.5GbE controller
|
|
Expansion |
1 x 2230 E-key (PCIe Gen3 x 1 / USB2.0)
1 x 2280 M-key (PCIe Gen4 x 4)
1 x 3042/3052 B-key (PCIe Gen3 x 1 / USB3.2 Gen1 / USB2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key
|
|
Input |
10-28V DC
|
|
Operating Temperature |
-20°C ~ 60°C
|
|
Safety & EMC |
CE, FCC
|
|
Humidity |
10% to 90%@40°C (non-condensing) (50%@50°C)
|
|
Storage Temperature |
-20°C ~ 70°C
|
|
Color |
Black
|
|
Mounting |
Panel Mount, Rack Mount, VESA 100 x 100
|
|
Dimensions (LxWxH) (mm) |
385.60 x 331.60 x 58.80
|
|
Size |
17”
|
|
Resolution |
1280 x 1024(5:4)
|
|
Brightness (cd/m2) |
350
|
|
Contrast Ratio |
800: 1
|
|
LCD Color |
16.7M
|
|
Viewing Angle (H-V) |
160°/140°
|
|
Backlight MTBF |
50000
|
|
Touch Screen |
PCAP with USB interface (anti-UV/AG coating)
|
|
Touch Controller |
Capacitive: ilitek ILI2521
|
|
IP Level |
IP 65 compliant front panel
|
|
Audio |
1 x Mic
1 x Line-out
2 x internal 2W speaker
|
|
Camera |
720P Wide Angle Fixed Focus
|
|
I/O Ports and Switches |
1 x HDMI 1.4 (4K@30)
1 x USB Type-C (USB3.2 Gen2 & Display port)
2 x RS232/422/485 (DB9)
3 x USB 3.2 Gen2 Type-A
2 x USB2.0 Type-A
1 x 3-pin terminal block
1 x Power button
1 x ATX Switch
1 x Clear CMOS
|
|
Function Key |
5-key Hot Key
|
|
On-board Memory |
Two 262-pin 5600 MT/s dual-channel DDR5 SO-DIMM (16GB pre-installed) (up to 96GB)
|
