| HTB-300-MTL-H |
|
Processor |
Intel® Core™ Ultra 5-125H/ Ultra 7-155H processor
|
|
Supported OS |
Windows 11, Linux Ubuntu
|
|
Ethernet Controller |
Intel® I226-V
|
|
Wi-Fi |
IEEE 802.11 be, Intel® Wi-Fi 7 BE200 (optional)
|
|
Bluetooth |
Bluetooth V5.4 (optional)
|
|
Storage |
2 x M.2 2280 PCIe Gen4 x4 M-key slots (optional, supoorts RAID)
|
|
RAM |
2 x 262-pin 5600MT/s dual-channel DDR5 SO-DIMM slots (system max. 64GB)
|
|
Expansion Slots |
2 x M.2 2280 PCIe Gen4 x4 M-key slots for SSD
1 x M.2 2230 E Key slot (for Wi-Fi; PCIe/USB)
1 x MXM 3.1 Type A slot (signal PCIe Gen5 x8)
1 x PCIe Gen4 x4 slot (support Capture card)
|
|
Audio |
1 x 3.5mm Mic in & Audio out
|
|
Speaker |
1 x 3W speaker
|
|

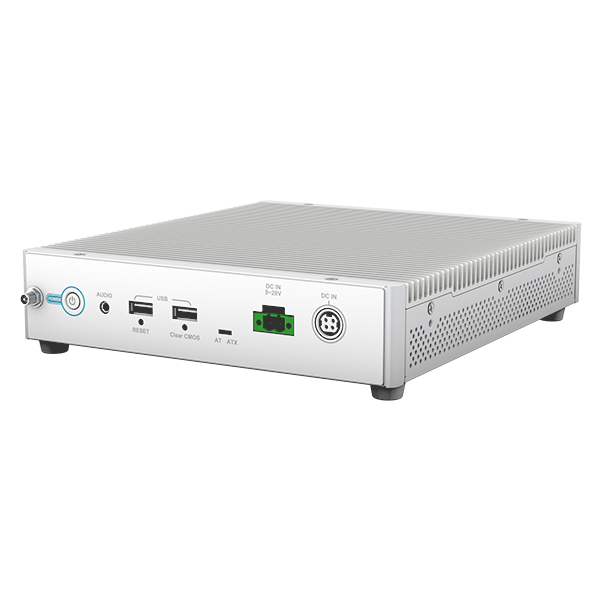

Front I/O |
1 x 19V DC-in
1 x 3.5mm Mic in & Audio out
1 x Terminal Block (DC IN)
2 x USB 2.0 Type-A
|
|
Rear I/O |
1 x HDMI output 2.1
1 x USB 3.2 Gen 2 Type-C (DP1.2 + USB 5V/3A)
2 x 2.5GbE LAN
4 x USB 3.2 Gen 2 Type-A
4 x RS-232
|
|
Buttons |
1 x System power on/off button (with power LED)
1 x Clear CMOS
1 x AT/ATX switch
1 x Reset
|
|
Color |
White
|
|
Thermal |
Fanless
|
|
Chassis Construction |
NCT(N), SECC
|
|
Construction Material |
Aluminum
|
|
Mounting |
Wall, Stand and Arm
VESA 75/100 compliant
Din Rail mount
|
|
Weight (Net) (kg) |
2.04
|
|
Weight (Gross) (kg) |
4.26
|
|
Dimensions (LxWxH) (mm) |
232 x 202 x 43.5 (Standard)
232 x 202 x 66.5 (MXM or Riser Card)
|
|
Input |
Terminal block 9-28V DC-in
|
|
Power Adapter |
19V DC-in, 120W medical power adapter
|
|
Operating Temperature |
0°C – 40°C
|
|
Storage Temperature |
-20°C – 60°C
|
|
Humidity |
10% – 95% (non-condensing)
|
|
Vibration |
1G
|
|
Operating Shock |
5G peak acceleration (11ms duration)
|
|
Non-operating shock |
15G peak acceleration (11ms duration)
|
|
Safety & EMC |
CE, FCC Class B Part18
UL 60601-1
IEC/EN 60601-1: 2005+AMD1:2012 (Edition 3.2)
IEC/EN 60601-1-2 (Edition 4.1)
|
