IEI 推出最新超薄 LCD Kit 系列!! 满足您各种需求!!




LCD-KIT-F Series

支持宽温
超薄设计
支持灵活的安装方式
无尘室
多种可选触摸屏和电源

规格 尺寸 订购信息 可选配件 包装清单

   支持宽温


支持 -20°C~60°C 宽温操作,适用于户外或半户外应用


   超薄设计


超薄设计,比 LCD-KIT 系列薄 20%


   支持灵活的安装方式



   无尘室


The LCD-KIT-F 系列可与触摸屏粘合或分离。空气式粘合技术将应用于 Air Bonding 电阻式或电容式触摸屏。

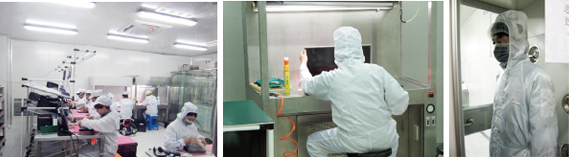

IEI 集团拥有通过 ISO 认证的 10,000 级 LCD 无尘室。该无尘室为我们的产品带来附加值,提高成本效益和产品质量。

控制室颗粒测量结果:Class 10000

   各种可选触摸屏和电源


为了保持前面板的干净整洁,DM-F 系列的薄膜键盘位于后面板上,以防设置被意外更改。

生产线 LCD-KIF-F 系列
LCD 尺寸 12.1”~19”
输入信号接口 VGA+DVI-D
亮度 (cd/m²) 350~600
DC 输入 12VDC or 9~36VDC
触摸屏 Resistive touch screen /Resistive touch window/ PCAP touch screen
IEI 智能 OSD Yes

   规格

型号 LCD-KIT-F12A LCD-KIT-F15A LCD-KIT-F17A LCD-KIT-F19A
LCD 尺寸 12.1” 15” 17” 19”
最大分辨率 1024 x 768 1024 x 768 1280 x 1024 1280 x 1024
亮度 (cd/m²) 600 450 350 350
对比度 700:1 800:1 800:1 1000:1
显示色彩 16.2M 16.2M 16.7M 16.7M
像素间距 (mm) 0.24 0.297 0.264 0.294
可视角度 (H/V) 160°/140° 160°/150° 170°/160° 170°/160°
输入接口 Analog VGA, DVI-D, RS-232/USB (Optional for Touch)
触摸屏 & 控制器 Resistive type 5-wire single touch / Penmount 6000 or Projected capacitive 2-point touch / EETI EXC7200 (Assembly by adhesive tape)
OSD 功能 5-key OSD
智能 OSD Yes
尺寸 (W x H x D) (mm) 323.8 x 263.8 x 40.3 380.1 x 304.6 x 43.2 410 x 343 x 49.4 449 x 374 x 49.45
工作温度 -20°C~60°C
存储温度 -20°C~70°C
输入电压 12VDC
材质 Sheet metal rear cover SPCC
安装方式 Panel Mount, Rear Mount, VESA 100

    I/O 接口




   尺寸




---------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------


   订购信息


料号 描述
LCD-KIT-F12A-R10 12.1" 600 cd/m² XGA open frame monitor, VGA and DVI-D input, R10
LCD-KIT-F15A-R10 15" 450 cd/m² XGA open frame monitor, VGA and DVI-D input, R10
LCD-KIT-F17A-R10 17" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, R10
LCD-KIT-F19A-R10 19" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, R10

  Resistive Touch
料号 描述
LCD-KIT-F12A/R-R10 12.1" 600 cd/m² XGA open frame monitor, VGA and DVI-D input, Resistive touch screen RS-232/USB interface,R10
LCD-KIT-F15A/R-R10 15" 450 cd/m² XGA open frame monitor, VGA and DVI-D input, Resistive touch screen RS-232/USB interface,R10
LCD-KIT-F17A/R-R10 17" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Resistive touch screen RS-232/USB interface,R10
LCD-KIT-F19A/R-R10 19" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Resistive touch screen RS-232/USB interface,R10

  Flat Resistive Touch
料号 描述
LCD-KIT-F12A/TW-R10 12.1" 600 cd/m² XGA open frame monitor, VGA and DVI-D input, Resistive touch window RS-232/USB interface,R10
LCD-KIT-F15A/TW-R10 15" 450 cd/m² XGA open frame monitor, VGA and DVI-D input, Resistive touch window RS-232/USB interface,R10
LCD-KIT-F17A/TW-R10 17" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Resistive touch window RS-232/USB interface,R10
LCD-KIT-F19A/TW-R10 19" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Resistive touch window RS-232/USB interface,R10

  Flat P-CAP Touch
料号 描述
LCD-KIT-F12A/PC-R10 12.1" 600 cd/m² XGA open frame monitor, VGA and DVI-D input, Projected capacitive touch window USB interface,R10
LCD-KIT-F15A/PC-R10 15" 450 cd/m² XGA open frame monitor, VGA and DVI-D input, Projected capacitive touch window USB interface,R10
LCD-KIT-F17A/PC-R10 17" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Projected capacitive touch window USB interface,R10
LCD-KIT-F19A/PC-R10 19" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Projected capacitive touch window USB interface,R10

  9~36VDC Module
料号 描述
LCD-KIT-F-936160-R10 60W DC/DC 9~36V input 12V output power kit, R10

   可选配件

名称 料号
RS-232 cable (for Touch) 32005-001100-200-RS
DVI cable 32000-086600-RS
Panel mount kit FPK-01-R10 (LCD-KIT-F-12A/LCD-KIT-F-15A)
Panel Mount Kit FPK-02-R10 (LCD-KIT-F-17A/LCD-KIT-F-19A)


   包装清单

名称 料号 数量
AC power cable   1
VGA cable 32000-036200-RS 1
USB cable (for Touch) 32001-006100-200-RS 1
AC power adapter 63040-010036-121-RS 1
Utility CD
