IEI Launchs the New Generation Data Collector - MODAT-550A
IEI Product News

modat-550A-data-collector

dot Specifications dot I/O Interface
dot Ordering Information dot Optional Accessory List
dot Packing List dot Cradle Specification



modat-550a-data-collector-features
arrow 1.5m drop survival and IP 65 protection
arrow Octa-core 64-bit Cortex-A53 1.5 GHz processor
arrow 5.5” display PDA
arrow Optional GSM (850, 900, 1800, 1900)
WCDMA (Band 1, 2, 5, 8)
TDS-CDMA (Band 34, 39)
LTE FDD (Band 1, 2, 3, 4, 5, 7, 8, 20)
TDD (Band 38, 39, 40, 41b)
arrow Micro USB port and microSD card slot (max. 64 GB) for maximum connectivity
arrow Android 7.0 OS
arrow 1D/2D imager scan engine
arrow NFC (device to device communication, card reader)

Specifications

Model MODAT-550A-OA53-R10 MODAT-550A-OA53-ET-R10
Display LCD size 5.5”
Brightness (cd/m²) 300 cd/m²
Max. Resolution 1080 x 1920 (Full HD)
Viewing Angle 80/80/80/80 Deg.
Touchscreen 5-point capacitive
System CPU Octa-core 64-bit Cortex-A53 1.5 GHz processor
Operating System Android 7.0
Memory 16GB eMMC
2GB LPDDR3
Storage microSD slot up tp 64GB
Communication Wi-Fi 802.11a/b/g/n
Bluetooth 4.0 LE
Modem (Optional) GSM (850, 900, 1800, 1900)
WCDMA (Band 1, 2, 5, 8)
TDS-CDMA (Band 34, 39)
LTE FDD (Band 1, 2, 3, 4, 5, 7, 8, 20)
TDD (Band 38, 39, 40, 41b)
GPS GPS/Glonass
Data Collection NFC Yes
Barcode 1D/2D imager scan engine N/A
Camera 13-megapixel AF rear camera
Indicators &
Buttons
LED Indicators Green/Red
I/O Interface Audio 1 x 0.5W speaker
1 x Headset/Mic-in
USB 1x High-speed Micro USB 2.0 OTG
Power Power Adapter 5V/3A
Battery 4000 mAh
Enviroments Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Humidity 10% ~ 95%, non condensing
Drop Survival 1.5m
Environmental Protection IP 65
Physical Dimensions (L x W x H) 160.9 mm x 85.4 mm x 28.85 mm
Weight Under 380g
Top

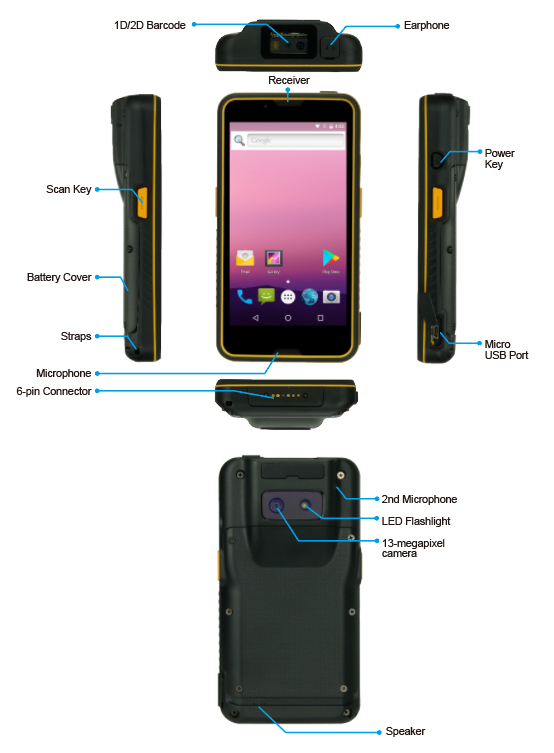

I/O Interface

modat-550a-data-collector-IO

Ordering Information
Part No. Description
MODAT-550A-OA53-R10-TW 5.5” Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, TW reg, RoHS
MODAT-550A-OA53-R10-CN 5.5” Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, CN reg, RoHS
MODAT-550A-OA53-R10-EU 5.5” Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, EU reg, RoHS
MODAT-550A-OA53-R10-US 5.5” Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, US reg, RoHS
MODAT-550A-OA53-ET-R10-TW 5.5” Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, TW reg, RoHS
MODAT-550A-OA53-ET-R10-CN 5.5” Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, CN reg, RoHS
MODAT-550A-OA53-ET-R10-EU 5.5” Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, EU reg, RoHS
MODAT-550A-OA53-ET-R10-US 5.5” Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, US reg, RoHS
Top

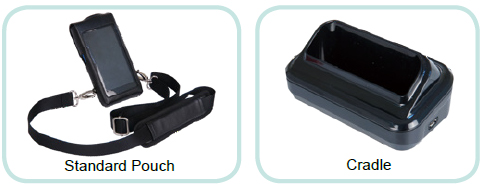

Optional Accessory List
Item Part No. Description
Cradle MODAT-531ACR01-R10 charging cradle
Standard Pouch 7Z000-MODAT531APOUCH pouch, black
Top



Packing List
Item Q’ty Description
USB Cable 1 32001-014300-100-RS
AC-DC Adapter 1 63040-480015-001-RS
Hand Strap 1 46035-000300-RS
Top



Cradle Specification
Model Description
I/O Interface DC Input charging cradle
Power Power Supply pouch, black
Environment Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Humidity 10% ~ 95% non condensing
Physical Characteristics Dimensions (LxWxH) (mm) 115.0 x 66.0 x 50.4
Weight 194 g

modat-550a-data-collector-Cradle-Specification
