IEI Launches Flex Series AI Ready Modular Box PC
|
|
|
|
|
|
IEI AI Ready Solution Accelerates Your AI Initiative
The FLEX-BX200 is an AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business. IEI’s FLEX-BX200 supports graphics cards, Intel FPGA acceleration cards, and Intel VPU acceleration cards, and provides additional computational power plus end-to-end solution to run your tasks more efficiently. With the NVIDIA TensorRT, QNAP QuAI, and Intel OpenVINO AI development toolkit, it can help you deploy your solutions faster than ever.
|
|
8th Generation Intel® Core™ Desktop Processors
 |

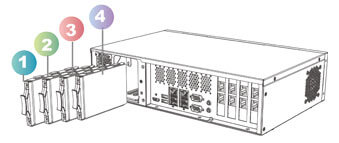

4-Bay Hot Swappable HDD RAID 0/1/5/10 Protection
The FLEX series offers four 2.5”HDD bays with high speed SATA 6Gb/s interface that can expand storage capabilities and enable fast data transfers. The equipped Intel Q370 chipset provides reliable and high performance hardware RAID protection to back-up your media and critical information. You can configure the RAID 0/1/5/10 from the BIOS menu to increase performance and/or provide automatic protection against data loss from drive failure.
|
What type of RAID do I need?
● RAID 0 (Striping) -The highest performing level
● RAID 1 (Mirroring) - Data safety
● RAID 5 (Distributed Parity)-offers both data safety and performance
● RAID 10 (combining mirroring and striping) data safety and big data volume
|
 |
|
Four PCIe x4/x8 Low Profile Expansion Slots
The FLEX series supports multiple PCIe slots including two PCIe 3.0 x8 and two PCIe 3.0 x4 slots, which are compatible with standard low profile add-on cards, to meet different edge inference computing applications.
|
|
● High Speed: 10GbE card, fiber network card
● I/O card: Serial port card, USB card, LAN card, etc.
● AI accelerating card: VPU card, FPGA, GPU card, etc.
● Wireless card: Wi-Fi card, mobile wireless card, etc.
● Storage card
|
 |
Supported Cards:
|
| P/N |
QNAP QM2-2P-384 |
QNAP LAN-10G2SF-MLX |
IEI GPOE-4P-R10
IEI GPOE-2P-R10 |
IEI Mustang-V100-MX8 |
GP GPU |
GT1030/GT1050 |
| Desc. |
Dual M.2 PCIe SSD expansion card |
Dual-port 10GbE SFP + network expansion card |
4-port/2-port PoE Card |
VPU card |
Inferencing accelerator card |
GPU card |
| Form Factor / Interface |
Low-Profile PCIe 3.0 x8 |
Low-Profile PCIe 3.0 x8 |
Low-Profile PCIe x1 |
Low-Profile PCIe 2.0 x4 |
Low-Profile PCIe 3.0 x16 |
Low-Profile PCIe 3.0 x4 |
| Images |
 |
 |
 |
 |
 |
 |
|

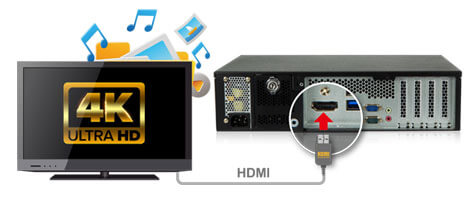

HDMI 1.4 Output Delivers 4K High Definition Video and Audio
The FLEX-BX200 integrated with Intel® Coffee Lake Desktop processor supports HDMI 1.4 output port delivering 4K 24 Hz with amazing details. And a single HDMI cable carries both video and audio signals, which makes hookup particularly easy.
|
 |
| HDMI Version |
1.4 |
| Date initially released |
6/5/09 |
| Maximum Bandwidth (Gbps) |
10.2 |
| Maximum Resolution |
4096 x 2160p24 |
| Maximum LPCM Audio Channels |
8 Channels |
| Maximum Audio Sampling Rate |
768kHz |
|

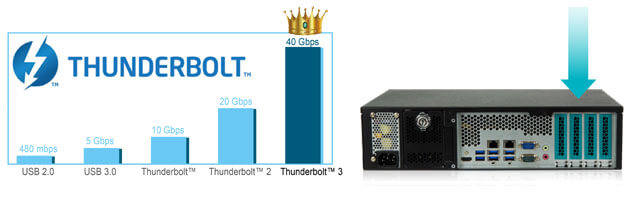

Thunderbolt™ 3 Dual Ports (optional)
|
|
The FLEX series can be built-in with IEI thunderbolt™ 3 card, the TB3-40GDP-R10, to support dual Thunderbolt 3 ports for connecting displays and USB devices and provide more speed.
How fast is it?
● 40Gpbs Thunderbolt, PCI Express Gen 3 and Display Port
● Double the speed of previous generation
● Four times the data and twice the vide bandwidth of any other cable
|
 |
| P/N |
TB3-40GDP-R10 |
| Interface |
PCIe 3.0 x4 |
| I/O ports |
2 x Thunderbolt 3 port (USB Type-C) 1 x mini-DisplayPort |
|
|
 |
Flexible Deployment
|

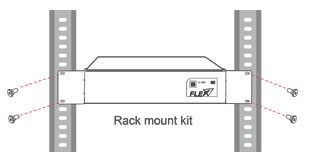

Rack Mount
The FLEX-BX200-Q370 is designed in 2U height for easy and quick installation in control cabinets.
|
 |
|
Wall Mount
The FLEX-200-Q370 wall-mountable industrial box PC provides two-way direction for wall mounting, allowing users to orient the I/O panel upwards or downwards.
|
 |
|

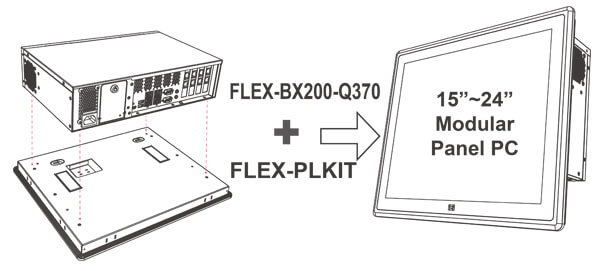

All-in-One Panel PC
The FLEX series featuring a modular design can be fitted with different sizes of panel kits to expand its capabilities.
|
|
● More than 7 SKUs provided
● Various monitor choices: 15"/15.6"/17"/18.5"/22"/24"
● PCAP touch screen
|
● 250W or 350W AC power supply
● Easy assembly and maintenance
● One stop shopping and build your own system to accelerates time to market
|
|
 |
|
|
|
 |
|
|
| Model |
FLEX-BX200-Q370 |
| System |
CPU |
8th Generation Intel® Core™ i7/i5/i3 and Pentium® processor in the LGA 1151 package |
| Chipset |
Intel® Q370 Chipset |
| Memory |
2 x 288-pin 2666/2400 MHz dual-channel DDR4 unbuffered DIMM slot supporting up to 64GB |
| Graphics Engine |
Intel® HD Graphics Gen 9 Engines with 16 low-power execution units, supports DX2015, OpenGL 5.X and OpenCL 2 x, ES 2.0 |
| Ethernet |
Intel® I211 controller |
| Storage |
4 x Accessible 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1/5/10 support) with LED indicator
2 x M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD socket |

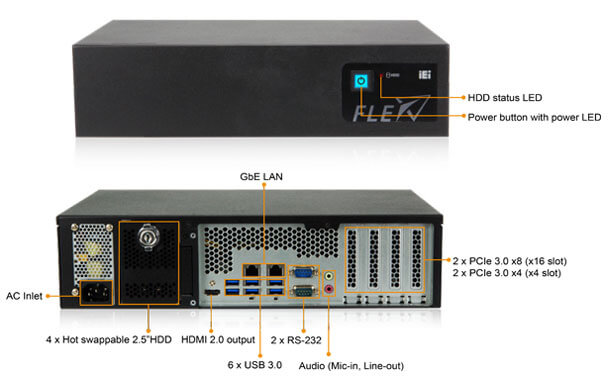

| I/O Ports and Switches |
1 x HDMI output
1 x Line out
2 x GbE LAN
1 x AC power in Inlet
6 x USB 3.0 Type-A
Power button with power LED (power on=Blue)
2 x RS-232 DB-9 type
AT/ATX mode switch
1 x Mic in
Reset button |
| Expansion Slots |
2 x PCIe 3.0 by 8 (by 16 slot)
2 x PCIe 3.0 by 4 ( maximum card size supported: 68 mm x 167 mm) |
| Power Supply |
AC input ATX power supply
1. 250W power supply
- Input: 115VAC~230VAC, 50/60Hz
- Output (max.): 3.3V@12A, 5V@14A, 12V@25A, -12V@0.3A,+5Vsb@3A
2. 350W power supply (Build to Order)
- Input: 115VAC~264VAC, 50/60Hz
- Output (max.): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A,+5Vsb@3A
-Efficiency: Full load (100%) 87%, Typical load (50%) 90%, Light load (20%) 87% |
| Watchdog Timer |
Software Programmable support 1~255 sec. system reset |
| Construction |
Chassis Construction |
Metal Housing |
| Mounting |
Wall and Rack Mount |
| Color |
Black C |
| Dimensions (LxDxH)(mm) |
357 x 230 x 88 |
| Environmental |
Operating Temperature |
-20°C ~ 50°C (with SSD and TDP 65W processor)
-20°C ~ 40°C (with HDD or add-on cards without fan) |
| Storage Temperature |
-30°C ~ 60°C |
| Operating Humidity |
5% ~95%, non-condensing |
| Vibration |
5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak |
| Shock |
10G acceleration part to part (11ms) |
| Certificate |
CE/FCC/CCC |
|
|
|
| Part No. |
Description |
| FLEX-BX200-Q370-P/25-R10 |
2U AI Modular Box PC, Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W,two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| FLEX-BX200-Q370-i3/25-R10 |
2U AI Modular Box PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| FLEX-BX200-Q370-i5/25-R10* |
2U AI Modular Box PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| FLEX-BX200-Q370-i7/25-R10* |
2U AI Modular Box PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| FLEX-BX200-Q370-P/35-R10* |
2U AI Modular Box PC, Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 350W PSU, R10 |
| FLEX-BX200-Q370-i3/35-R10* |
2U AI Modular Box PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe 4 and two PCIe x8 slots, four HDD bays, 350W PSU, R10 |
| FLEX-BX200-Q370-i5/35-R10* |
2U AI Modular Box PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 350W PSU, R10 |
| FLEX-BX200-Q370-i7/35-R10* |
2U AI Modular Box PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 350W PSU, R10 |
| DDR4-LO-4GB |
4GB DDR4 (288-pin) |
| DDR4-LO-8GB |
8GB DDR4 (288-pin) |
| HDD-25-1TB |
1TB 2.5” HDD |
*Build to order
|
|
|
|
|
|
|
