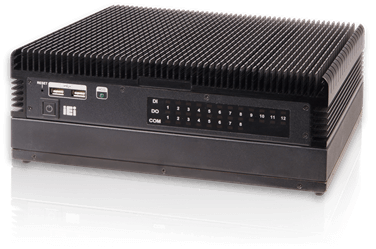

ITCS-100-H81

Toll Gate Device Control System

End of Life

End of Life Notice

* Effective Date: 2017/12/21

» Intel® Core™ i5-4570TE CPU dual-core 2.7 GHz or Intel® Celeron® Processor G1820TE dual-core 2.2 GHz
» 9~36 V DC input
» 4 x RS-232, 4 x RS-232/422/485
» 1 x VGA, 1 x DVI-D
» 2 x 3.5” SATA 6Gb/s HDD drive bay
» 24 x DIO

Hardware Spec.

Color
Color Black
Dimensions
Dimensions 310 x 112.8 x 200
Environment
Humidity 10% ~ 90%, non-condensing
Operating Temperature -20°C ~ 55°C with air flow
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini (for IVCME-C604 or E-window)
I/O Interface
I/O Ports 4 x USB 2.0
2 x RJ-45 conncetor
1 x PCIe GbE by Intel® I211AT
1 x PCIe GbE by Intel® I210AT
4 x RS-232
4 x RS-232/422/485 (SCSI type, 4 x RS-232/422/485 with isolated)
1 x D-SUB 25 pin connector
1 x KB
1 x MS
1 x Line-out
1 x Line-in
1 x 20-pin LPC
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
Indicators 1 x Software LED
1 x HDD LED
24 x DIO
8 x COM port
Physical Characteristics
Construction Extruded aluminum alloy
System
Cooling method / System Fan Fanless
Drive Bays 2 x 3.5' HDD bay SATA 6Gb/s
Weight
Weight 6.36 kg/9.2 kg

Ordering Information

ITCS-100-H81-C/4G-R10 Fanless embedded system with Intel® H81 chipset, Dual Core G1820TE Processor 2.2 GHz, TDP 35W, with 4GB DDR3L pre-installed memory, RS232/422/485, 24bit DIO, E-windows, two 3.5" removable SATA HDD bay, RoHs
ITCS-100-H81-i5/4G-R10 Fanless embedded system with Intel® H81 chipset, Dual Core i5-4570TE Processor 2.7 GHz, TDP 35W, with 4GB DDR3L pre-installed memory, RS232/422/485, 24bit DIO, E-windows, two 3.5" removable SATA HDD bay, RoHs

Package Contents

Package Content
  • DIO cable x 1

  • RS-232/422/485 cable x 1

  • RS-232/422/485 cable (blue) x 1

  • One Key Recovery CD x 1

  • Utility CD x 1
