AFL3-12A-BT

Intel® Celeron® J1900 (Quad Core, 2.0 GHz)

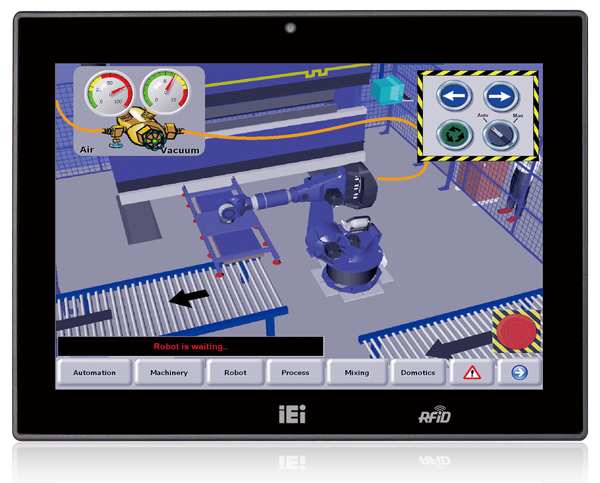

AF3-12A-BT industrial panel PC
  • AF3-12A-BT industrial panel PC
» W10”~12” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Hardware Spec.

系統
CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
Communication
Wi-Fi IEEE 802.11a/b/g/n/ac
輸出/入介面
RAM One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM preinstalled (system max. 8GB)
I/O Ports and Switches 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
2 x USB3.2 Gen1 (5Gb/s)
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
Power
Power Requirement 9~30 VDC
Environment
Operating Temperature -20°C~50°C
Storage Temperature -20°C~60°C
存儲
存儲 mSATA
2.5” SATA 3Gb/s HDD bay
Dimensions
Dimensions 303 x 243 x 44
Weight
Weight 1.92Kg/3.95Kg
LCD
Size 12.1"
Resolution 1024 x 768
Brightness (cd/m2) 500
Contrast Ratio 700:1
LCD Color 16.2M
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Viewing Angle (H-V) 160°/140°
Backlight MTBF 50000 (LED backlight panel)
Touch
Touch Screen 5-wire resistive touch window/ projected capacitive type
Touch Controller PenMount DMC9000/ EETI EXC3146
其他特點
Camera 2-megapixel with low light function
Microphone digital microphone
I/O Interface
I/O Interface 1 x RS-232 (COM port (RJ-45 connector))
2 x USB 2.0
2 x USB 3.2 Gen1x1
1 x Audio ((line-out))
2 x LAN (RJ-45 for GbE LAN)
1 x DC Input Jack (9-30V lockable power jack)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x RS-422/485 (COM port (DB-9 connector)(RI/5V/12V))

Ordering Information

AFL3-12A-BT-J1/R/4G-R16 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 4GB DDR3L RAM , with AG, R16
AFL3-12A-BT-J1/R/2G-R16 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R16
AFL3-12A-BT-J1/PC/4G-R16 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 4GB DDR3L RAM , with AG, R16
AFL3-12A-BT-J1/PC/2G-R16 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R16

Package Contents

Package Content
  • 10 x Screw Pack M2

  • 1 x Power Adpater

  • 1 x Touch Pen

  • 1 x RJ45 to RS-232 Transfer Cable
