IOVU-752S |
|
|
ARM-based Panel PC |
|
|
Date:
September 05, 2012 |
|
 |

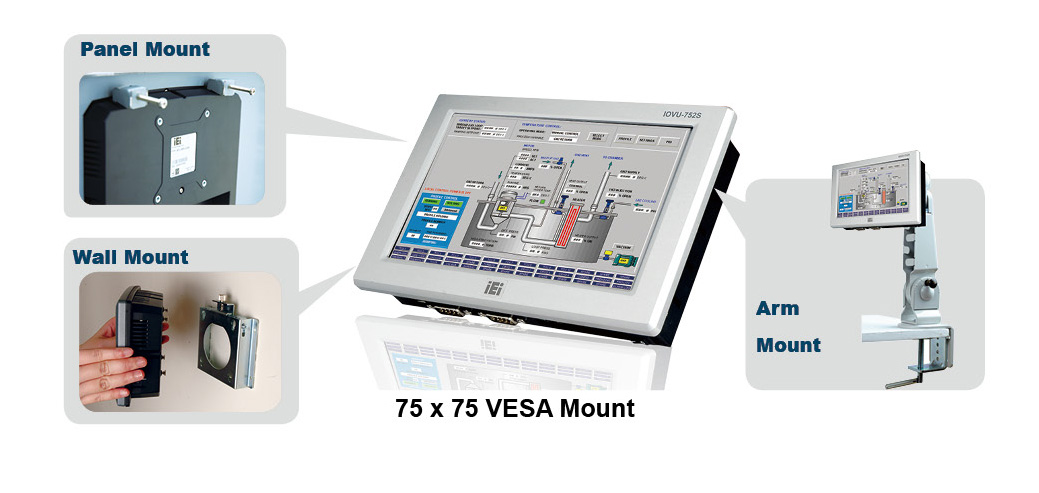

 Mounting Options |
| |
|
The IOVU series (IOVU-430M excluded) utilizes the 75x75 VESA mount standard, allowing for a wide range of mounting options in various industry applications.
 |
|
| Specifications |
| |
|
| Part No. |
Description |
| CPU |
Samsung S3C6410 ARM11 677 MHz |
| Bootloader Storage |
128 MB |
| RAM |
256 MB DDR2 |
| OS/Program Storage |
(SD Slot) |
| LCD Size |
7” |
| LCD Color |
262 K |
| Display Resolution |
WVGA |
| LCD Brightness (cd/m²) |
500 |
| Dot Pitch (mm) |
0.1905(H) x 0.1905(V) |
| Viewing Angle (H-V) |
140 / 130 |
| Backlight MTBF |
50000 |
| Touch Screen |
Resistor Type |
| Multimedia Support |
MPEG-4/H.263/H.264 |
| I/O Interface |
1 x RS-232 COM port
1 x RS-232/422/485 COM port
(software controllable)
1 x 10/100Mbps LAN
(supports PoE)
2 x USB 2.0 host
1 x Reset button
1 x On/Off power switch
1 x Power jack |
| Audio |
2 x 1.5W speaker |
| Wireless LAN |
N/A |
| Construction Material |
Aluminum (Al 6061) |
| Net Weight (kg) |
1.2 |
| Front Panel Color |
Silver |
| Dimensions (W x H x D mm) |
188 x 124 x 40 |
| Operating Temperature (ºC) |
-10°C~ 60°C |
| Front Panel Protection |
IP64 compliant |
| Power Mode |
AT |
| Power Requirement |
6~30V DC input |
| Power Consumption |
14 W |
| Vibration and Shock |
MIL-STD-810F
1. Axes: 3 axes (Vertical / Transverse / Longitudinal)
2. 10 ~ 500Hz, 60min/axis
3. Equivalent to Z: 2.18Grms, X: 1.6Grms, Y: 1.96Grms |
| Humidity |
5%-90% RH |
|
|
|
| Features |
| |
|
 |
RISC-based processor provides high performance and extremely low power consumption |
|
PoE (Power over Ethernet) function |
|
7” widescreen WVGA TFT LCD with resistive touch screen |
|
Samsung S3C6410 ARM11 677MHz processor and 256 MB DDR2 |
|
Preinstalled Windows® CE6.0 operating system |
|
Sleek and compact metal design with very thin frames |
|
Built-in 1.5W speakers |
|
IP 64 compliant front panel |
|
TPM V1.2 hardware security function supported |
|
|
| Packing List |
| |
|
| 1 x Utility CD includes application tools, SDK, and technical document |
| 1 x Null modem cable |
| 1 x Touch pen |
| 1 x Screw kit |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| ECN-680A-H61-R10 |
7” LCD, SAMSUNG S3C6410X66-YB40 667MHz with PoE function, WIN CE6.0, RoHS |
|
|
|
|
