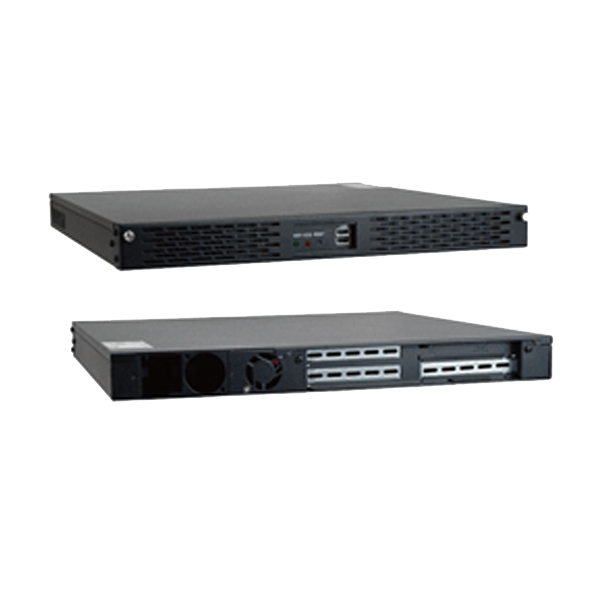

RACK-1150G

1U Full-size Rackmount Chassis

» RoHS compliant design
» Two front-accessible USB ports
» One 5.25” drive bay
» One 3.5” internal hard drive bay
» Three 4 cm cooling fans

Hardware Spec.

Form factor
SBC Form Factor Full-size CPU card
I/O Interface
I/O Openings 1 x COM, 1 x LPT
I/O Ports 2 x USB
Expansion Slots
Expansion Slots 3 slots/ 2 slots (PE)
System
Cooling method / System Fan 3 x 4 cm
Drive Bays 1 x 5.25”
1 x 3.5” HDD (internal)
Indicator&Buttons
Buttons Power switch, reset button
Indicators Power, HDD
Physical Characteristics
Construction Heavy duty metal
Color
Color B:Black
Dimensions
Dimensions 449 mm x 431 mm x 44 mm
Weight
Weight 7.5 kg /9.5 kg
Environment
Operating Temperature 0°C ~ 50°C
Humidity 10% ~ 90%

Ordering Information

RACK-1150GB-R20/180W 1U 3-slot full size rackmount chassis for PICMG 1.0 backplane,Black,Powder paint,3x 4cm fan,with 180W ATX PSU,RoHS
RACK-1150GB-R20 1U 3-slot full size rackmount chassis for PICMG 1.0 backplane,ATX Power Switch,Black,Powder paint,W/O PSU,RoHS
RACK-1150GB-PE-R20/180W 1U 2-slot full size rackmount chassis for PICMG 1.3 backplane,Black,Powder paint,3x 4cm fan,with 180W ATX PSU,RoHS
RACK-1150GB-PE-R20 1U 2-slot full size rackmount chassis for PICMG 1.3 backplane,ATX Power Switch,Black,Powder paint,W/O PSU,RoHS
