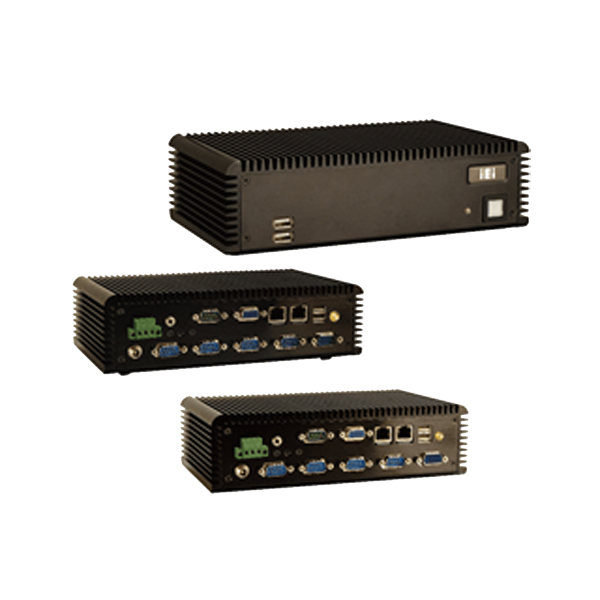

ECW-281B2

Fanless Embedded System with Intel® Atom™ Dual-core D525/N270 CPU

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» Fanless system with
1.8 GHz Intel® Atom™ D525 dual-core CPU
1.6 GHz Intel® Atom™ N270 CPU
» Supports four USB 2.0 ports and six COM ports
» Dual GbE LAN ideal for high-speed network applications
» Supports CompactFlash®, 2.5” SATA HDD and SSD storage devices
» 12 V DC and 9 V DC - 36 V DC power input models available
» Supports dual VGA display (B2 model only)

Hardware Spec.

Form factor
SBC Form Factor CPU:
Intel® Atom™ D525 dual-core 1.8GHz/1MB L2 cache(for ECW-281B2-D252)
Intel® Atom™ N270 1.6 GHz with 533 MHz FSB(for ECW-281B2-N270)
Chipset:
Intel® ICH8M(for ECW-281B2-D252)
Intel® 945GSE + ICH7M(for ECW-281B2-N270)
System Memory:
1 GB DDR3 204-pin SO-DIMM memory pre-installed(for ECW-281B2-D252)
1 GB DDR2 200-pin SO-DIMM memory pre-installed(for ECW-281B2-N270)
I/O Interface
I/O Ports 4 x USB 2.0
Ethernet:2 x Realtek 8111E PCIe GbE
COM Port
5 x RS-232 ports for ECW-281B2-D525
5 x RS-232 ports for ECW-281B2-N270
Display:2 x VGA
Resolution:
VGA: Up to 1024 x 768@60MH(for ECW-281B2-D525z)
VGA: Up to 1024x768@60MHz(for ECW-281B2-N270)
Audio:1 x Speaker out
Expansion Slots
Expansion Slots 1 x PCIe Mini card slot
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5” SATA HDD space
Color
Color Black
Dimensions
Dimensions 229 x 132 x 64
Weight
Weight 2.1 kg/3.9 kg
Environment
Operating Temperature 20°C ~ 65°C with CompactFlash®/SSD(for ECW-281B2-D525)
-10°C ~ 50°C with HDD
-10°C ~ 60°C with CompactFlash®/SSD(for ECW-281B2-N270)
-10°C ~ 50°C with HDD

Ordering Information

ECW-281B2WD-R30/N270/1GB Fanless embedded system with Intel® Atom™ N270 1.6GHz CPU,945GSE,dual VGA,built-in 1GB DDR2 memory,9-36VDC in,w/o power adapter,black,RoHS
ECW-281B2WD-R11/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with dual VGA display and 5 serial ports, with 1 GB DDR3 memory, 9 V-36 V DC in, w/o power adapter, black, RoHS, R11
ECW-281B2-R31/N270/1GB Fanless embedded system with Intel? Atom? N270 1.6GHz CPU,945GSE,dual VGA,built-in 1GB DDR2 memory,12VDC in,with 60W power adapter with ERP and PSE certificates,black,RoHS
ECW-281B2-R12/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel? Atom? D525 1.8G, with dual VGA display and 5 serial ports, with 1 GB DDR3 memory, 12 V DC in, 60W power adapter with ErP and PSE certificates, black, RoHS

Package Contents

Package Content
  • 1 x Power cord only for 12V

  • 1 x Screw set

  • 1 x 12V 60W power adapter (with PSE/ErP certified, only for 12V)

  • 1 x Wall mount bracket

  • 1 x HDD thermal pad
