ACE-A627A

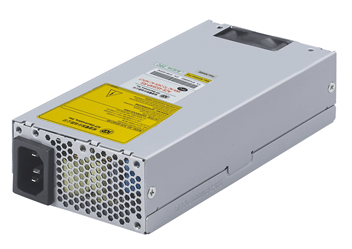

270 W 1U Type ATX Power Supply

End of Life

End of Life Notice

* Effective Date: 2018/02/08

270 W 1U Type ATX Power Supply

Hardware Spec.

General
Dimensions 150 x 81.5 x 40.5
Efficiency 80%
MTBF 100,000
Operating temperature 0°C ~ 50°C
Output Connector 20-pin ATX, 4-pin 12 V, FDD and three HDD
Storage temperature -20°C ~ 80°C
Watt 270W
Input
Voltage 90~264VAC Full Range
Output
Voltage +3.3V/16A,+5V/18A,+12V/16A,+12v2/10A,-12V/0.8A,+5Vsb/2.5A

Ordering Information

ACE-A627A-RS-R11 1U flex ATX 270W Power Supply;90~264VAC;ERP;CCL;RoHS

Download Specs.
