ACE-932A

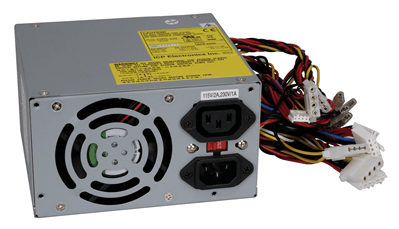

300 W PS/2 AT Power Supply

End of Life

End of Life Notice

* Effective Date: 2019/12/19

300 W PS/2 AT Power Supply

Hardware Spec.

General
Efficiency 68%
MTBF 120,000
Operating temperature 0°C ~ 50°C (50°C ~ 70°C derating curve)
Output Connector 1 x P8+P9, 1 x Extra +5V (P10), 4 x HDD/CDROM, 2 x FDD
Storage temperature -40°C ~ 75°C
Watt 300W
Input
Voltage 90 ~ 130 VAC, 180 ~ 260 VAC Auto Range
Output
Voltage +5V/33A,+12V/8A,-5V/0.5A,-12V/3A

Ordering Information

ACE-932A-RS 300W AC input PS/2 type power supply;;;;CCL;RoHS
