IMBA-C2460

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor per Intel® C246, DDR4, triple displays, dual GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

End of Life

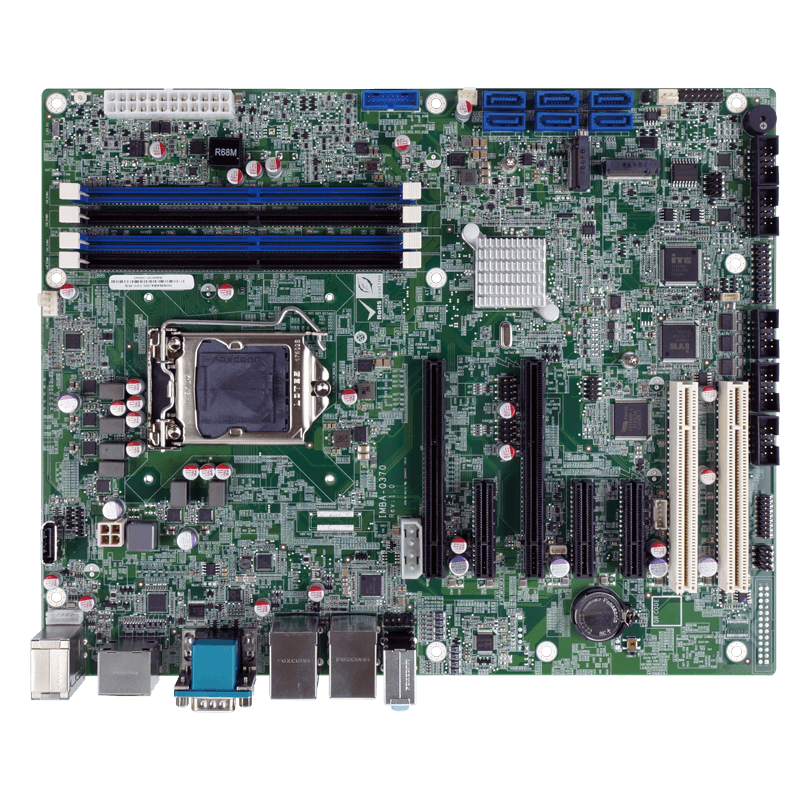

IMBA-C2460 ATX Industrial Motherboard
IMBA-C2460 ATX Industrial Motherboard
  • IMBA-C2460 ATX Industrial Motherboard
  • IMBA-C2460 ATX Industrial Motherboard

End of Life Notice

* Effective Date: 2024/04/29

» LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
» Dual-channel DDR4 2666MHz
» Support VGA, HDMI™ & DP++
» Support M.2 A key for WLAN expansion, M key for storage

Hardware Spec.

Form Factor
Form Factor ATX Motherboard
System
CPU LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset Intel® C246
Memory Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB (ECC&non-ECC support)
Memory Max. Up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x3 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 305mm
Net Weight GW:1200g / NW:700g
Storage
Storage 1 x M.2(NGFF): 1 x M.2 M Key (2280, PCIe x2 only)
6 x SATA
I/O Interface
Display Output 1 x Display Port: Internal DisplayPort
1 x DP++
1 x HDMI™
1 x VGA
Ethernet 2 x LAN::
LAN1: Intel® I219LM PCIe controller with AMT 11.0 support
LAN2: Intel® I210AT PCIe controller
Audio 1 x Front Audio(2x5-pin)
HD Audio: Realtek ALC662 HD codec
1 x Line in
1 x Line out
1 x Mic
I/O Interface 1 x DIO: 8-bit digital I/O (2x5 pin)
1 x External RS-232
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
2 x External USB 3.2 Gen2x1
3 x Internal RS-232(2x5 pin, P=2.54)
2 x Internal RS-232/422/485(2x5 pin, P=2.54)
4 x Internal USB 2.0(2x4 pin, P=2.54)
2 x Internal USB 3.2 Gen1x1(2x10 pin, P=2.0)
1 x LPT(2x13 pin, P=2.54) Optional
2 x PS/2::
1 x PS/2 (External)
1 x KB/MS (1x6 pin) (Internal)
Expansion 2 x M.2(NGFF)::
1 x M.2 A key (2230, PCIe x1 & USB 2.0)
1 x M.2 M Key (2280, PCIe x2 only)
2 x PCI Slot
3 x PCIe x4
2 x PCIe x8
Other Features
TPM 1 x TPM 2.0 connector (2x10 pin)
Power
Power Consumption 3.3V@0.38A, 5V@9.38A, 12V@6.23A, 5VSB@0.16A
(3.0 GHz Intel® Core™ I5-8500 CPU with four 16 GB 2400 MHz DDR4 memory)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-C2460-R10 ATX motherboard supports 14nm LGA1151 Intel® Xeon® E,8th/9th Core™ i9/i7/i5/i3, Celeron® and Pentium® per Intel® C246, ECC & non-ECC DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.2 Gen 2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x IMBA-C2460 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
