ECN-360A-ULT3

Fanless Embedded System with Intel® Solution

End of Life

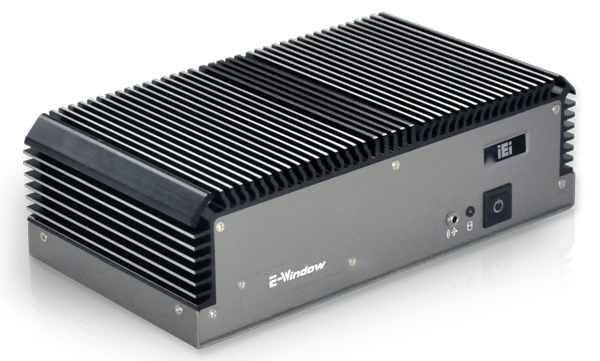

ECN-360A-ULT3 Embedded System
ECN-360A-ULT3 Embedded System
  • ECN-360A-ULT3 Embedded System
  • ECN-360A-ULT3 Embedded System

End of Life Notice

* Effective Date: 2021/12/28

» On-board CPU
» i5-6300U dual-core up to 3.0GHz
» 3855U dual-core up to 1.6GHz
» Two 2.5” SATA 6Gb/s HDD/SSD drive bay
» Operating temperature: -20°C ~ 60 °C
» Two flexible E-Window for modularized expansion I/O

Hardware Spec.

Form factor
SBC Form Factor Refer to SBC
I/O Interface
I/O Ports 4 x USB3.0
2 x LAN
1 x RS-232/422/485
2 x RS-232
1 x 8-bit digital I/O
2 x HDMI™
1 x Line-out
2 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot
System
Cooling method / System Fan Fanless
Drive Bays 2 x 2.5” SATA HDD bay(No RAID support)
Indicator&Buttons
Buttons Power switch
Indicators Power, HDD
Physical Characteristics
Construction SECC
Color
Color Black
Dimensions
Dimensions 255 x 130 x 75
Weight
Weight 2.2 kg/ 3kg
Environment
Operating Temperature -20°C ~ 60°C with air flow (SSD)
Humidity 5% ~ 95%, non-condensing

Ordering Information

ECN-360A-ULT3-i5/WD/4G-R10 Fanless System with Intel® Core™ i5-6300U up to 3.0GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI™, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 9~36V DC, RoHS
ECN-360A-ULT3-i5/4G-R10 Fanless System with Intel® Core™ i5-6300U up to 3.0GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI™, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed,12V DC, RoHS
ECN-360A-ULT3-CE/WD/4G-R10 Fanless System with Intel® Celeron® 3855U up to 1.6GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI™, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 9~36V DC, RoHS
ECN-360A-ULT3-CE/4G-R10 Fanless System with Intel® Celeron® 3855U up to 1.6GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI™, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 12V DC, RoHS

Package Contents

Package Content
  • 1 x Screw set

  • 1 x Wall mount bracket
