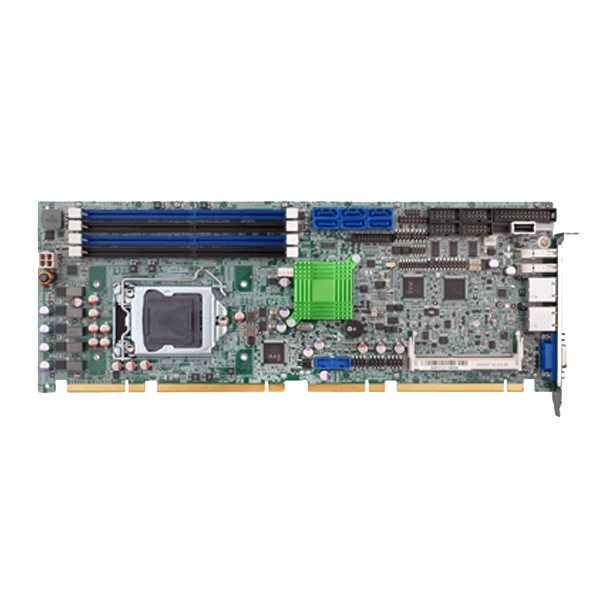

SPCIE-C236

Full-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU per Intel® C236

End of Life

End of Life Notice

* Effective Date: 2024/04/29

» PICMG 1.3 full-size CPU Card
» LGA 1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
» Four 288-pin 1867/2133MHz DDR4 ECC & non-ECC unbuffered DIMM
» Supports dual independent display by VGA & internal DP pin header
» Supports mini-PCIe device & mSATA via mini-PCIe socket
» Intel® PCIe GbE with Intel® AMT 11.0 supported
» Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s
» TPM 1.2 & 2.0 hardware security function supported by TPM module

Hardware Spec.

System
CPU LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
Chipset Intel® C236
Memory Four 288-pin 1866/2133 MHz dual-channel ECC & non-ECC unbuffered DDR4 DIMMs
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 338 X 126
Net Weight 420g
Storage
Storage 6 x SATA :6Gb/s (RAID 0/1/5/10 supported)
1 x mSATA :SATA & USB signal
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x iDP :for HDMI™, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60Hz)
Ethernet 2 x LAN :1 x Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported
1 x Intel® I210 PCIe controller
Audio Description: Support 7.1 channel HD Audio by IEI AC-KIT-892HD kit
I/O Interface 2 x Internal RS-232 :2x5 pin, p=2.54
2 x Internal RS-232/422/485 :2x5 pin, p=2.54
7 x Internal USB 2.0 :1 x 180° Type-A, 6 X 2x4 pin, P=2.54
1 x PS/2 :1x6 pin
1 x LPT :2x13 pin
Expansion 1 x PCIe x16 :16-lane PCIe link from CPU via golden finger(configured via BIOS)
2 x PCIe x8 :16-lane PCIe link from CPU via golden finger(configured via BIOS)
2 x PCIe x4 :16-lane PCIe link from CPU via golden finger(configured via BIOS),4-lane PCIe link from PCH via golden finger(configured via BIOS)
4 x PCIe x1 :4-lane PCIe link from PCH via golden finger(configured via BIOS)
1 x PCIe mini Card Slot :supports mSATA
Other Features
TPM 2x10 pin
Power
Power Consumption 5V@3.22A, 12V@6.81A, 3.3V@1.21A, 5VSB@0.18A (Intel® Xeon® E3-1275 v5 3.60 GHz
CPU with 64GB (16GBx4) 2133 MHz DDR4 memory)
Power Supply 5V/12V, Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 95%, non-condensing

Ordering Information

SPCIE-C236-R10 Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® E3-1200/Core™ i3/Pentium®/Celeron® CPU per Intel® C236, DDR4, VGA/IDP, Dual Intel® PCIe GbE, USB3.0, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, iAMT and RoHS

Package Contents

Package Content
  • 1 x SPCIE-C236 single board computer

  • 1 x Mini jumper pack

  • 1 x SATA cable

  • 1 x QIG
