PUZZLE-IN003A

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, up to 8 x 1 GbE on Board with 2 (by sku) bypass segments, 1 x eMMC 32GB

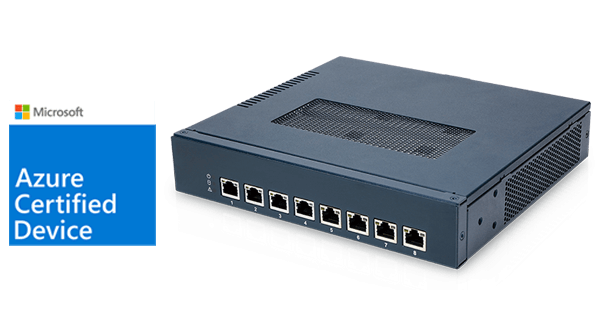

PUZZLE-IN003A Desktop Network Appliance

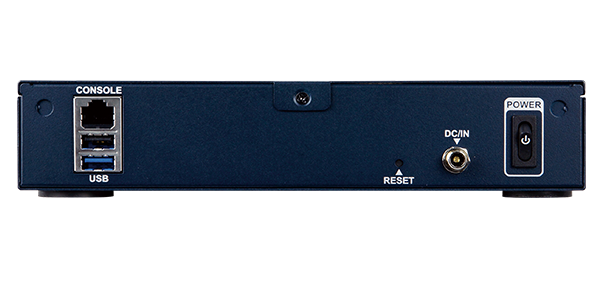

PUZZLE-IN003A Desktop Network Appliance
PUZZLE-IN003A-C1 Desktop Network Appliance
PUZZLE-IN003A-C3 Desktop Network Appliance
  • PUZZLE-IN003A Desktop Network Appliance
  • PUZZLE-IN003A Desktop Network Appliance
  • PUZZLE-IN003A-C1 Desktop Network Appliance
  • PUZZLE-IN003A-C3 Desktop Network Appliance
» Intel® Atom® Processor C3000 Processor
» Support 4 x 1 GbE NIC via Intel® I211, 4 x 1 GbE PHY via Marvell 88E1543
» Support bypass function (by sku)
» DDR4 2133MHz ECC (by CPU) or non-ECC UDIMM/R-DIMM Up to 128GB
» 1 x M.2 A key (USB 2.0, PCIe x1), 1 x miniPCIe (USB 2.0, PCIe x1) with SIM card slot, 1 x eMMC 32GB

Hardware Spec.

System
CPU PUZZLE-IN003A-C1 : Intel® Atom® processor C3558
PUZZLE-IN003A-C3 : Intel® Atom® Processor C3336
Chipset Integrated in CPU
Memory PUZZLE-IN003A-C1: 2 x 288-pin DIMM
PUZZLE-IN003A-C3 : 1 x 288-pin DIMM
Memory Max. DDR4 2133MHz ECC (By CPU) or non-ECC UDIMM up to 64 GB, Support RDIMM up to 128GB
Cooling method / System Fan Fanless
Physical Characteristics
Dimensions (LxWxH) (mm) 206 x 225 x 44.2
Net Weight 2 KG
Storage
Storage 1 x eMMC(32 GB)
1 x M.2(NGFF)(M.2 M key 2260/2280 Support PCIe 3.0 x4 nVME)
1 x SATA: SATA 3.0 + 1 x 5V power connector (for SATA DOM)
I/O Interface
Ethernet 8 x LAN:
* PUZZLE-IN003A-C1 :
8 x GbE LAN ports (4 x GbE NIC: Intel® i211-AT , 4 x GbE PHY: Marvell 88E1543)
* PUZZLE-IN003A-C3 :
6 x GbE LAN ports (4 x GbE NIC: Intel® i211-AT , 2 x GbE PHY: Marvell 88E1543)
I/O Interface 1 x External USB 2.0
1 x External USB 3.2 Gen1x2
Expansion 1 x M.2(NGFF): A key (PCIe 3.0 & USB 2.0)
1 x PCIe mini Card Slot(PCIe 3.0, USB 2.0) with SIM slot
Falt-tolerance
LAN Bypass PUZZLE-IN003A-C1 : 2 bypass segments
PUZZLE-IN003A-C3 : 1 bypass segments
Wireless
Others 2 x Antenna hole
Other Features
TPM 1 x TPM 2.0 pin header
Power
Input 1 x DC jack
Power Supply 12 V DC-in, 60W
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC CE / FCC / RoHS
OS Support
OS Support Linux Ubuntu 18.04.04
CentOS 7 / Red Hat / Fedora EPEL
Microsoft Windows 10

Ordering Information

PUZZLE-IN003A-C3-R10 Desktop Network Appliance with Intel® ATOM® C3336 Processor , 6 x 1GbE on Board with up to 1 bypass segments, eMMC 32GB & 2x M.2 slot
PUZZLE-IN003A-C3/8G-R10 Desktop Network Appliance with Intel® ATOM® C3336 Processor , 6 x 1GbE on Board with up to 1 bypass segments, 8GB DDR4, eMMC 32GB & 2x M.2 slot
PUZZLE-IN003A-C1-R10 Desktop Network Appliance with Intel® ATOM® C3558 Processor , 8 x 1GbE on Board with up to 2 bypass segments, eMMC 32GB & 2x M.2 slot
PUZZLE-IN003A-C1/8G-R10 Desktop Network Appliance with Intel® ATOM® C3558 Processor , 8 x 1GbE on Board with up to 2 bypass segments, 8GB DDR4, eMMC 32GB & 2x M.2 slot

Package Contents

Package Content
  • • 1 x Power cord

  • • 1 x Power adapter

  • • 2 x Rack mounting ears (by sku)

  • • 6 x Screws for rack mounting ears (by sku)

  • • 1 x USB to console cable (by sku)

  • • 1 x RS-232 to console cable (bu sku)
