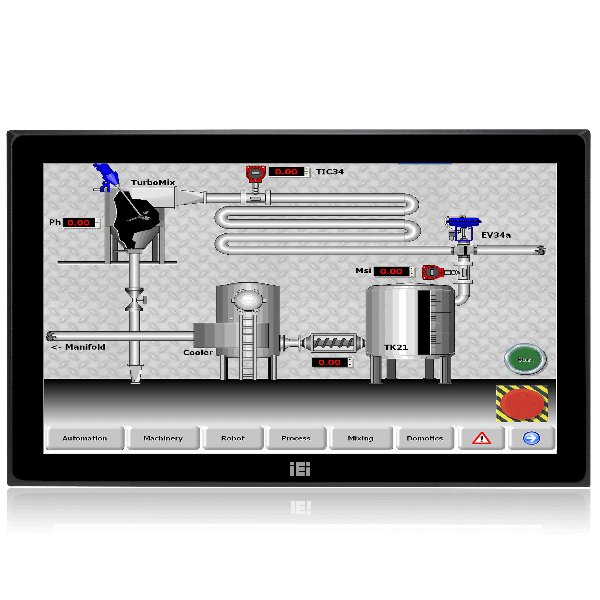

DM-FW19A

18.5” DM-F IP65 Industrial Monitor

» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» DC input
» DP/VGA flexible video input solution
» PCAP AG coating touch
» Wide temperature support

Hardware Spec.

Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 400
Contrast Ratio 1000:1
LCD Size 18.5” (16:9)
Max Resolution 1366 (W) X 768 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 70°C
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.3 x 0.3
Viewing Angle (H-V) 170° / 160°
Physical Characteristics
Cutout Dimensions 447.8 x 267.2
Dimensions (LxWxH) (mm) 468.8 x 288.2 x 48.9
Power
Power adapter 9V~36V DC
Touch
Touch Controller EETI EXC3 series
Touch Screen 10-point projected capacitive touch window
Weight
Weight 5 / 8.1
I/O Interface
I/O Interface 1 x DC Input Jack(9~36V (Lockable))
1 x Display Port
1 x HDMI™
1 x Power In(9V-36V terminal block)
1 x USB 2.0(touch)
1 x VGA

Ordering Information

DM-FW19A/PC-R21 18.5" 400 cd/m² 1366x768 LCD monitor, Aluminum front panel, Black color, W/ USB PCAP touch screen, 9 ~36V DC input, Powder paint, R21

Package Contents

Package Content
  • 1 x USB Cable

  • 1 x VGA Cable
