Single Board Computer

Full Size Single Board Computer

The PICMG 1.3 allows users to protect their investment in PCI (PCI-X) technology while taking advantage of the speed and increased bandwidth of PCI Express. -->Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

PCIE-H810

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB
Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB
Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0
2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0

PCIE-Q170

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB
Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)

PCIE-Q370

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i9/i7/i5/i3/ Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA/HDMI™ and DP, Dual Intel® PCIe GbE, USB 3.1, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS
● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370
● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB
Dual display supported
» PCIE-Q370-R11
1 x VGA (up to 1920 x 1080@60Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
» PCIE-Q370-HDMI-R11**
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
Dual display supported
» PCIE-Q370-R11
1 x VGA (up to 1920 x 1080@60Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
» PCIE-Q370-HDMI-R11**
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
● External I/O Interface
2 x USB 3.0 (Rear IO type A)
1 x USB 2.0 (Type A 180°)
● Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
● External I/O Interface
2 x USB 3.0 (Rear IO type A)
1 x USB 2.0 (Type A 180°)
● Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
● Expansion
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger
● Expansion
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger
PCIE-Q470 Full-size PICMG 1.3 CPU

PCIE-Q470

Full-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4, HDMI™, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, IAUDIO and RoHS
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G
4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G
One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
4 x SATA 6Gb/s (Support RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin)
1 x USB 3.2 Gen1 (Type A 180°)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)
● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
4 x SATA 6Gb/s (Support RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin)
1 x USB 3.2 Gen1 (Type A 180°)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)
1 x PCIe x16 signal via golden finger
(Support x16, or x8 + x8, or x4 + x4 + x8)
4 x PCIe x1 signal from PCH via golden finger (support1 x4, or 4 x1)
4 x PCI signal via golden finger
1 x M.2 A Key (2230) (with PCIe Geb3 x2/USB 2.0)
1 x M.2 B Key (3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)
1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)
1 x PCIe x16 signal via golden finger
(Support x16, or x8 + x8, or x4 + x4 + x8)
4 x PCIe x1 signal from PCH via golden finger (support1 x4, or 4 x1)
4 x PCI signal via golden finger
1 x M.2 A Key (2230) (with PCIe Geb3 x2/USB 2.0)
1 x M.2 B Key (3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)
1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)

SPCIE-C236

Full-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB
Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (C236 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (C236 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)
SPCIE-C246 Full Size Single Board Computer

SPCIE-C246

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI™, DP, Dual Intel® PCIe GbE, USB 3.1 Gen 1, SATA 6Gb/s, M.2, HD Audio, Intel® AMT and RoHS
‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246
‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC
‧Dual display supported:
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)
‧Dual display supported:
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)
‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger
‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

WSB-H810

Full-size PICMG 1.0 CPU Card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81,
Intel® H81
LGA1150
Intel® H81
LGA1150
Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA
4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA

Half Size Single Board Computer

IEI offers ISA, PCISA, PCI and PICOe half size CPU cards. (PICOe = PCI + PCIe x4) The benefits of PICOe : *Same dimension, backwards compatible but half the size of PCI SBC. *Higher performance as PCI only solution for the same price. -->Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features
HPCIE-Q470 Half-size PICMG 1.3 CPU Card

HPCIE-Q470

Half-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4 SO-DIMM, HDMI™, Dual Intel® 2.5GbE, USB 3.2 Gen2, SATA 6Gb/s, M.2, IAUDIO, and RoHs
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G
2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G
One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
2 x SATA 6Gb/s (Support RAID 0/1 )
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 support AFC)
● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
2 x SATA 6Gb/s (Support RAID 0/1 )
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 support AFC)
16-lanes PCIe signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
4-lanes PCIe signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x4
16-lanes PCIe signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
4-lanes PCIe signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x4

PCISA-BT

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA
On Board
On Board
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)
Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)
Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)
1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA
1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA
PICOe-EHL Front

PICOe-EHL

Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
LPDDR4x-3200Gbps 8GB, up to 16GB
LPDDR4x-3200Gbps 8GB, up to 16GB
● Dual independent displays
1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Dual independent displays
1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface:
2 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface:
2 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x M.2 M Key (2242/2280, PCIe x2)
1 x PCIe x4 slot (1 x PCIe x4 or 4 x PCIe x1)
4 x PCI slot
1 x M.2 M Key (2242/2280, PCIe x2)
1 x PCIe x4 slot (1 x PCIe x4 or 4 x PCIe x1)
4 x PCI slot

Backplane

IEI offers PEMUX PICMG1.3, PICMG 1.0, PCI/PCI EXPRESS, PCISA and ISA backplane. --> Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

BP-10S

10-slot backplane with ten ISA slots
ISA Slot:10
ISA Slot:10

BP-3S

3-slot backplane with three ISA slots
ISA Slot:3
ISA Slot:3

BP-4S

4-slot backplane with four ISA slots
ISA Slot:4
ISA Slot:4

BP-5S

5-slot backplane with firve ISA slots
ISA Slot:5
ISA Slot:5

BP-6S

6-slot backplane with six ISA slots
ISA Slot:6
ISA Slot:6

BP-7S

7-slot backplane with seven ISA slots
ISA Slot:7
ISA Slot:7

BP-8S

8-slot backplane with eight ISA slots
ISA Slot:8
ISA Slot:8

HPE-3S2

3-slot backplane with one PCI slot and one PCIe x4 slot
PCIe x 4:1
PCI Slot:2
PCIe x 4:1
PCI Slot:2

HPE-4S2

4-slot backplane with two PCI slots and one PCIe x4 slot
PCIe x 4:1
PCI Slot:2
PCIe x 4:1
PCI Slot:2

HPE-5S1

5-slot backplane with four PCI slots
PCI Slot:4
PCI Slot:4

HPE-6S1

6-slot backplane with four PCI slots and one PCIe x4 slot
PCIe x 4:1
PCI Slot:4
PCIe x 4:1
PCI Slot:4

HPE-8S0

7-slot backplane with four PCI slots and two PCIe x1 slots
PCIe x 1:2
PCI Slot:4
PCIe x 1:2
PCI Slot:4

HPXE2-5S1

5-slot PICMG 1.3 backplane for half-size SBC, with two PCI slots and one PCIe x16 slot (x16 signal)
PCIe x 16:1
PCI Slot:2
PCIe x 16:1
PCI Slot:2

HPXE2-8S1

8-slot PICMG 1.3 backplane for half-size SBC, with four PCI
PCIe x 8:2
PCI Slot:4
PCIe x 8:2
PCI Slot:4

IP-10S

10-slot backplane with four PCI slots and five ISA slots
PCI Slot:4
ISA Slot:5
PCI Slot:4
ISA Slot:5

IP-3S

3-slot backplane with two PCI slots
PCI Slot:2
PCI Slot:2

IP-5SA2

5-slot backplane with four PCI slots
PCI Slot:4
PCI Slot:4

IP-6S

6-slot backplane with three PCI slots and two ISA slots
PCI Slot:3
ISA Slot:2
PCI Slot:3
ISA Slot:2

IP-6SA

6-slot backplane with three PCI slots and two ISA slots
PCI Slot:3
ISA Slot:2
PCI Slot:3
ISA Slot:2

PCI-10S

10-slot backplane with four PCI slots and five ISA slots
PCI Slot:4
ISA Slot:5
PCI Slot:4
ISA Slot:5

PCI-12S

12-slot backplane with four PCI slots and seven ISA slots
PCI Slot:4
ISA Slot:7
PCI Slot:4
ISA Slot:7

PCI-14S

14-slot backplane with four PCI slots and nine ISA slots
PCI Slot:4
ISA Slot:9
PCI Slot:4
ISA Slot:9
PCI-5S2A backplane

PCI-5S2A

5-slot ATX power backplane with four PCI slots and one ISA slot
PCI Slot:4
ISA Slot:1
PCI Slot:4
ISA Slot:1

PCI-5SD6

2U chassis backplane with four PCI slots
PCI Slot:L2+R2
PCI Slot:L2+R2

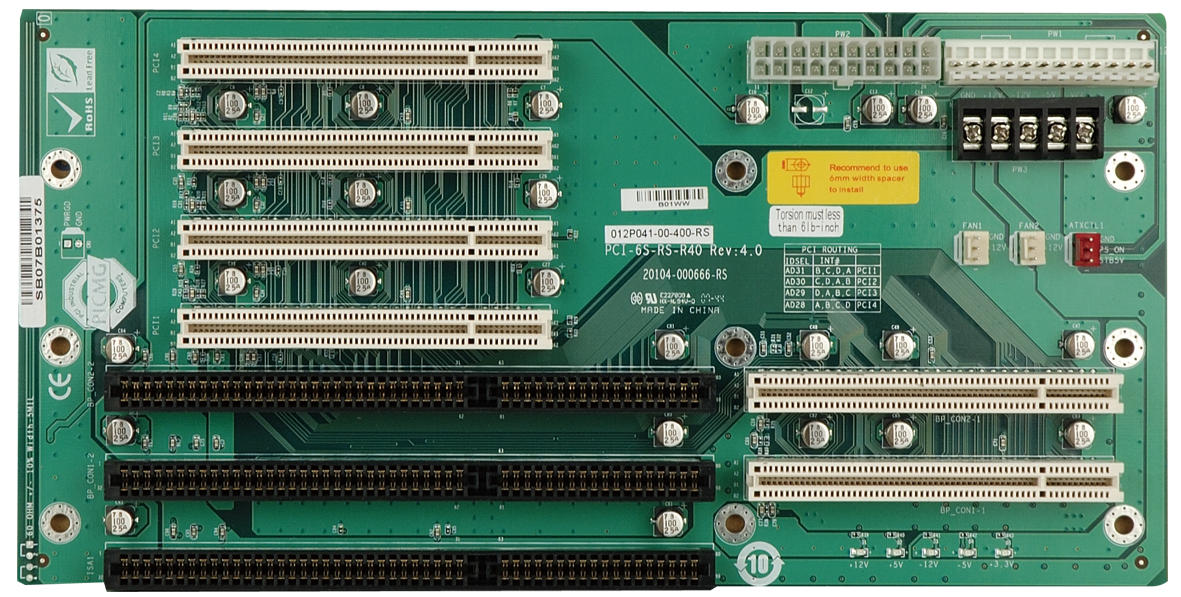

PCI-6S

6-slot backplane with four PCI slots and two ISA slots
PCI Slot:4
ISA Slot:2
PCI Slot:4
ISA Slot:2

PCI-6SD

2U chassis backplane with two PCI slots and two ISA slots
PCI Slot:L1+R1
ISA Slot:L1+R1
PCI Slot:L1+R1
ISA Slot:L1+R1

PCI-7S

7-slot backplane with four PCI slots and three ISA slots
PCI Slot:4
ISA Slot:3
PCI Slot:4
ISA Slot:3

PE-10S

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:4
PCIe x 16:1
PCIe x 1:4
PCI Slot:4

PE-10S2

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:4
PCIe x 16:1
PCIe x 1:4
PCI Slot:4

PE-2SD1

2-slot backplane with one PCIe slot
PCIe x 16:1
PCIe x 16:1

PE-4S

4-slot backplane with one PCIe x16 slot, one PCIe x4 slot and one PCI slot
PCIe x 16:1
PCIe x 4:1
PCI Slot:1
PCIe x 16:1
PCIe x 4:1
PCI Slot:1

PE-5S

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots RACK-500G 5U 5-slot full-size
PCIe x 16:1
PCIe x 4:1
PCI Slot:2
PCIe x 16:1
PCIe x 4:1
PCI Slot:2

PE-5S2

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots
PCIe x 16:1
PCIe x 1:3
PCIe x 16:1
PCIe x 1:3

PE-6S

6-slot backplane with one PCIe x16 slot, two PCIe x1 slots and two PCI slots
PCIe x 16:1
PCIe x 1:2
PCI Slot:2
PCIe x 16:1
PCIe x 1:2
PCI Slot:2

PE-6S2

6-slot backplane with one PCIe x16 slot, one PCIe x4 slot and three PCI slots
PCIe x 16:1
PCIe x 4:1
PCI Slot:3
PCIe x 16:1
PCIe x 4:1
PCI Slot:3

PE-6SD

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots
PCIe x 16:1
PCIe x 1:3
PCIe x 16:1
PCIe x 1:3

PE-6SD3

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots
PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI Slot:2
PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI Slot:2

PE-7S

7-slot backplane with one PCIe x16 slot, two PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:2
PCI Slot:3
PCIe x 16:1
PCIe x 1:2
PCI Slot:3

PE-8S

8-slot backplane with one PCIe x16 slots, three PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:3
PCI Slot:3
PCIe x 16:1
PCIe x 1:3
PCI Slot:3

PE-9S

9-slot backplane with one PCIe x16 slot, four PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:3
PCIe x 16:1
PCIe x 1:4
PCI Slot:3

PXE-11S1

PICMG 1.3 Passive Backplane
1 x PCIe x16 (x8 signal)
1 x PCIe x1
3 x PCIe x4 (x4 signal)
1 x PCIe x4 (x2 signal)
4 x PCI Slots
1 x M.2 A key
1 x PCIe x16 (x8 signal)
1 x PCIe x1
3 x PCIe x4 (x4 signal)
1 x PCIe x4 (x2 signal)
4 x PCI Slots
1 x M.2 A key

PXE-13S

13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots
PCIe x 16:1
PCIe x 1:3
PCI Slot:8
PCIe x 16:1
PCIe x 1:3
PCI Slot:8

PXE-14S1

PICMG 1.3 Passive Backplane
1 x PCIe x16(Gen3 x16 signal)
12 x PCI
1 x PCIe x16(Gen3 x16 signal)
12 x PCI

SPE-6S

6-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,5 PCIe x4,RoHS
PCIe x 4:5
PCIe x 4:5

SPE-9S

7-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slots,3 PCIe x4,3 PCI,RoHS
PCIe x 8:1
PCIe x 4:3
PCI Slot:3
PCIe x 8:1
PCIe x 4:3
PCI Slot:3

SPXE-11S

IEI Server Grade Backplane Solution, PICMG 1.3 Backplane for 4U rack-mount chassis
2 x PCIE x4 from CPU
1 x PCIE x4 from PCH
Slot type: X4 signal with X16 slot
3 x PCIE x4 from CPU via PLX8724
Slot type: X4 signal with X16 slot
4 x PCI from CPU card
2 x PCIE x4 from CPU
1 x PCIE x4 from PCH
Slot type: X4 signal with X16 slot
3 x PCIE x4 from CPU via PLX8724
Slot type: X4 signal with X16 slot
4 x PCI from CPU card
2 x ATX power connector (24pin + 4pin)
Power LED
1 x IOPWR (20 pin)
1 x SM BUS connector (2 pin)
1 x PWRGD connector (2 pin)
1 x Reset connector (2 pin)
1 x PWRBTN connector (2 pin)
4 x Fan connector (3 pin)
1 x ATXCTL connector (3 pin)
Mounting hole compatible with PCI-14S
2 x ATX power connector (24pin + 4pin)
Power LED
1 x IOPWR (20 pin)
1 x SM BUS connector (2 pin)
1 x PWRGD connector (2 pin)
1 x Reset connector (2 pin)
1 x PWRBTN connector (2 pin)
4 x Fan connector (3 pin)
1 x ATXCTL connector (3 pin)
Mounting hole compatible with PCI-14S

SPXE-14S

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS
PCIe x 8:1
PCIe x 1:12
PCIe x 8:1
PCIe x 1:12

Industrial Motherboard

IEI industrial motherboard series including ATX, Micro-ATX and Mini-ITX motherboards. With multifunctional and high performance features, IEI industrial motherboard series are suited to applications in POS, KIOSK, vending machine, healthcare industry, etc.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

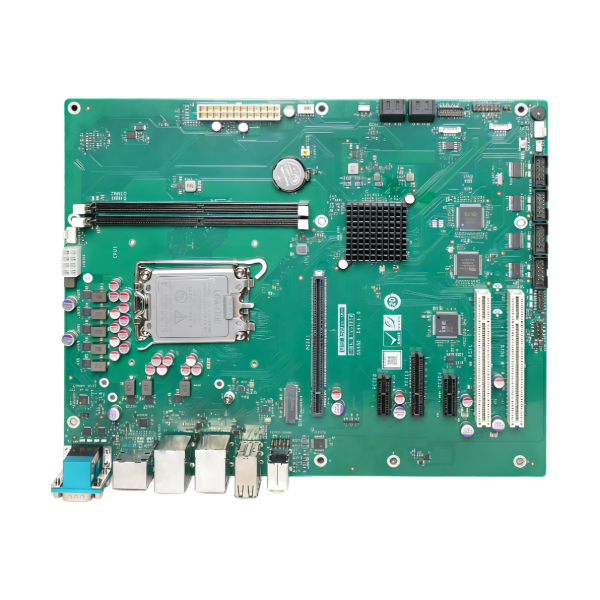

IEI IMB-ADL-H610 micro ATX motherboard supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® CPU

IMB-ADL-H610

micro ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual LAN, USB 3.2, SATA 6Gb/s and RoHS
● CPU: LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
● CPU: LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
● Triple independent display:
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Triple independent display:
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface:
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface:
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
1 x M.2 M Key 2280( PCIe x1 ) NVMe supported
1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
1 x M.2 M Key 2280( PCIe x1 ) NVMe supported

IMB-ADL-Q670

micro-ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
● CPU:LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E
● CPU:LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E
Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB
Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB
● Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-I (up to 1920x1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)
● Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-I (up to 1920x1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)
● External I/O Interface:
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
6 x USB 3.2 Gen1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type A)
● Internal I/O Interface:
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54)
8 x RS-232 (2x20 pin, P=2.54)
● External I/O Interface:
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
6 x USB 3.2 Gen1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type A)
● Internal I/O Interface:
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54)
8 x RS-232 (2x20 pin, P=2.54)
*1 x PCIe Gen4 x16 with x16 Signal
*1 x PCIe Gen4 x4 open-end
(*Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storagedevices)
1 x PCIe Gen4 x4 open-end
1 x PCIe Gen3 x1
1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe Gen3 x2 for SSD) NVMe support
*1 x PCIe Gen4 x16 with x16 Signal
*1 x PCIe Gen4 x4 open-end
(*Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storagedevices)
1 x PCIe Gen4 x4 open-end
1 x PCIe Gen3 x1
1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe Gen3 x2 for SSD) NVMe support
IMB-H420 Front

IMB-H420

Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual 2.5GbE LAN, M.2, 6 USB 3.2, 8 USB 2.0, 10 COM, SATA 6Gb/s, HD Audio and RoHS
● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor. up to 65W TDP
● Chipset: Intel® H420E
● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor. up to 65W TDP
● Chipset: Intel® H420E
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
● Triple display support
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x internal DP (up to 3840 x 2160@60Hz)
● Triple display support
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x internal DP (up to 3840 x 2160@60Hz)
● External I/O Interface:
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● Internal I/O Interface:
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s
● External I/O Interface:
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● Internal I/O Interface:
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s
1 x PCIe Gen3 x16 slot
1 x PCIe Gen3 x1 slot
1 x M.2 M key 2242/2280 (PCIe Gen3 x2)
1 x PCIe Gen3 x16 slot
1 x PCIe Gen3 x1 slot
1 x M.2 M key 2242/2280 (PCIe Gen3 x2)
IMB-Q470 Front

IMB-Q470

Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual LAN, M.2, 8 USB 3.2, 6 USB 2.0, 10 COM, SATA 6Gb/s, HD Audio and RoHS
● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor. up to 125W TDP
● Chipset: Intel®Q470/Q470E
● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor. up to 125W TDP
● Chipset: Intel®Q470/Q470E
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
● Triple display support
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x interna DP (up to 3840 x 2160@60Hz)
● Triple display support
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x interna DP (up to 3840 x 2160@60Hz)
● External I/O Interface:
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● Internal I/O Interface:
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s
● External I/O Interface:
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● Internal I/O Interface:
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s
1 x PCIe Gen3 x16 slot
2 x PCIe Gen3 x4 slot
1 x M.2 B key 2242/2280 (PCIe Gen3 x2)
1 x M.2 M key 2242/2280 (PCIe Gen3 x4)
1 x PCIe Gen3 x16 slot
2 x PCIe Gen3 x4 slot
1 x M.2 B key 2242/2280 (PCIe Gen3 x2)
1 x M.2 M key 2242/2280 (PCIe Gen3 x4)
IMBA-ADL-H610 ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor

IMBA-ADL-H610

ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS
● CPU: LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
● CPU: LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
● Triple independent display :
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Triple independent display :
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface:
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface:
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
2 X PCI
1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
2 X PCI
IMBA-ADL-Q670 Front

IMBA-ADL-Q670

ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, iAUDIO and RoHS
● CPU: LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E
● CPU: LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E
Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB
Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB
● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface:
4 x SATA 6Gb/s
2 x USB 3.2 Gen1 (2 x 10pin, P=2.00 pin wafer) (5Gb/s)
4 x USB 2.0 (2 x 4 pin, P=2.54)
4 x RS-232 (2 x 5 pin, P=2.54)
● External I/O Interface:
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface:
4 x SATA 6Gb/s
2 x USB 3.2 Gen1 (2 x 10pin, P=2.00 pin wafer) (5Gb/s)
4 x USB 2.0 (2 x 4 pin, P=2.54)
4 x RS-232 (2 x 5 pin, P=2.54)
**1 x PCIe Gen4 x16 slot
**1 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen3 x1 slot
1 x PCI slot
1 x M.2 M Key (2242/2280, PCIe x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support
**1 x PCIe Gen4 x16 slot
**1 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen3 x1 slot
1 x PCI slot
1 x M.2 M Key (2242/2280, PCIe x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support
IEI IMBA-R680 ATX motherboard photo

IMBA-R680

ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, and RoHS
CPU: LGA1700 socket supports  12th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
Chipset: Intel®R680E
CPU: LGA1700 socket supports  12th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
Chipset: Intel®R680E
Four 288-pin Dual-Channel DDR5 (up to 4400 MHz) SDRAM Unbuffered DIMMs supported up to 128GB (ECC&non-ECC support)
Four 288-pin Dual-Channel DDR5 (up to 4400 MHz) SDRAM Unbuffered DIMMs supported up to 128GB (ECC&non-ECC support)
Triple independent display

1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 3840*2160 @30Hz)
1 x iDPM support IEI eDP/ LVDS/ VGA module
Triple independent display

1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 3840*2160 @30Hz)
1 x iDPM support IEI eDP/ LVDS/ VGA module
External I/O Interface:
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
Internal I/O Interface:
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
4 x USB 2.0 (2x4 pin, P=2.00)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)
4 x RS-232 (2x5 pin, P=2.54)
External I/O Interface:
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
Internal I/O Interface:
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
4 x USB 2.0 (2x4 pin, P=2.00)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)
4 x RS-232 (2x5 pin, P=2.54)
** 2 x PCIe Gen5 x16 slot with x8 Signal
** 1 x PCIe Gen4 x4 open-end
2 x PCIe Gen4 x4 open-end
2 x PCIe Gen3 x1
2 x M.2 M Key (2242/2280, PCIe x4) NVMe supported
** 2 x PCIe Gen5 x16 slot with x8 Signal
** 1 x PCIe Gen4 x4 open-end
2 x PCIe Gen4 x4 open-end
2 x PCIe Gen3 x1
2 x M.2 M Key (2242/2280, PCIe x4) NVMe supported
KINO-ADL mini-ITX SBC supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor

KINO-ADL-H610

mini-ITX SBC supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS
● CPU: LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
● CPU: LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
Two 260-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
Two 260-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304 @60Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304 @60Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface:
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface:
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
1 x PCIe Gen4 x16
1 x M.2 M key (2280, PCIe Gen3 X 4)
1 x M.2 A key (2230, PCIe Gen3 x1 &USB 2.0)
1 x PCIe Gen4 x16
1 x M.2 M key (2280, PCIe Gen3 X 4)
1 x M.2 A key (2230, PCIe Gen3 x1 &USB 2.0)

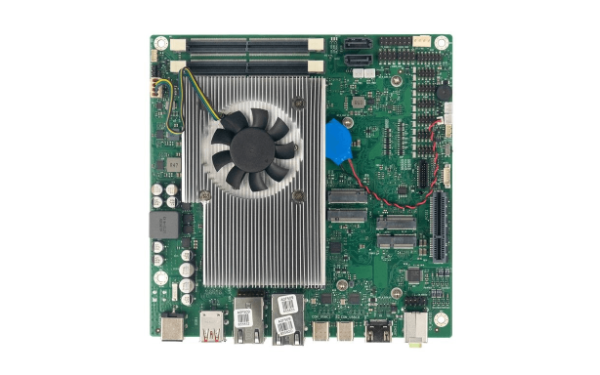

KINO-ADL-P

Mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-P SoC Processor, DDR4 SO-DIMM, 12~28V DC input, Triple Display, Triple Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, RoHS
● CPU:
Intel® 12/13th mobile Alder Lake-P/Raptor Lake-P on-board processor, support Intel® Core™ i9/i7/i5/i3 and Celeron® CPU
● CPU:
Intel® 12/13th mobile Alder Lake-P/Raptor Lake-P on-board processor, support Intel® Core™ i9/i7/i5/i3 and Celeron® CPU
Two 260-pin Dual-Channel 3200 MHz DDR4 SO-DIMMs, supported up to 64GB
Two 260-pin Dual-Channel 3200 MHz DDR4 SO-DIMMs, supported up to 64GB
● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x RS-232/422/485
● Internal I/O Interface:
2 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
● External I/O Interface:
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x RS-232/422/485
● Internal I/O Interface:
2 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
1 x PCIe Gen3 x4 Slot Open-ended
1 x M.2 E Key for WIFI & BT 2230(PCIe Gen3 x1 & USB 2.0)
1 x M.2 B key 3042 (PCIe Gen3 x2/USB2.0)
1 x M.2 M key 2280 (PCIe Gen3 x4)
1 x PCIe Gen3 x4 Slot Open-ended
1 x M.2 E Key for WIFI & BT 2230(PCIe Gen3 x1 & USB 2.0)
1 x M.2 B key 3042 (PCIe Gen3 x2/USB2.0)
1 x M.2 M key 2280 (PCIe Gen3 x4)
KINO-ADL-PS Front

KINO-ADLPS

Mini-ITX SBC support Intel® Alder Lake-PS Core™ i9/i7/i5/i3 and Celeron® processor, DDR4 SO-DIMM, triple display with DP, HDMI™ and iDPM slots, SATA, Dual Intel 2.5GbE, USB3.2, M.2, RoHS
● CPU:
Intel® Alder Lake-PS Core™ i9/i7/i5/i3 and Celeron® processor
● CPU:
Intel® Alder Lake-PS Core™ i9/i7/i5/i3 and Celeron® processor
Two 3200 MHz DDR4 SO-DIMMs
Two 3200 MHz DDR4 SO-DIMMs
● Triple Independent Displays
1 x DP 1.4 (up to 4096 x 2304 @60Hz)
1 x HDMI™ 2.0 (up to 4096 x 2304 @60Hz)
1 x iDPM support iEi eDP/LVDS/VGA module
● Triple Independent Displays
1 x DP 1.4 (up to 4096 x 2304 @60Hz)
1 x HDMI™ 2.0 (up to 4096 x 2304 @60Hz)
1 x iDPM support iEi eDP/LVDS/VGA module
● External I/O Interface
2 x RS232/422/485 via DB-9 (RS-485 support AFC)
2 x USB 2.0 (Type A)
4 x USB 3.2 Gen 2 (Type A) (10Gb/s)
● Internal I/O Interface
1 x SATA 6Gb/s
2 x USB 2.0(2x4 pin, P=2.00)
4 x RS-232 (2x5 pin, p=2.00)
● External I/O Interface
2 x RS232/422/485 via DB-9 (RS-485 support AFC)
2 x USB 2.0 (Type A)
4 x USB 3.2 Gen 2 (Type A) (10Gb/s)
● Internal I/O Interface
1 x SATA 6Gb/s
2 x USB 2.0(2x4 pin, P=2.00)
4 x RS-232 (2x5 pin, p=2.00)
1 x PCIe Gen3 x4 (x4 & x2 + x2 & x2 + x1 + x1)
1 x M.2 A Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB2.0)
1 x M.2 M Key 2242/3080 (PCIe Gen4 x4)
1 x PCIe Gen3 x4 (x4 & x2 + x2 & x2 + x1 + x1)
1 x M.2 A Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB2.0)
1 x M.2 M Key 2242/3080 (PCIe Gen4 x4)
KINO-EHL-J6412 mini-itx motherboard supports Intel® Elkhart Lake Celeron® on-board SoC

KINO-EHL

Mini-ITX SBC supports Intel® Elkhart Lake Celeron® on-board SoC with 8GB LPDDR4x memory on board default, Triple Independent Display with HDMI™, DP and iDPM, SATA 6Gb/s, Dual 2.5GbE, USB 3.2, M.2, 12V DC input and RoHS
Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Onboard LPDDR4x-3200MHz 8GB, system up to 16GB
Onboard LPDDR4x-3200MHz 8GB, system up to 16GB
Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
External I/O Interface :
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
2 x RS-232
Internal I/O Interface :
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 X RS-422/485 (1x4 pin,P=2.0)
External I/O Interface :
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
2 x RS-232
Internal I/O Interface :
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 X RS-422/485 (1x4 pin,P=2.0)
1 x PCIe x4 Slot Open-ended (PCIe Gen3 x1 signal)
1 x M.2 A key (2230) (PCIex1 & USB 2.0)
1 x M.2 B key (3052/3042/2242/2280) w/ SIM holder (PCIe x2 / USB 2.0)
1 x PCIe x4 Slot Open-ended (PCIe Gen3 x1 signal)
1 x M.2 A key (2230) (PCIex1 & USB 2.0)
1 x M.2 B key (3052/3042/2242/2280) w/ SIM holder (PCIe x2 / USB 2.0)
IEI KINO-TGL-U Mini-ITX Industrial Motherboard Supports Dual Intel® 2.5 GbE LAN

KINO-TGL-U

Thin Mini-ITX SBC supports Intel® Tiger Lake-UP3 Processor, 9 ~ 36V DC input, triple independent displays, HDMI™, DP, iDPM, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen2, M.2 and RoHS
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
Two 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 64 GB)
Two 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 64 GB)
Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
External I/O Interface:
4 x USB 3.2 Gen2 (10Gb/s) by USB Type-C
Internal I/O Interface:
2 x SATA 6Gb/s (Support RAID 0/1)
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 by 4-pin (1x4) wafer (RS-485 supports AFC)
5 x RS-232 by 10-pin header (2x5 pin, P=2.0)
External I/O Interface:
4 x USB 3.2 Gen2 (10Gb/s) by USB Type-C
Internal I/O Interface:
2 x SATA 6Gb/s (Support RAID 0/1)
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 by 4-pin (1x4) wafer (RS-485 supports AFC)
5 x RS-232 by 10-pin header (2x5 pin, P=2.0)
1 x PCIe x8 slot (PCIe 4.0 with x4 signal, open-ended)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/2280 M-key slot (PCIe x2)
1 x PCIe x8 slot (PCIe 4.0 with x4 signal, open-ended)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/2280 M-key slot (PCIe x2)
IMBA-Q471 ATX Industrial Motherboard

IMBA-Q471

ATX Motherboard Supports 10 th / 11 th Gen. LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® Processors, DDR4, Triple Independent Displays, Triple 2.5GbE, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset: Intel® Q470/Q470E
CPU: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset: Intel® Q470/Q470E
Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory
Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory
Triple independent display
1 x VGA (up to 1920 x 1080 @ 60 Hz)
1 x DP (up to 4096 x 2304 @ 60 Hz)
1 x HDMI (up to 4096 x 2304 @ 30 Hz)
Triple independent display
1 x VGA (up to 1920 x 1080 @ 60 Hz)
1 x DP (up to 4096 x 2304 @ 60 Hz)
1 x HDMI (up to 4096 x 2304 @ 30 Hz)
External I/O Interface:
1 x RS-232 DB-9
2 x USB 2.0 (Type-A)
2 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
2 x USB 3.2 Gen 2 (10Gb/s) (Type-A)

Internal I/O Interface:
6 x USB 2.0 (2x4 pin, p=2.54)
2 x USB 3.2 Gen1 (2x10 pin, p=2.0)
2 x RS-232 (2x5 pin, p=2.54)
1 x RS-422/485 (1x4 pin, p=2.0)
External I/O Interface:
1 x RS-232 DB-9
2 x USB 2.0 (Type-A)
2 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
2 x USB 3.2 Gen 2 (10Gb/s) (Type-A)

Internal I/O Interface:
6 x USB 2.0 (2x4 pin, p=2.54)
2 x USB 3.2 Gen1 (2x10 pin, p=2.0)
2 x RS-232 (2x5 pin, p=2.54)
1 x RS-422/485 (1x4 pin, p=2.0)
2 x PCIe Gen3 x16 (x8 signal)
3 x PCIe Gen3 x4
2 x PCIe Gen3 x1
M.2 M key (2242/2280) with PCIe x2 & SATA signal
2 x PCIe Gen3 x16 (x8 signal)
3 x PCIe Gen3 x4
2 x PCIe Gen3 x1
M.2 M key (2242/2280) with PCIe x2 & SATA signal
KINO-DH420 Mini-ITX SBC

KINO-DH420

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3/ Pentium®/Celeron® processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
CPU: LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E
CPU: LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Dual independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2160 @30Hz)
Dual independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2160 @30Hz)
External I/O Interface:
2 x RS-232
2 x USB 2.0
4 x USB 3.2 Gen1 (5Gb/s)
Internal I/O Interface:
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)
External I/O Interface:
2 x RS-232
2 x USB 2.0
4 x USB 3.2 Gen1 (5Gb/s)
Internal I/O Interface:
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)
1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2 /USB 2.0)
1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2 /USB 2.0)
IMBA-H420 ATX Industrial Motherboard

IMBA-H420

ATX motherboard supports 14nm LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Triple displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® H420E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® H420E
Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Triple display
1 x VGA (up to 1920 x 1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2160@30Hz)
Triple display
1 x VGA (up to 1920 x 1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2160@30Hz)
External I/O Interface:
4 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
1 x RS-232
1 x KB/MS
Internal I/O Interface:
1 x RS-232/422/485 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (no RAID)
External I/O Interface:
4 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
1 x RS-232
1 x KB/MS
Internal I/O Interface:
1 x RS-232/422/485 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (no RAID)
1 x PCIe Gen3 x16
1 x PCIe Gen3 x4
4 x PCI
1 x PCIe Gen3 x16
1 x PCIe Gen3 x4
4 x PCI
IMBA-Q470 ATX Industrial Motherboard

IMBA-Q470

ATX motherboard supports LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
Triple independent displays
1 x VGA (up to 1920 x 1080 @60Hz)
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
Triple independent displays
1 x VGA (up to 1920 x 1080 @60Hz)
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
External I/O Interface
2 x USB 3.2 Gen2x2 (Type-C) (20Gb/s)
1 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
1 x RS-232

Internal I/O Interface
6 x SATA 6G/s (support RAID 0/1/5/10)
4 x USB 2.0 (2x4pin,P=2.0)
3 x RS-232 (2x5pin,P=2.54)
External I/O Interface
2 x USB 3.2 Gen2x2 (Type-C) (20Gb/s)
1 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
1 x RS-232

Internal I/O Interface
6 x SATA 6G/s (support RAID 0/1/5/10)
4 x USB 2.0 (2x4pin,P=2.0)
3 x RS-232 (2x5pin,P=2.54)
2 x PCIe x16 (Slot2,4) with x8 Signal Gen5
3 x PCIe x4 open-end (Slot1&5&6) Gen4
2 x PCIe x1 (Slot 3&7) Gen3
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support
1 x M.2 B Key (3042/3052/2280) (PCIe x2 w/ USB3.2 Gen1/SATA) NVMe support
1 x M.2 B Key (2280) (SATA)
2 x PCIe x16 (Slot2,4) with x8 Signal Gen5
3 x PCIe x4 open-end (Slot1&5&6) Gen4
2 x PCIe x1 (Slot 3&7) Gen3
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support
1 x M.2 B Key (3042/3052/2280) (PCIe x2 w/ USB3.2 Gen1/SATA) NVMe support
1 x M.2 B Key (2280) (SATA)
KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor

KINO-KX

Rich I/O Mini-ITX with Zhaoxin 16nm KX-6000 Series Processor
● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200
● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200
2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)
2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)
1 x VGA (up to 1920x1080@60Hz)
1 x DVI-I (up to 1920x1080@60Hz)
1 x VGA (up to 1920x1080@60Hz)
1 x DVI-I (up to 1920x1080@60Hz)
● External I/O Interface
10 x USB 2.0
4 x USB 3.2 Gen 1 (5Gb/s)
1 x KB/MS

● Internal I/O Interface
2 x RS-232 (2x5 pin, P=2.0)
8 x RS-232 (2x20 pin, P=2.0)
4 x SATA 6G/s
● External I/O Interface
10 x USB 2.0
4 x USB 3.2 Gen 1 (5Gb/s)
1 x KB/MS

● Internal I/O Interface
2 x RS-232 (2x5 pin, P=2.0)
8 x RS-232 (2x20 pin, P=2.0)
4 x SATA 6G/s
● Expansion
1 x Full-size PCIe Mini card slot
1 x PCIe x16 slot (with x8 Gen 3.0 signal)
● Expansion
1 x Full-size PCIe Mini card slot
1 x PCIe x16 slot (with x8 Gen 3.0 signal)

IMBA-C2460

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor per Intel® C246, DDR4, triple displays, dual GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU: LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

Chipset: Intel® C246
CPU: LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

Chipset: Intel® C246
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB (ECC&non-ECC support)
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB (ECC&non-ECC support)
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal Displayport (up to 4096 x 2304@60Hz)
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal Displayport (up to 4096 x 2304@60Hz)
*External I/O Interface
2 x USB 3.2 Gen 2 (10Gb/s)
1 x RS-232
2 x USB 3.2 Gen 1 (5Gb/s)
1 x PS/2 KB/MS
2 x USB 2.0

*Internal I/O Interface
1 x 180º Displyport
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
*External I/O Interface
2 x USB 3.2 Gen 2 (10Gb/s)
1 x RS-232
2 x USB 3.2 Gen 1 (5Gb/s)
1 x PS/2 KB/MS
2 x USB 2.0

*Internal I/O Interface
1 x 180º Displyport
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
*Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)
*Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)

IMBA-H310

ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310
● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310
Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
● Triple independent display
1 x DVI-D (up to 2560x1600@60Hz)
1 x VGA (UP to 1920x1200@60Hz)
1 x Internal 180⁰ DP (up to 4096x2304@60Hz)
● Triple independent display
1 x DVI-D (up to 2560x1600@60Hz)
1 x VGA (UP to 1920x1200@60Hz)
1 x Internal 180⁰ DP (up to 4096x2304@60Hz)
● External I/O Interface
4 x USB 3.2 Gen 1 (5Gb/s)
2 x RS-232
2 x USB 2.0
1 x KB/MS

● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
4 x SATA 6G/s (no RAID)
● External I/O Interface
4 x USB 3.2 Gen 1 (5Gb/s)
2 x RS-232
2 x USB 2.0
1 x KB/MS

● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
4 x SATA 6G/s (no RAID)
● Expansion
1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen2)
4 x PCI
● Expansion
1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen2)
4 x PCI

IMBA-H112

ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI™, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110
˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110
Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot
˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot

KINO-DH110

Mini-ITX SBC supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® Processor, DDR4, Dual Independent Displays, Dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor
LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor
Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB
Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB
* Dual independent display
1 x HDMI (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
* Dual independent display
1 x HDMI (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485
* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485
* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)
* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)

KINO-DH310

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310
LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310
Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB
Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB
* Dual independent display
2 x HDMI (up to 4096x2160@30Hz)
1 x internal Displayport (up to 4096x2304@60Hz) (optional)
* Dual independent display
2 x HDMI (up to 4096x2160@30Hz)
1 x internal Displayport (up to 4096x2304@60Hz) (optional)
● External I/O Interface
4 x USB 3.0
2 x RS-232
● Internal I/O Interface
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5/12V SATA power connector (No RAID)
● External I/O Interface
4 x USB 3.0
2 x RS-232
● Internal I/O Interface
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5/12V SATA power connector (No RAID)
● Expansion
1 x PCIe x16
1 x M.2 M key (2280, Gen2 PCIe x2 only)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)
● Expansion
1 x PCIe x16
1 x M.2 M key (2280, Gen2 PCIe x2 only)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)
IMBA-Q370 ATX Industrial Motherboard

IMBA-Q370

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1 Gen 2 (10Gb/s), SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370
LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)
● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)
● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)
gKINO-DMF mini-itx Industrial Motherboard

gKINO-DMF

Mini-ITX SBC supports AMD Merlin Falcon SoC Proccessor
FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB
Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB
Triple Independent Display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x DP++ (up to 3840x2160@60Hz)
Triple Independent Display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x MicroSD card slot
2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA with 5V/12V output
1 x MicroSD card slot
2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA with 5V/12V output
IMBA-H110 ATX Industrial Motherboard

IMBA-H110

ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3, Celeron® and Pemtium® processor
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Display Output : Dual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
Display Output : Dual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (support hot plug)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)
1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (support hot plug)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot

IMB-H110

microATX Motherboard supports 14nm LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB
Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB
Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP
Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)
Expansion:
1 x PCIe x16 slot (Gen3)
1 x Full-size PCIe Mini card slot
1 x PCIe x1 slot (Gen2)
2 x PCI slot
Expansion:
1 x PCIe x16 slot (Gen3)
1 x Full-size PCIe Mini card slot
1 x PCIe x1 slot (Gen2)
2 x PCI slot

IMBA-C2360

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series, Core™ i3, Pentium®, Celeron® processor per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB
Display Output : Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
Display Output : Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s
1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s
Expansion:
1 x Full-size PCIe Mini card slot
2 x PCIe x8 slot (Gen3)
2 x PCI slot
3 x PCIe x4 slot (Gen3)
Expansion:
1 x Full-size PCIe Mini card slot
2 x PCIe x8 slot (Gen3)
2 x PCI slot
3 x PCIe x4 slot (Gen3)

KINO-AQ170

Mini-ITX SBC supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170
LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170
LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170
Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)
Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)
Display Output : Triple independent displays
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
1 x HDMI/DP (up to 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Display Output : Triple independent displays
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
1 x HDMI/DP (up to 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
4 x USB 2.0 (2x4 pin, P=2.0)
Expansion:
1 x Full-size PCIe Mini slot (support mSATA)
1 x PCIe x8 slot
Expansion:
1 x Full-size PCIe Mini slot (support mSATA)
1 x PCIe x8 slot
KINO-DQM170 Industrial Motherboard

KINO-DQM170

Mini-ITX SBC supports 6th Intel® Core™ Mobile CPU
Intel® QM170
6th generation Intel® Core™ mobile processor
Intel® Core™ i7-6820EQ (3.5GHz, quad-core, 8M cache, TDP=45W)
Intel® Core™ i5-6440EQ (3.4GHz, quad-core, 6M cache, TDP=45W)
Intel® Core™ i3-6102E (1.90GHz, dual-core, 3M cache, TDP=25W)
Intel® Celeron® G3902E (1.60GHz, dual-core, 2M cache, TDP=25W)
Intel® QM170
6th generation Intel® Core™ mobile processor
Intel® Core™ i7-6820EQ (3.5GHz, quad-core, 8M cache, TDP=45W)
Intel® Core™ i5-6440EQ (3.4GHz, quad-core, 6M cache, TDP=45W)
Intel® Core™ i3-6102E (1.90GHz, dual-core, 3M cache, TDP=25W)
Intel® Celeron® G3902E (1.60GHz, dual-core, 2M cache, TDP=25W)
Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMMs supported
(system max. 64 GB)
Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMMs supported
(system max. 64 GB)
Triple independent display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI/DVI converter (up to 4096x2160@60Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Triple independent display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI/DVI converter (up to 4096x2160@60Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x KB/MS (1x6 pin, P=2.00)
4 x SATA 6G/s (RAID 0/1/5/10 support)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x USB 2.0 (2x4 pin, P=2.0)
3 x RS-232 (1x9 pin, P=1.25)
1 x KB/MS (1x6 pin, P=2.00)
4 x SATA 6G/s (RAID 0/1/5/10 support)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x USB 2.0 (2x4 pin, P=2.0)
3 x RS-232 (1x9 pin, P=1.25)
Expansion:
1 x Full-size PCIe Mini (support mSATA)
1 x M.2 2230 (A key)
1 x Half-size PCIe Mini
1 x PCIe x16 slot
Expansion:
1 x Full-size PCIe Mini (support mSATA)
1 x M.2 2230 (A key)
1 x Half-size PCIe Mini
1 x PCIe x16 slot

tKINO-BW

Thin Mini-ITX SBC supports 14nm Intel® Pentium®/Celeron® on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB
Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB
Display Output : Triple independent display
1 x HDMI/DP (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200@60Hz)
Display Output : Triple independent display
1 x HDMI/DP (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200@60Hz)
2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485
2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD card slot
1 x PCIe x1
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD card slot
1 x PCIe x1
IMBA-Q170 ATX Industrial Motherboard

IMBA-Q170

ATX motherboard supports 14nm LGA1151 Intel® CPU Intel® Q170,
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Display Output : Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
Display Output : Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT
4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x8 slot (Gen3)
3 x PCIe x4 slot (Gen3)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x8 slot (Gen3)
3 x PCIe x4 slot (Gen3)

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)
Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)

IMB-H810

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB
Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB
Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0
8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot

IMBA-H810

ATX motherboard supports 22nm LGA 1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)
Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)
Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0
1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)
Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)

eKINO-BT

Mini-ITX SBC supports AUPS sub-system, 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)
Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)
VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0
2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1
Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1

KINO-DBT

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC,
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)
2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)
Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2

Embedded Board

IEI provides various sizes of embedded boards from Pico-ITX to 5.25” SBC and can meet different applications involving data acquisition, video processing, telecommunication, networking, motion control plus the associated field wiring termination, I/O circuit protection, etc.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features
HYPER-EHL

HYPER-EHL

Pico-ITX SBC supports Intel® Celeron J6412/N6210 on-board SoC, with 4GB LPDDR4x memory on board default, with HDMI™, iDPM, M.2 M key, USB 3.2, iSATA 6GB/s, COM, PCIe x4 for riser card and RoHS
● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
● Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M Cache, TDP=6.5W)
● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
● Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M Cache, TDP=6.5W)
LPDDR4x-3200Gbps 4GB,up to 8GB
LPDDR4x-3200Gbps 4GB,up to 8GB
● Dual independent display:
1 x HDMI (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Dual independent display:
1 x HDMI (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface:
1 x iSATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-232/422/485 (1x9 pin, P=1.25)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface:
1 x iSATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-232/422/485 (1x9 pin, P=1.25)
1 x PCIe Gen3 x4
1 x M.2 M key (2242,PCIe Gen3 X 2)
1 x PCIe Gen3 x4
1 x M.2 M key (2242,PCIe Gen3 X 2)
HYPER-RK3566 Front

HYPER-RK3566

Pico-ITX SBC with RK3566, 2/4GB LPDDR4/4X, 16/32GB eMMC, HDMI™2.0, MIPI DSI, LVDS, 1 x 1GbE RJ45, 1 x USB3.0, 3 x USB2.0, 2 x (RS232+RS485), Options: WIFI5/6 + BT, 12V DC IN, Debian 10 / Android 12, RoHS
Rockchip RK3566 (Quad-code Cortex-A55 up to 1.8Ghz)
Rockchip RK3566 (Quad-code Cortex-A55 up to 1.8Ghz)
One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB
One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB
Single screen/both screen at the same time
display with
● HDMI (Up to 1080p@120Hz and 4096 x 2304@60Hz),
● LVDS,
● MIPI (Up to 1920 x 1080@60Hz display output for single MIPI mode and 2560 x 1440@60Hz for dual-MIPI mode)
Single screen/both screen at the same time
display with
● HDMI (Up to 1080p@120Hz and 4096 x 2304@60Hz),
● LVDS,
● MIPI (Up to 1920 x 1080@60Hz display output for single MIPI mode and 2560 x 1440@60Hz for dual-MIPI mode)
● External I/O Interface
1 x DC Port
1 x Mirco SD Slot
1 x USB3.0 TypeA
1 x USB2.0 Type A
1 x HDMI2.0
1 x 1GbE RJ45
● Internal I/O Interface
8 bit-GPIO Pinheader
2 x (RS232+RS485) Pinheader
1 x I²C Connector
1 x MIPI DSI
1 x Console port
1 x Mic Connector
1 x Speaker Connector
1 x LVDS BL Connector
1 x LVDS
1 x RTC Battery Connector
2 x USB2.0 Connector
● External I/O Interface
1 x DC Port
1 x Mirco SD Slot
1 x USB3.0 TypeA
1 x USB2.0 Type A
1 x HDMI2.0
1 x 1GbE RJ45
● Internal I/O Interface
8 bit-GPIO Pinheader
2 x (RS232+RS485) Pinheader
1 x I²C Connector
1 x MIPI DSI
1 x Console port
1 x Mic Connector
1 x Speaker Connector
1 x LVDS BL Connector
1 x LVDS
1 x RTC Battery Connector
2 x USB2.0 Connector
1 x B TO B Connector
1 x Micro SD Card Slot
1 x B TO B Connector
1 x Micro SD Card Slot
NANO-ADL-P Front

NANO-ADL-P

EPIC SBC supports Intel® Alder Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with Dual HDMI™, DP, IDPM, M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO, PCIe x4 for riser card and RoHS
12th Gen. Intel® mobile Alder Lake-P on board SoC
12th Gen. Intel® mobile Alder Lake-P on board SoC
On-board LPDDR4x 3200 MHz 8GB up to 16GB
On-board LPDDR4x 3200 MHz 8GB up to 16GB
● Quadruple independent display
2 x HDMI 1.4a (up to 4096 x 2160@30Hz)
1 x DP 1.4a (up to 4096 x 2160 @60Hz)
1 x IDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Quadruple independent display
2 x HDMI 1.4a (up to 4096 x 2160@30Hz)
1 x DP 1.4a (up to 4096 x 2160 @60Hz)
1 x IDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
● External I/O Interface:
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280
1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280
NANO-EHL Front

NANO-EHL

EPIC SBC supports Intel® Celeron® on-board SoC, with 8GB LPDDR4x memory on board default, with DP, HDMI™, iDPM, M.2 A key, M.2 B key, USB 3.1, SATA 6Gb/s, COM, iAUDIO, PCIe x4 (x2 signal) for riser card and RoHS
● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
LPDDR4x-3200Gbps 8GB, up to 16GB
LPDDR4x-3200Gbps 8GB, up to 16GB
● Triple independent displays
1 x DP 1.4 (up to 4096 x 2160 @60Hz)
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Triple independent displays
1 x DP 1.4 (up to 4096 x 2160 @60Hz)
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 2.0 Type-A
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
1 x iSATA
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 2.0 Type-A
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
1 x iSATA
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x M.2 B Key (2280/2242) PCIe x2&USB2.0
1 x M.2 A Key (2230) PCIe x1/USB2.0
1 x PCIe x4 slot (PCIe Gen3 x2) (x2 or x1+x1)
1 x M.2 B Key (2280/2242) PCIe x2&USB2.0
1 x M.2 A Key (2230) PCIe x1/USB2.0
1 x PCIe x4 slot (PCIe Gen3 x2) (x2 or x1+x1)
WAFER-ADL-N Front

WAFER-ADL-N

3.5 SBC supports Intel® Atom™ Alder Lake-N Celeron and Pentium on-board SoC, triple display with DP ,HDMI™ and iDPM slot, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM and RoHS, 0°C ~60°C
12th Gen. Intel® mobile Alder Lake-N on board SoC
12th Gen. Intel® mobile Alder Lake-N on board SoC
On-board LPDDR5x 8GB, up to 16GB
On-board LPDDR5x 8GB, up to 16GB
● Triple Independent Displays
1 x HDMI 2.0 (up to 4096x2160 @ 30Hz)
1 x DP 1.4a (up to 4096x2160 @ 60Hz)
1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● Triple Independent Displays
1 x HDMI 2.0 (up to 4096x2160 @ 30Hz)
1 x DP 1.4a (up to 4096x2160 @ 60Hz)
1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
● External I/O Interface:
2 x USB 3.2 Gen 2
2 x USB 2.0
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
● External I/O Interface:
2 x USB 3.2 Gen 2
2 x USB 2.0
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2280 (PCIe gen3 x1)
1 x PCIe Gen3 x4 Slot (x2 signal)
1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2280 (PCIe gen3 x1)
1 x PCIe Gen3 x4 Slot (x2 signal)
WAFER-ADL-P Front

WAFER-ADL-P

3.5 SBC supports Intel® Alder Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS
12th Gen. Intel® mobile Alder Lake-P on board SoC
12th Gen. Intel® mobile Alder Lake-P on board SoC
On-board LPDDR4x 3200 MHz 8GB up to 16GB
On-board LPDDR4x 3200 MHz 8GB up to 16GB
● Quadruple independent display
2 x HDMI 1.4a (up to 4096 x 2160@30Hz)
2 x DP 1.4a (up to 4096 x 2160 @60Hz)
● Quadruple independent display
2 x HDMI 1.4a (up to 4096 x 2160@30Hz)
2 x DP 1.4a (up to 4096 x 2160 @60Hz)
● External I/O Interface:
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
● External I/O Interface:
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280
1 x M.2 M Key 2242/2280
1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280
1 x M.2 M Key 2242/2280
WAFER-EHL-J6412_Embedded_Board supports Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)

WAFER-EHL

3.5" SBC supports Intel® Celeron® J6412 on-board SoC, triple display with DP, HDMI™ and IDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO and RoHS, 0°C ~60°C
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Onboard LPDDR4x-3200MHz support up to 8 GB
Onboard LPDDR4x-3200MHz support up to 8 GB
Triple Independent Displays:
1 x HDMI 1.4 (up to 4096x2160 @ 30Hz)
1 x DP 1.4 (up to 4096x2160 @ 60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)
Triple Independent Displays:
1 x HDMI 1.4 (up to 4096x2160 @ 30Hz)
1 x DP 1.4 (up to 4096x2160 @ 60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)
External I/O Interface:
2 x USB 3.2 Gen2 (10Gb/s)
Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
External I/O Interface:
2 x USB 3.2 Gen2 (10Gb/s)
Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1/USB 2.0 signal)
1 x M.2 B key (3042) w/ SIM holder (PCIe Gen3 x2/USB 2.0 signal)
1 x PCIe x4 (PCIe Gen3 x2 signal) (x2 or x1+x1)
1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1/USB 2.0 signal)
1 x M.2 B key (3042) w/ SIM holder (PCIe Gen3 x2/USB 2.0 signal)
1 x PCIe x4 (PCIe Gen3 x2 signal) (x2 or x1+x1)
WAFER-EHL-x6000EWC Front

WAFER-EHL-x6000

3.5” SBC supports Intel® Elkhart Lake Atom™ x6000 series on-board SoC, triple display with DP, HDMI and iDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO, PSE Module, +12V~28V DC input, RoHS, -20°C ~85°C
● On board Intel® Elkhart Lake Atom™ x6000 series / Pentium® / Celeron® processor
Intel® Atom™ x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
Intel® Atom™ x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
Intel® Atom™ x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)
● On board Intel® Elkhart Lake Atom™ x6000 series / Pentium® / Celeron® processor
Intel® Atom™ x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
Intel® Atom™ x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
Intel® Atom™ x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)
On-board LPDDR4x 8GB, up to 16 GB
On-board LPDDR4x 8GB, up to 16 GB
● Triple Independent Displays
1 x HDMI™ 1.4 (up to 4096 x 2160@30Hz)
1 x DP 1.2 (up to 4096 x 2160@60Hz)
1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA Module)
● Triple Independent Displays
1 x HDMI™ 1.4 (up to 4096 x 2160@30Hz)
1 x DP 1.2 (up to 4096 x 2160@60Hz)
1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA Module)
● External I/O Interface:
2 x USB 3.2 Gen 2
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2*4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
● External I/O Interface:
2 x USB 3.2 Gen 2
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2*4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
3.5” SBC supports Intel® Elkhart Lake Atom™ x6000 series on-board SoC, triple display with DP, HDMI™ and iDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO, PSE Module, +12V~28V DC input, RoHS, -20°C ~85°C
3.5” SBC supports Intel® Elkhart Lake Atom™ x6000 series on-board SoC, triple display with DP, HDMI™ and iDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO, PSE Module, +12V~28V DC input, RoHS, -20°C ~85°C

WAFER-EHL2

3.5” SBC supports Intel® Celeron® J6412 on-board SoC, triple display with DP, HDMI™ and IDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO and RoHS, 0°C ~60°C
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Onboard 8GB 3200MHz LPDDR4x support up to 16 GB
Onboard 8GB 3200MHz LPDDR4x support up to 16 GB
● Triple Independent Displays
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x DP 1.4 (up to 4096 x 2160 @60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)
● Triple Independent Displays
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x DP 1.4 (up to 4096 x 2160 @60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)
● External I/O Interface
2 x USB 3.2 Gen2 (10Gb/s)
● Internal I/O Interface
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x RS-232 (1x9 pin, p=1.25)
● External I/O Interface
2 x USB 3.2 Gen2 (10Gb/s)
● Internal I/O Interface
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x RS-232 (1x9 pin, p=1.25)
1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1 / USB 2.0 signal)
1 x M.2 B key (3042/2242) w/ SIM holder (PCIe Gen3 x2 / USB 2.0 signal)
1 x PCIe x4(PCIe Gen3 x2 signal)(x2 or x1 + x1)
1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1 / USB 2.0 signal)
1 x M.2 B key (3042/2242) w/ SIM holder (PCIe Gen3 x2 / USB 2.0 signal)
1 x PCIe x4(PCIe Gen3 x2 signal)(x2 or x1 + x1)
WAFER-IMX8MP Front
icon-new

WAFER-IMX8MP

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS
NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)
NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)
4GB LPDDR4-3200
4GB LPDDR4-3200
1 x MIPI DSI 4 lanes (40-pin 0.5mm FPC 90°)
1 x HDMI™ output 2.0a Type A, up to 4K
1 x MIPI DSI 4 lanes (40-pin 0.5mm FPC 90°)
1 x HDMI™ output 2.0a Type A, up to 4K
2 x GbE RJ45
2 x USB 5Gbps Type A
1 x Full RS-232/422/485 (DB9 Port)
1 x RS-232/RS-485 (2x3 pin header)
1 x I²C (for Touch, 8-pin 2.0mm FPC)
GPIO 8 bit (4 in / 4 out, pin header)
2 x GbE RJ45
2 x USB 5Gbps Type A
1 x Full RS-232/422/485 (DB9 Port)
1 x RS-232/RS-485 (2x3 pin header)
1 x I²C (for Touch, 8-pin 2.0mm FPC)
GPIO 8 bit (4 in / 4 out, pin header)
3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS
3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS
WAFER-RK3568 Front

WAFER-RK3568

3.5”SBC supports RK3568 with 2/4GB LPDDR4/X, 16/32GB eMMC. Triple display with HDMI™, MIPI and eDP. USB 3.0 x 2. Built-In USB 2.0 x 3. RoHS compliant
Rockchip RK3568 (Quad-code Cortex-A55 up to 2.0Ghz)
Rockchip RK3568 (Quad-code Cortex-A55 up to 2.0Ghz)
One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB
One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB
Triple display with
● HDMI (Up to 1080p@120Hz and 4096 x 2304@60Hz),
● MIPI (Up to 1920 x 1080@60Hz display output for single MIPI mode and 2560 x 1440@60Hz for dual-MIPI mode) and
● eDP (Up to 2560 x 1650@60Hz)
Triple display with
● HDMI (Up to 1080p@120Hz and 4096 x 2304@60Hz),
● MIPI (Up to 1920 x 1080@60Hz display output for single MIPI mode and 2560 x 1440@60Hz for dual-MIPI mode) and
● eDP (Up to 2560 x 1650@60Hz)
● External:
DC Jack
1 x DB9 (2 x RS232 + 2 x RS485)
2 x USB 3.0 TypeA
1 x HDMI 2.0
2 x 1GbE RJ45
● Internal:
1 x 4 pin DC Port
1 x Line Out + Mic In
1 x Mic Connector
1 x Speaker Connector
1 x USB 2.0 Connector
1 x USB 2.0 Pinheader
1 x 14-bit GPIO Pinheader
1 x eDP
1 x MIPI DSI
1 x MIPI CSI
● External:
DC Jack
1 x DB9 (2 x RS232 + 2 x RS485)
2 x USB 3.0 TypeA
1 x HDMI 2.0
2 x 1GbE RJ45
● Internal:
1 x 4 pin DC Port
1 x Line Out + Mic In
1 x Mic Connector
1 x Speaker Connector
1 x USB 2.0 Connector
1 x USB 2.0 Pinheader
1 x 14-bit GPIO Pinheader
1 x eDP
1 x MIPI DSI
1 x MIPI CSI
1 x M.2 B key Slot
1 x B TO B Connector
1 x SIM Slot
1 x Micro SD Card Slot
1 x M.2 B key Slot
1 x B TO B Connector
1 x SIM Slot
1 x Micro SD Card Slot
WAFER-RK3588 Front
icon-new

WAFER-RK3588

3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4x memory & 32GB eMMC NAND FLASH on board default, single HDMI™ input and dual HDMI™ out, 2.5GbE LAN, GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~ 60°C and RoHS
Rockchip RK3588 (Quad core Cortex A76 + Quad core Cortex A55)
Rockchip RK3588 (Quad core Cortex A76 + Quad core Cortex A55)
On-board 8GB LPDDR4x
On-board 8GB LPDDR4x
1 x MIPI DSI
1 x LVDS out
1 x HDMI-input up to 4K@60FPS
1 x HDMI-output up to 8K@60Hz
1 x HDMI-output up to 4K@60Hz
1 x MIPI DSI
1 x LVDS out
1 x HDMI-input up to 4K@60FPS
1 x HDMI-output up to 8K@60Hz
1 x HDMI-output up to 4K@60Hz
1 x GHz LAN
1 x 2.5 GHz LAN
1 x USB 3.2 GEN 1 Type C with DP (OS update)
1 x USB 3.2 GEN 1 Type A
2 x USB2.0 Type A
UART (2x9pin header)
SATA (1 x SATA3.0 up to 6 Gb/s)
1 x DC jack
1 x GHz LAN
1 x 2.5 GHz LAN
1 x USB 3.2 GEN 1 Type C with DP (OS update)
1 x USB 3.2 GEN 1 Type A
2 x USB2.0 Type A
UART (2x9pin header)
SATA (1 x SATA3.0 up to 6 Gb/s)
1 x DC jack
3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4x memory & 32GB eMMC NAND FLASH on board default, single HDMI™ input and dual HDMI™ out, 2.5GbE LAN, GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~60°C and RoHS
3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4x memory & 32GB eMMC NAND FLASH on board default, single HDMI™ input and dual HDMI™ out, 2.5GbE LAN, GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~60°C and RoHS
IEI WAFER-TGL-U Embedded Board

WAFER-TGL-U

3.5" SBC supports Intel® Tiger Lake-UP3 Core I™ Celeron® Proccessor, with HDMI™, DP, iDPM, triple 2.5 GbE Lan port, USB 3.2, M.2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~60°C
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
One 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 32 GB)
One 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 32 GB)
Quadruple 4K independent display
2 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
Quadruple 4K independent display
2 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
External I/O Interface:
4 x USB 3.2 Gen2(10Gb/s)by USB Type-C
Internal I/O Interface:
1 x SATA 6G/s
2 x USB 2.0 PIN Header(p=2.0)
2 x RS-232/422/485 (2 x 5 pin, P=2.0)
1 x RS-232 (2 x 5 pin, P=2.0)
External I/O Interface:
4 x USB 3.2 Gen2(10Gb/s)by USB Type-C
Internal I/O Interface:
1 x SATA 6G/s
2 x USB 2.0 PIN Header(p=2.0)
2 x RS-232/422/485 (2 x 5 pin, P=2.0)
1 x RS-232 (2 x 5 pin, P=2.0)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/3052 B-key slot (PCIe x2 & USB 2.0)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/3052 B-key slot (PCIe x2 & USB 2.0)
WAFER-JL Embedded Board

WAFER-JL

3.5" SBC with Intel® 10nm Jasper Lake Celeron® N5105 Processor with Dual Displays, DDR4, Triple Intel® 2.5 GbE, USB3.2, M.2, SATA, COM, SoC, RoHS
CPU:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
Chipset:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
CPU:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
Chipset:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB
One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB
Dual Independent Displays
1 x HDMI 1.4
1 x DP 1.4
Dual Independent Displays
1 x HDMI 1.4
1 x DP 1.4
External I/O Interface:
2 x USB 3.2 Gen2
Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (1x9 pin, P=1.25) from EC
External I/O Interface:
2 x USB 3.2 Gen2
Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (1x9 pin, P=1.25) from EC
1.support TDP 10W low power consumption Intel® Celeron® N5105 CPU
2.support Intel® I225V 2.5GbE Ethernet controller
3.Various I / O interfaces
1.support TDP 10W low power consumption Intel® Celeron® N5105 CPU
2.support Intel® I225V 2.5GbE Ethernet controller
3.Various I / O interfaces
HYPER-AL Embedded Board

HYPER-AL

Pico-ITX SBC supports 14nm Intel® Apollo Lake Celeron® N3350 on-board SoC with DDR3L, HDMI™, LVDS, dual GbE, USB 3.2 Gen 1, SATA, M.2
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
One 204-pin 1866/1600MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
(system max. 8GB)
One 204-pin 1866/1600MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
(system max. 8GB)
1 x HDMI
1 x LVDS (2x10 pin, single channel, 24bit)
1 x HDMI
1 x LVDS (2x10 pin, single channel, 24bit)
* External I/O Interface
2 x USB3.0 (on rear I/O)
* Internal I/O Interface
1 x RS-232 (1x9 pin, P=1.25)
1 x SATA 6Gb/s (w/ 5V SATA PWR)
2 x USB 2.0 (2 by pin header) (2x4 pin, P=2.0)
* External I/O Interface
2 x USB3.0 (on rear I/O)
* Internal I/O Interface
1 x RS-232 (1x9 pin, P=1.25)
1 x SATA 6Gb/s (w/ 5V SATA PWR)
2 x USB 2.0 (2 by pin header) (2x4 pin, P=2.0)
* Expansion
1 x M.2 A key 2230 (PCIe, USB)
1 x M.2 B key 2242 (USB, SATA)
* Expansion
1 x M.2 A key 2230 (PCIe, USB)
1 x M.2 B key 2242 (USB, SATA)

HYPER-BT

Pico-ITX SBC supports Intel® 22nm Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8GB
(J1900, N2930, E3845, E3827, E3826) or 4GB (N2807, E3825, E3815)
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8GB
(J1900, N2930, E3845, E3827, E3826) or 4GB (N2807, E3825, E3815)
Dual independent display
1 x VGA (up to 2560x1600@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Dual independent display
1 x VGA (up to 2560x1600@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
1 x Internal RS-232
2 x Internal USB 2.0
1 x USB 2.0
1 x USB 3.0
1 x Internal RS-232
2 x Internal USB 2.0
1 x USB 2.0
1 x USB 3.0
HYPER-BW Embedded Board

HYPER-BW

Pico-ITX SBC with Intel® 14nm Pentium®/Celeron® on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
*Intel® Atom® x5-E8000 on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
*Intel® Atom® x5-E8000 on-board SoC
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
support up to 8 GB
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
support up to 8 GB
Dual independent display
2 x Mini HDMI (up to 3840x2160@30Hz)
Dual independent display
2 x Mini HDMI (up to 3840x2160@30Hz)
1 x Internal RS-232
2 x Internal USB 2.0
RS-232
1 x USB 2.0
1 x USB 3.0
1 x Internal RS-232
2 x Internal USB 2.0
RS-232
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x M.2 2242 (B key)
Expansion:
1 x M.2 2242 (B key)

NANO-AL

EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ x7-E3950 on-board SoC
*Intel® Atom™ x5-E3940 on-board SoC
*Intel® Atom™ x5-E3930 on-board SoC
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ x7-E3950 on-board SoC
*Intel® Atom™ x5-E3940 on-board SoC
*Intel® Atom™ x5-E3930 on-board SoC
One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB
One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB
Triple Independent Displays:
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160 @ 30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)
Triple Independent Displays:
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160 @ 30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)
2 x USB 3.0
2 x USB 2.0
2 x SATA 6G/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)
2 x USB 3.0
2 x USB 2.0
2 x SATA 6G/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)
Expansion
1 x Full/Half-size PCIe Mini slot (with SIM holder)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional)
1 x SIM holder (Optional)
Expansion
1 x Full/Half-size PCIe Mini slot (with SIM holder)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional)
1 x SIM holder (Optional)

NANO-BT

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

NANO-BTW2

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

NANO-ULT3

EPIC SBC supports Intel® 14nm 6th Generarion Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)
Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI1)
Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI1)
3 x Internal USB 2.0
4 x USB 3.0
3 x Internal USB 2.0
4 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot
Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot

NANO-ULT5

EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI™, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C
*Intel® Celeron® processor 4305UE
*Intel® Core™ i3-8145UE
*Intel® Core™ i5-8365UE
*Intel® Core™ i7-8665UE
*Intel® Celeron® processor 4305UE
*Intel® Core™ i3-8145UE
*Intel® Core™ i5-8365UE
*Intel® Core™ i7-8665UE
Dual 260-pin 2400MHz Dual-channel DDR4 SO-DIMMs support up to 32GB
Dual 260-pin 2400MHz Dual-channel DDR4 SO-DIMMs support up to 32GB
Triple Independent Displays :
1 x HDMI up to 3840x2160@60Hz
1 x DP up to 3840x2160@60Hz
1 x Internal LVDS Up to 1920x1200@60Hz
Triple Independent Displays :
1 x HDMI up to 3840x2160@60Hz
1 x DP up to 3840x2160@60Hz
1 x Internal LVDS Up to 1920x1200@60Hz
1 x RS-232
4 x USB 3.1 Gen2
2 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x TPM (2x10 pin, p=0.5)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6G/s with 5V SATA power connector
1 x SMBus 1x4 pin
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
1 x M.2 slot with 2280 M key
1 x SIM card
1 x RS-232
4 x USB 3.1 Gen2
2 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x TPM (2x10 pin, p=0.5)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6G/s with 5V SATA power connector
1 x SMBus 1x4 pin
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
1 x M.2 slot with 2280 M key
1 x SIM card
EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C
EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C

PM-BT

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)
Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)
1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)
1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)
PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC
PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC

WAFER-AL

3.5" SBC supports Intel® 14nm Generation Atom™ or Celeron® on-board SoC with DP++/VGA/LVDS/iDP support
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ E3950 on-board SoC
*Intel® Atom™ E3940 on-board SoC
*Intel® Atom™ E3930 on-board SoC
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ E3950 on-board SoC
*Intel® Atom™ E3940 on-board SoC
*Intel® Atom™ E3930 on-board SoC
One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs support up to 8GB
One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs support up to 8GB
Triple independent display
1 x DP++ (up to 4096x2160@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x LVDS: 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP (colay with VGA, support by request)
Triple independent display
1 x DP++ (up to 4096x2160@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x LVDS: 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP (colay with VGA, support by request)
2 x PCIe GbE LAN Ethernet Realtek RTL8111 Controller
1 x Front audio (2x5 pin)
2 x RS-232 (1x9 pin, P=1.25)
2 x RS-232/422/485 (1x9 pin, P=1.25)
2 x SATA 6Gb/s with 5V SATA power connector (no RAID)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x USB 3.0 (External)
1 x SMBus (1x4 pin, P=2.0)
1 x Full/Half-size PCIe Mini slot (supports mSATA, colay with SATA port 2)
1 x Full/Half-size PCIe Mini slot (supports SIM card holder)
1 x 8-bit digital I/O (2x5 pin)
2 x PCIe GbE LAN Ethernet Realtek RTL8111 Controller
1 x Front audio (2x5 pin)
2 x RS-232 (1x9 pin, P=1.25)
2 x RS-232/422/485 (1x9 pin, P=1.25)
2 x SATA 6Gb/s with 5V SATA power connector (no RAID)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x USB 3.0 (External)
1 x SMBus (1x4 pin, P=2.0)
1 x Full/Half-size PCIe Mini slot (supports mSATA, colay with SATA port 2)
1 x Full/Half-size PCIe Mini slot (supports SIM card holder)
1 x 8-bit digital I/O (2x5 pin)
3.5" SBC supports Intel® 14nm Generation Atom™ or Celeron® on-board SoC
with DP++/VGA/LVDS/iDP support, Dual PCIe GbE, USB 3.0, PCIe Mini with
mSATA support, SATA 6Gb/s, COM, Audio and RoHS
3.5" SBC supports Intel® 14nm Generation Atom™ or Celeron® on-board SoC
with DP++/VGA/LVDS/iDP support, Dual PCIe GbE, USB 3.0, PCIe Mini with
mSATA support, SATA 6Gb/s, COM, Audio and RoHS
WAFER-BT Embedded Board

WAFER-BT

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.2 Gen 1 (5Gb/s), PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
Intel® Atom™/Celeron® on-board SoC
Intel® Atom™/Celeron® on-board SoC
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual display supported
1 x VGA (Resolution: 2560x1600@60Hz)
1 x dual channel 24bit LVDS connector
(1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Dual display supported
1 x VGA (Resolution: 2560x1600@60Hz)
1 x dual channel 24bit LVDS connector
(1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
2 x Internal RS-232
4 x Internal USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0
2 x Internal RS-232
4 x Internal USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0
3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS
3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS

WAFER-BT-E38001W2

3.5” SBC with Intel® 22nm Atom™ SoC
IIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
IIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)
2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)
2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
Dual independent dispaly
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Dual independent dispaly
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
1 x Internal RS-232
4 x Internal USB 2.0
1 x RS-232
1 x USB 2.0
1 x USB 3.0
1 x Internal RS-232
4 x Internal USB 2.0
1 x RS-232
1 x USB 2.0
1 x USB 3.0
Expansion:
2 x PCIe Mini slot
Expansion:
2 x PCIe Mini slot

WAFER-BW

3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8 GB
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8 GB
Triple independent display
2 x HDMI (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Triple independent display
2 x HDMI (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x LAN: Realtek RTL8111GN
1 x 8-bit digital I/O (1x10 pin, P=1.25)
1 x Analog audio (2x5 pin)
2 x Internal RS-232/422/485(2 by pin header; 1x9 pin, P=1.25)
1 x eMMC4.51 (optional)
2 x SATA 6G/s with 5V SATA power connector (no RAID)
1 x KB/MS (1x6 pin)
3 x RS-232 (1x9 pin, P=1.25)
1 x mSATA
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2 by pin header; 1x9 pin, P=1.25)
2 x LAN: Realtek RTL8111GN
1 x 8-bit digital I/O (1x10 pin, P=1.25)
1 x Analog audio (2x5 pin)
2 x Internal RS-232/422/485(2 by pin header; 1x9 pin, P=1.25)
1 x eMMC4.51 (optional)
2 x SATA 6G/s with 5V SATA power connector (no RAID)
1 x KB/MS (1x6 pin)
3 x RS-232 (1x9 pin, P=1.25)
1 x mSATA
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2 by pin header; 1x9 pin, P=1.25)
Expansion:
2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA signal from SATA2)
Expansion:
2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA signal from SATA2)
WAFER-ULT3 Embedded Board, Triple display with VGA/iDP, HDMI™ and LVDS selection

WAFER-ULT3

3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support
6th generation Intel® mobile ULT processor
*Intel® Core™ i7-6600U
*Intel® Core™ i5-6300U
*Intel® Core™ i3-6100U
*Intel® Celeron® processor 3955U
*Intel® Celeron® processor 3855U
6th generation Intel® mobile ULT processor
*Intel® Core™ i7-6600U
*Intel® Core™ i5-6300U
*Intel® Core™ i3-6100U
*Intel® Celeron® processor 3955U
*Intel® Celeron® processor 3855U
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 4096x2160@30Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 4096x2160@30Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
Expansion
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
1 x Full-size PCIe Mini slot (w/ SIM card slot support)
*3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.
Expansion
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
1 x Full-size PCIe Mini slot (w/ SIM card slot support)
*3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.

WAFER-ULT5

3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI™ 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS
*Intel® Core™ i7-8665UE 1.9 GHz
*Intel® Core™ i5-8365UE 1.6 GHz
*Intel® Core™ i3-8145UE 2.1 GHz
*Intel® Celeron® processor 4305UE
*Intel® Celeron® processor 4205U
*Intel® Core™ i7-8665UE 1.9 GHz
*Intel® Core™ i5-8365UE 1.6 GHz
*Intel® Core™ i3-8145UE 2.1 GHz
*Intel® Celeron® processor 4305UE
*Intel® Celeron® processor 4205U
Single 260-pin 2400MHz DDR4 SO-DIMMs support up to 32GB
Single 260-pin 2400MHz DDR4 SO-DIMMs support up to 32GB
Triple Independent Displays
2 x HDMI up to 40960x2160@30Hz
1 x Internal LVDS Up to 1920x1200@60Hz
Triple Independent Displays
2 x HDMI up to 40960x2160@30Hz
1 x Internal LVDS Up to 1920x1200@60Hz
4 x USB 3.1 Gen2
3 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x9 pin, P=1.25)
1 x USB 2.0 (2x4 pin, P=2.0)
1 x SATA 6G/s with 5V SATA power connector
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
4 x USB 3.1 Gen2
3 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x9 pin, P=1.25)
1 x USB 2.0 (2x4 pin, P=2.0)
1 x SATA 6G/s with 5V SATA power connector
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS
3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS

ETX / COM EXPRESS / Q7

IEI provides ETX, COM Express and Q7 single board computers to fulfill multiple application solution, such as automation controllers, mobile devices and measurement systems.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

ICE-BT-T6

COM Express Rev 2.1 Basic Type 6 Module, Intel® 4th Generation Atom™ Processor
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB
Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB
1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
7 x USB 2.0
4 x USB 3.0
7 x USB 2.0
4 x USB 3.0
Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)
Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)

ICE-DB-T6

Baseboard for COM Express Type 6 Module
Supports COM Express Compact/Mini module using connector pin out Type 6
Supports COM Express Compact/Mini module using connector pin out Type 6
1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)
1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)
1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)
1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)
Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC
Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC

ICE-DB-T6R

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1
Supports COM Express Compact/Mini module using connector pin out Type 6
Supports COM Express Compact/Mini module using connector pin out Type 6
1 x VGA
1 x HDMI (HDMI signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)
1 x VGA
1 x HDMI (HDMI signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)
4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)
4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)
Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)
Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)

ICE-ULT3

COM Express Compact size Type 6 Module, 6th Generation Intel® Core™ ULT Processor
6th generation Intel® mobile ULT on-board SoC
*Intel® Core™ i7-6600U
*Intel® Core™ i5-6300U
*Intel® Core™ i3-6100U
*Intel® Celeron® processor 3955U
*Intel® Celeron® processor 3855U
6th generation Intel® mobile ULT on-board SoC
*Intel® Core™ i7-6600U
*Intel® Core™ i5-6300U
*Intel® Core™ i3-6100U
*Intel® Celeron® processor 3955U
*Intel® Celeron® processor 3855U
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs
support up to 32GB
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs
support up to 32GB
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
(Option with 1 x CRT via CH7517) (up to 1920x1200@60Hz)
1 x DDI: Embedded DP (up to 3840x2160@60Hz)
(Option with 1 x Dual Channel LVDS 18/24 bit via CH7511B) (up to 1920x1200@60Hz)
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
(Option with 1 x CRT via CH7517) (up to 1920x1200@60Hz)
1 x DDI: Embedded DP (up to 3840x2160@60Hz)
(Option with 1 x Dual Channel LVDS 18/24 bit via CH7511B) (up to 1920x1200@60Hz)
2 x RS-232 (2-Wire) to base board
4 x USB 2.0 to base board
4 x USB 3.0 to base board (with 4 x USB 2.0)
2 x SATA 6GB/s signal to base board
2 x RS-232 (2-Wire) to base board
4 x USB 2.0 to base board
4 x USB 3.0 to base board (with 4 x USB 2.0)
2 x SATA 6GB/s signal to base board
Expansion
1 x PCIe x1 signal to base board (Via PCIe x16 channel)
8 x PCIe x1 signal to base board
Expansion
1 x PCIe x1 signal to base board (Via PCIe x16 channel)
8 x PCIe x1 signal to base board

iQ7-BT

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)
2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
6 x USB 2.0
1 x USB 3.0
6 x USB 2.0
1 x USB 3.0
Expansion:
3 x PCIe x1 signal to baseboard
Expansion:
3 x PCIe x1 signal to baseboard

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)
2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard
6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard
Expansion:
3 x PCIe x1 signal to baseboard
Expansion:
3 x PCIe x1 signal to baseboard
Accelerator Card

TPU Accelerator

Coral is a hardware and software platform for building intelligent devices with fast neural network inferencing. At the heart of our devices is the Edge TPU coprocessor. This is a small ASIC built by Google that's speciallydesigned to execute state-of-the-art neural networks at high speed, with a low power cost.
The Edge TPU is capable of performing 4 trillion operations (tera-operations) per second (TOPS), using 0.5 watts for each TOPS (2 TOPS per watt).
Mustang-T100-Google-TPU-accelerator-card

Mustang-T100-T5

Computing Accelerator Card with 5 x Google Coral edge TPU, PCIe Gen2 x4 interface

VPU Accelerator

Intel® Vision Accelerator Design with Intel® Movidius™ VPU
Mustang-M2BM AI Accelerator with Intel® Movidius™ Myriad™ X MA2485 VPU

Mustang-M2BM

Deep learning inference accelerating M.2 BM key card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22 mm x 80 mm, RoHS

Mustang-V100-MX4

Computing Accelerator Card with 4 x Intel® Movidius™ Myriad™ X MA2485 VPU, PCIe Gen 2 x 2 interface, RoHS

PEMUX Series Backplane

The PEMUX allows users to deliver with maximum 56 lane of PCI Express 3.0 to PEMUX backplane while taking advantage of the speed and increased bandwidth of PCI Express

PEMUX-DB-10S1

1-Slot PEMUX backplane, 4 PCIe Gen 3.0 x8 w/ x16 slot,6 PCIe Gen3.0 x4 w/ x4 slos, and RoHS

PEMUX-DB-8S1

1-Slot PEMUX backplane, 2 PCIe Gen 3.0 x16 w/ x16 slot,6 PCIe Gen3.0 x4 w/ x4 slos, and RoHS

PEMUX-XEW1

Full-size PEMUX CPU Card supports LGA2066 Intel® Xeon® W CPU per, Intel® C422, DDR4 ECC RDIMM, IPMI VGA output, Aquantia 10GbE, USB 3.0, SATA 6Gb/s, M.2 and RoHS
Add-on Card
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features
HPR-L2S Front

HPR-L2S

PCIe Expansion Riser Cards for IEI 2.5” SBC
2 x PCIe x2
2 x PCIe x2
HPR-L4S Front

HPR-L4S

PCIe Expansion Riser Cards for IEI 2.5” SBC
4 x PCIe x1
4 x PCIe x1
HPR-R2S Front

HPR-R2S

PCIe Expansion Riser Cards for IEI 2.5” SBC
2 x PCIe x2
2 x PCIe x2
HPR-R4S Front

HPR-R4S

PCIe Expansion Riser Cards for IEI 2.5” SBC
4 x PCIe x1
4 x PCIe x1
iDPM-DP

iDPM-DP

DisplayPort extension board (For iDPM connector), RoHs
1 x DP connect
1 x DP connect

iM2-UART-4P

M.2 B Key & M Key card supports four RS-232/422/485 Port, RoHs
4 x RS-232/422/485 Port
4 x RS-232/422/485 Port

iUCOM-4D

USB Module supports four RS-232/422/485 Port (DB-9), RoHs
4 x RS-232/422/485 (DB-9)
4 x RS-232/422/485 (DB-9)

iUCOM-4R

USB Module supports four RS-232/422/485 Port (RJ-45), RoHs
4 x RS-232/422/485 (RJ-45)
4 x RS-232/422/485 (RJ-45)
NWR-L2S

NWR-L2S

PCIe Expansion Riser Cards for IEI 3.5”/4” SBC
2 x PCIe x1
2 x PCIe x1

NWR-L3S

PCIe Expansion Riser Cards for IEI 4” SBC
3 x PCIe x1
3 x PCIe x1
NWR-R2S

NWR-R2S

PCIe Expansion Riser Cards for IEI 3.5”/4” SBC
2 x PCIe x1
2 x PCIe x1

NWR-R3S

PCIe Expansion Riser Cards for IEI 4” SBC
3 x PCIe x1
3 x PCIe x1
NWR2-LS2 Front

NWR2-L2S

PCIe Expansion Riser Cards for IEI 3.5”/4” SBC
2 x PCIe x2
2 x PCIe x2
NWR2-R2S Front

NWR2-R2S

PCIe Expansion Riser Cards for IEI 3.5”/4” SBC
2 x PCIe x2
2 x PCIe x2

LCD Converter Board

iDP (IEI Internal Display Port) connector is provided on the IEI products. Through the IEI iDP converter cards, the iDP connector can support different display specification, such as VGA, HDMI™, DVI-D and LVDS.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

DP-DVI

DisplayPort to DVI Converter Board (for IEI iDP Connector)
1 x IEI iDP connector
1 x IEI iDP connector

DP-HDMI

DisplayPort to HDMI™ 1.3a Converter Board (for IEI iDP DP-HDMI™-R10 connector)
IEI iDP connector
IEI iDP connector

DP-LVDS

DisplayPort to 24-bit Dual-channel LVDS Converter Board DP-LVDS-R10 (for IEI iDP Connector)
1 x IEI iDP connector
1 x IEI iDP connector
iDPM-eDP converter card

iDPM-eDP

eDP to eDP Connector converter board (Only for IEI iDPM slot)
1 x eDP connect
1 x eDP connect
iDPM-LVDS converter card

iDPM-LVDS

eDP to LVDS Connector converter board (Only for IEI iDPM slot)
1 x LVDS connect
1 x LVDS connect
iDPM-VGA converter card

iDPM-VGA

eDP to VGA Connector converter board (Only for IEI iDPM slot)
1 x VGA pin-header
1 x VGA pin-header

PCI/PCIe Expansion Card

IEI provides industrial communication cards for different expasion and application through ISA, PCI or PCI Express.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

GPOE-2P

PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS
1. PCI Express® x1 compliant
2. Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power
1. PCI Express® x1 compliant
2. Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power

GPOE-2P2

PCI Express Power over Ethernet card, 2-port 2.5GbE, 802.3at compliant, low profile, RoHS
2 x LAN (2.5GbE)
2 x LAN (2.5GbE)

GPOE-4P

PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile, RoHS
1. PCI Express® x1 compliant
2. Support for total 90 watts under full load
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power
1. PCI Express® x1 compliant
2. Support for total 90 watts under full load
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power

GPOE-4P2

PCI Express Power over Ethernet card, 4-port 2.5GbE, 802.3at/af compliant, low profile, RoHS
4 x LAN (2.5GbE)
4 x LAN (2.5GbE)
IEI GPOE-6P add-on card

GPOE-6P

PCI Express Power over Ethernet card, 6-port 1000 Base(T), 802.3at / bt compliant, RoHS
1. Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
2. Total 180 Watts power budget with maximum 90 Watts per port
3. PoE power sourced from 12 ~ 24VDC of ATX power
4. Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
5. Supports SW/RDK (IEI GPOE Management Software Tools)
6. Compatible with x4, x8 and x16 PCIe slots
7. IEEE 802.3at/bt PoE compliant
1. Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
2. Total 180 Watts power budget with maximum 90 Watts per port
3. PoE power sourced from 12 ~ 24VDC of ATX power
4. Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
5. Supports SW/RDK (IEI GPOE Management Software Tools)
6. Compatible with x4, x8 and x16 PCIe slots
7. IEEE 802.3at/bt PoE compliant

IPCIE-CAN-2D

PCIe card supports 2-Port CAN Bus with Isolation Protection, RoHs
2 x DB9 (CAN 2.0B port with isolation)
2 x DB9 (CAN 2.0B port with isolation)

IPCIE-UART-2D2P

PCIe card supports four RS-232/422/485 Port, RoHs
2 x RS-232/422/485 ( DB-9 )
2 x RS-232/422/485 pin header (2x5 pin)
2 x RS-232/422/485 ( DB-9 )
2 x RS-232/422/485 pin header (2x5 pin)
LAN-100G2SF-E810 Intel® Ethernet Controller E810 based Network Interface Card

LAN-100G2SF

Intel® Ethernet Controller E810 based Network Interface Card 2 x 100GbE with 2 x QSFP28, PCIe 4.0 x 16 interface.
Intel® Ethernet Controller E810 based Network Interface Card 2 x 100GbE with 2 x QSFP28, PCIe 4.0 x 16 interface.
Intel® Ethernet Controller E810 based Network Interface Card 2 x 100GbE with 2 x QSFP28, PCIe 4.0 x 16 interface.

Wireless Module

PCIe Mini card *Solid design with external antenna diversity *Low power consumption and high performance
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features
EMB-WIFI-KIT Wireless Module

EMB-WIFI-KIT

PCIe Mini card wireless LAN module kit
● Half size PCIe Mini card form factor
● High speed wireless connection
● Low power consumption and high performance
● Fully qualified Bluetooth 4.0
● Solid design with external antenna diversity
● Half size PCIe Mini card form factor
● High speed wireless connection
● Low power consumption and high performance
● Fully qualified Bluetooth 4.0
● Solid design with external antenna diversity
EMB-WIFI-KIT02I3 M.2 AE Key wifi module kit

EMB-WIFI-KIT02I3

M.2 A/E Key WI-FI 6E module kit
● M.2 2230 AE Key form factor
● High speed wireless connection,WI-FI 6E
● Low power consumption and high performance
● Fully qualified Bluetooth 5.2
● Solid design with external antenna diversity
● M.2 2230 AE Key form factor
● High speed wireless connection,WI-FI 6E
● Low power consumption and high performance
● Fully qualified Bluetooth 5.2
● Solid design with external antenna diversity

Mini-PCIe Module

PCI Express Mini Card *IO Interface converter *RoHs
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

IGCME-1300

PCIe Mini VGA Adapter Card,
PCI Express Mini card

1 x 10-pin (2x5) box header by 2.0mm pitch
PCI Express Mini card

1 x 10-pin (2x5) box header by 2.0mm pitch

MPCIE-3G

PCI Express Mini 3G Adapter Card, RoHS
PCI Express Mini 3G Adapter Card, RoHS
PCI Express Mini 3G Adapter Card, RoHS

MPCIE-DLAN

PCI Express Mini Dual Intel® GbE LAN Module, Full Size
PCI Express Mini GbE LAN Module
PCI Express Mini GbE LAN Module

MPCIE-LAN

PCI Express Mini GbE LAN Module, Full Size
PCI Express mini card
PCI Express mini card
MPCIE-UART-KIT01 Mini-PCIe Module

MPCIE-UART-KIT01

PCI Express Mini Card Supports Quad-port RS-232/422/485, Full Size
PCI Express Mini Card
PCI Express Mini Card

MPCIE-UART-KIT02

PCI Express Mini Card Supports Dual-port RS-232/422/485, 16-bit GPIO, Full Size
PCI Express Mini Card
PCI Express Mini Card

TPM Module

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

TPM-IN01

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration

TPM-IN02

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration

TPM-IN03

SPI TPM 2.0 module, software management tool
Infineon SPI TPM 2.0 with SLB9670VQ2.0 FW7.85
Infineon SPI TPM 2.0 with SLB9670VQ2.0 FW7.85
SPI TPM 2.0 module, software management tool, firmware v7.85
SPI TPM 2.0 module, software management tool, firmware v7.85

Audio Kit

Audio Board

CPU Socket / Chipset
Memory
Display
I/O / Slot
Features
AC-KIT-888S  Audio Kit

AC-KIT-888S

Realtek ALC888S 7.1 Channel HD Audio peripheral board,RoHS
Realtek ALC888S HD Audio codec
Realtek ALC888S HD Audio codec
1 x Mic-in connector
1 x Line-in connector
1 x Front-out connector
1 x Rear-out connector
1 x Center/Subwoofer connector
1 x Mic-in connector
1 x Line-in connector
1 x Front-out connector
1 x Rear-out connector
1 x Center/Subwoofer connector
1. Realtek ALC888S HD Audio codec IC supported
2. Five audio jacks for microphone, 7.1+2-channel high definition audio input and output
3. High performance 7.1+2-channel high definition audio board provides 7.1-channel sound playback and multiple streaming through the front panel stereo outputs
4. Digital to Analog Converter (DAC) with 97dB Signal to Noise Ratio (SNR)
5. Analog to Digital Converter (ADC) with 90dB Signal to Noise Ratio (SNR)
6. All the Digital to Analog Converter (DAC) supports 44.1k/48k/96k/192kHz sampling rate
7. All the Analog to Digital Converter (ADC) supports 44.1k/48k/88.2k/96k/192kHz sample rate
8. Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)
9. CE/FCC compliant
1. Realtek ALC888S HD Audio codec IC supported
2. Five audio jacks for microphone, 7.1+2-channel high definition audio input and output
3. High performance 7.1+2-channel high definition audio board provides 7.1-channel sound playback and multiple streaming through the front panel stereo outputs
4. Digital to Analog Converter (DAC) with 97dB Signal to Noise Ratio (SNR)
5. Analog to Digital Converter (ADC) with 90dB Signal to Noise Ratio (SNR)
6. All the Digital to Analog Converter (DAC) supports 44.1k/48k/96k/192kHz sampling rate
7. All the Analog to Digital Converter (ADC) supports 44.1k/48k/88.2k/96k/192kHz sample rate
8. Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)
9. CE/FCC compliant
AC-KIT2-888S-R10 Front

AC-KIT2-888S

Realtek ALC888S 7.1 Channel HD Audio peripheral board,half size, RoHS
Realtek ALC888S HD Audio codec
Realtek ALC888S HD Audio codec
2 x audio jacks (for mic in and line out)
2 x audio jacks (for mic in and line out)
● Realtek ALC888S HD Audio codec IC supported
● Two audio jacks for mic in and line out
● Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)
● Realtek ALC888S HD Audio codec IC supported
● Two audio jacks for mic in and line out
● Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)

Remote Management Module

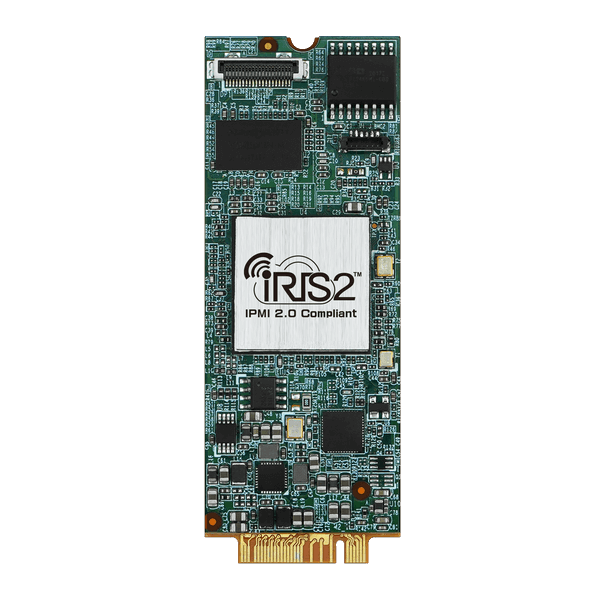

iRIS2-2600

IPMI 2.0 adapter card with 2600 BMC chip for IEI IRIS2 Connector IPMI 2.0 module

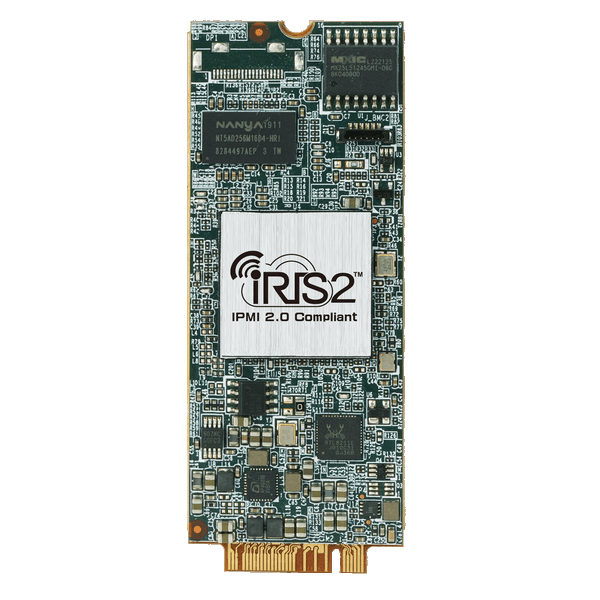

iRIS2-2620

IPMI 2.0 adapter card with 2620 BMC chip for IEI IRIS2 Connector IPMI 2.0 module
