Networking and Servers

- All-in-One Solution, including Router, VPN, Firewall, UTM, etc
- Open Source Software
- ODM/OEM Service

[Learn More about PUZZLE Series]


比較狀態 :
已設定.要比較機種數 :
已設定.要比較機種 :
列表區塊.Now 位置狀態 :
列表區塊.單位區塊寬 :
列表區塊.Now X 位置 :
列表區塊.目標 X 位置 :
顯示框寬 :
列表寬 :
Network Appliance

Premium network appliances

The 1U and 2U rackmount network appliances feature the latest server-grade Intel® Xeon® D and Intel® Xeon® Scalable processors for enterprise network and cloud infrastructures. The network appliances offer high expandability, scaling throughputs and various copper, fiber and bypass Ethernet ports through optional 1GbE/10GbE/25GbE/100GbE NIC modules.

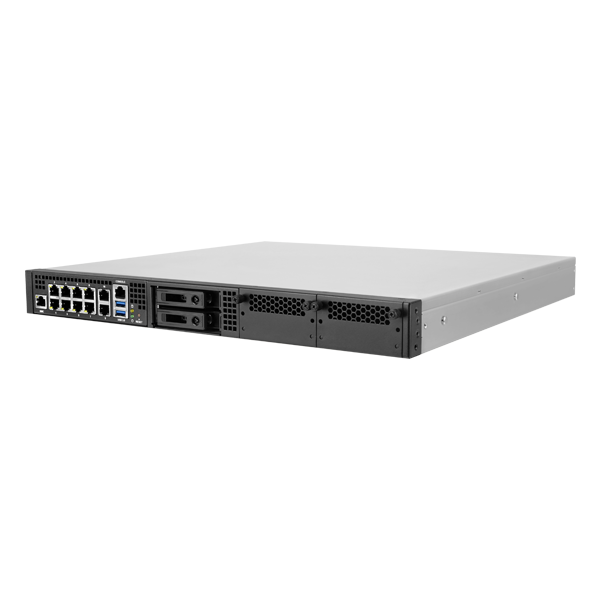

IEI PUZZLE-7030A intel 1U network appliance

PUZZLE-7030A

1U Rackmount Network Appliance with Intel® Xeon® D Processor series (Code Name: Ice Lake-D LCC)

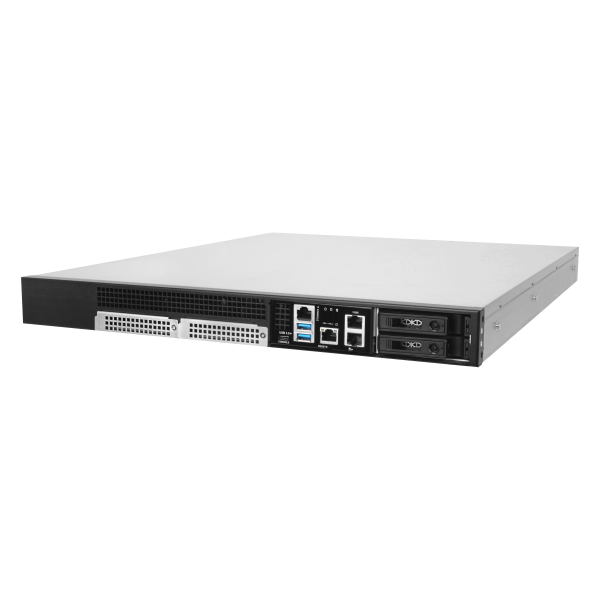

PUZZLE-9030 1U Rackmount Network Appliance

PUZZLE-9030

1U Rackmount Network Appliance with 3rd Gen AMD® EPYC™ 7003 series processor
(request by order)

PUZZLE-9040

2U Rackmount Network Appliance with Intel® Xeon® Scalable processors (Code name: Sapphire Rapids)
(request by order)

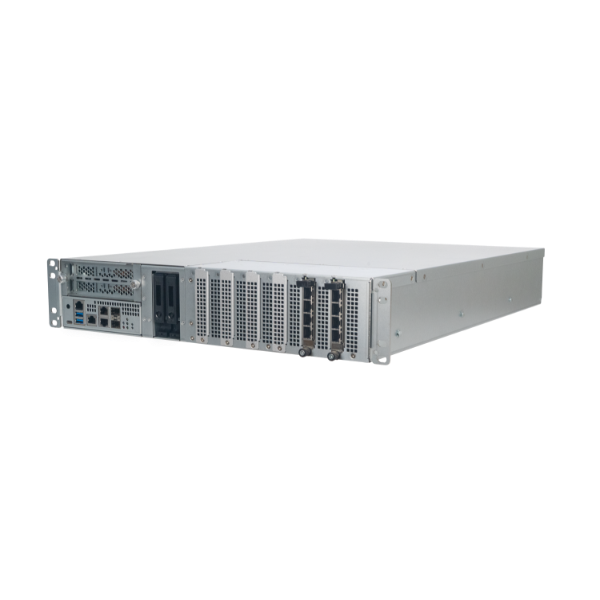

PUZZLE-IN005 Intel® 2U Network Appliance

PUZZLE-IN005

2U Rackmount Network Appliance with 3rd Gen. Intel®Xeon® Scalable Processor,
Eight PulM Module Slots & One PCIe x8 Expansion

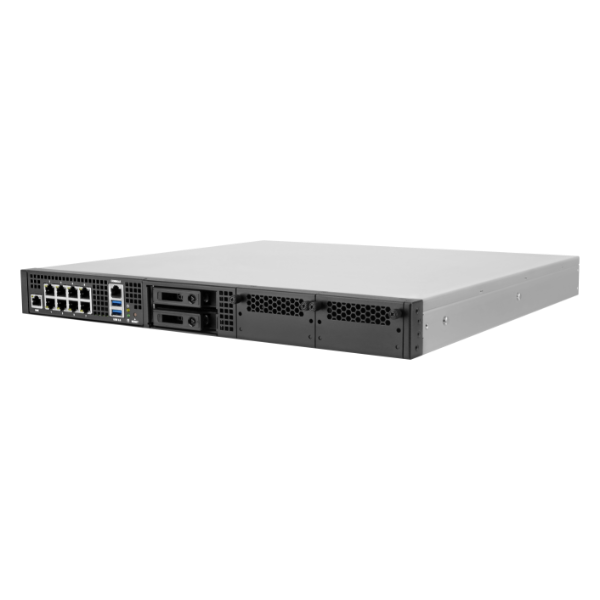

PUZZLE-IN004 1U Rackmount Network Appliance with Intel® Xeon® D Processor

PUZZLE-IN004

1U Rackmount Network Appliance with Intel® Xeon® D Processor support 8 x GbE, 4 x 10GbE SFP+ and 1 PCIe x8 slot

Performance-level network appliances

The 1U rackmount network appliances integrate with Intel® Xeon® E and Intel® Core™ processors. They are ideally to be deployed in various security applications such as firewall, VPN and UTM for medium-sized enterprises. Extra redundancy features are also included like hot-swappable PSUs and multiple network module slot (NMS) bays for flexible port configuration.
PUZZLE-5030 1U Rackmount Network Appliance up to 2 NMS and 2 PCIe slots

PUZZLE-5030

1U Rackmount Network Appliance with Intel® Xeon® E Processor (Codename: Rocket Lake) and the Intel® C256 chipset
PUZZLE-IN001A Network Appliance

PUZZLE-IN001A

1U Rackmount Network Appliance with Intel® Xeon® E and 8th & 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, two PulM module slots and two PCIe slots
PUZZLE-IN002 Network Appliance with Intel CPU

PUZZLE-IN002

1U Rackmount Network Appliance with 8th & 9th Generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® Processor, 1 PCIe slots
IEI PUZZLE-IN001 x86-based appliance

PUZZLE-IN001

1U Rackmount Network Appliance with Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor, up to 2 NMS and 2 PCIe slots

Entry-level network appliances

The compact and fanless network appliances are designed to meet the most cost-performance efficient and environmentally-friendly networking requirements for mainstream security applications.
iEi PUZZLE-3032 desktop network appliance

PUZZLE-3032

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, with 8 x 2.5 GbE and 2 x 10 GbE, 1 x eMMC 64GB
iEi PUZZLE-3034 desktop network appliance

PUZZLE-3034

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, with 8 x 2.5 GbE and 4 x 10 GbE, 1 x eMMC 64GB
PUZZLE-IN003A Desktop Network Appliance

PUZZLE-IN003A

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, up to 8 x 1 GbE on Board with 2 (by sku) bypass segments, 1 x eMMC 32GB
PUZZLE-IN003B compact network firewall appliance for SMB

PUZZLE-IN003B

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor support up to 6 x 1 GbE, 2 x 10 GbE & 2 x M.2 slots, 1 x PCIe Mini, 1 x eMMC 32GB

ARM-based network appliances

The ARM-based network appliance can be expanded by open source applications supported in the OpenWrt community. It is ideally suited for a wide range of applications, such as SOHO and SMB networking infrastructure.
PUZZLE-M801 Network Appliance

PUZZLE-M801

1U Rackmount Network Appliance with Marvell® Armada® 8040 ARM v8 A72 quad-core System-on-Chip
PUZZLE-M902_Software-Defined-Router

PUZZLE-M902

OpenWrt Network Appliance with Marvell® CN9130 Processor, up to three 10GbE, six 2.5GbE with 4GB eMMC
PUZZLE-M901 Software Defined Router for Small and Medium Business

PUZZLE-M901

OpenWrt Network Appliance with Marvell® CN9130 Processor, up to 6 x2.5 GbE on Board with 1 x eMMC 4GB
ARM-based network appliances
PUZZLE-100 Right
icon-new

PUZZLE-100

Desktop network appliance with Marvell Armada 7040 CPU
Storage Server

Intel® CPU

IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]
CPU
Chipset
Rack Height
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

GRAND-GL

Intel® Celeron® J4125 Processor (4M Cache, up to 2.70 GHz)
Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption
Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption
SoC
SoC
1U, 4Bay
1U, 4Bay

AMD® CPU

IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]
CPU
Chipset
Rack Height
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

GRAND-RE

AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
SoC
SoC
2U, 8Bay
2U, 8Bay
Network Module

100GbE Network Module

100GbE Smart NIC Module with Intel®  Chipset

[PulM Series Selection Guide]

CPU
Chipset
Rack Height
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PulM-100G2SF-E810 100GbE Network Module

PulM-100G2SF

Intel® Ethernet Controller EZE810CAM2 based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x8 interface
Intel® Ethernet Controller EZE810CAM2
Intel® Ethernet Controller EZE810CAM2
2 x QSFP28
2 x QSFP28
100 GbE
100 GbE
1 PCIe 4.0 x8
1 PCIe 4.0 x8

PulM-100G2SF-CX6

Mellanox ConnectX-6 Lx based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x16 interface
Mellanox ConnectX-6 Dx
Mellanox ConnectX-6 Dx
2 x QSFP28
2 x QSFP28
1/10/25/40/50/100 Gb/s
1/10/25/40/50/100 Gb/s
1 PCIe 4.0 x16
1 PCIe 4.0 x16

25GbE Network Module

25GbE Smart NIC Module with Mellanox®  Chipset

[PulM Series Selection Guide]

CPU
Chipset
Rack Height
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

PulM-25G2SF

Mellanox ConnectX-4 Lx based Network Interface Card support Dual 25GbE with 2 x SFP28 and PCIe 3.0 x8 Interface
Mellanox ConnectX-4 Lx EN
Mellanox ConnectX-4 Lx EN
2 x SFP+ (SFP28)
2 x SFP+ (SFP28)
25GbE
25GbE
PCIe 3.0 x8
PCIe 3.0 x8

10GbE Network Module

10GbE Smart NIC Module with Intel®, Mellanox® and AQUANTIA® Chipset

[PulM Series Selection Guide]

CPU
Chipset
Rack Height
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PulM-10G2SF-X710 Network Interface Controller

PulM-10G2SF

Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2 x SFP+ by PCIe 3.0 x8 interface
Intel® Ethernet Controller X710-BM2
Intel® Ethernet Controller X710-BM2
2 x SFP+
2 x SFP+
10GbE
10GbE
PCIe 3.0 x8
PCIe 3.0 x8

PulM-10G4SF

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with four 10GbE Fiber ports, two pair Bypass.
Intel® Ethernet Controller XL710-BM1
Intel® Ethernet Controller XL710-BM1
4 x SFP+
4 x SFP+
10GbE
10GbE
PCIe 3.0 x8
PCIe 3.0 x8

PulM-10G4SF-XL710

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x8 interface
Intel® Ethernet Controller XL710-BM1
Intel® Ethernet Controller XL710-BM1
4 x SFP+
4 x SFP+
10GbE
10GbE
PCIe 3.0 x8
PCIe 3.0 x8

PulM-10G4T

Aquantia AQC107 based Network Interface Card with 4 x 10GBASE-T by 4 PCIe 3.0 x2 Interface
Aquantia AQC107
Aquantia AQC107
4 x 10GBASE-T
4 x 10GBASE-T
10GbE
10GbE
4 PCIe 3.0 x2
4 PCIe 3.0 x2

1GbE Network Module

1GbE Smart NIC Module with Intel®, Mellanox®, BROADCOM® and AQUANTIA® Chipset
CPU
Chipset
Rack Height
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

PulM-1G4SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with  4 x SFP by 2 PCIe 2.0 x4 interface.
Intel Ethernet Controller I350-AM4
Intel Ethernet Controller I350-AM4
4 x SFP
4 x SFP
1 GbE
1 GbE
2 PCIe 2.0 x4
2 PCIe 2.0 x4

PulM-1G4T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4
Intel® Ethernet Controller I350-AM4
4 x RJ45
4 x RJ45
1 GbE
1 GbE
2 PCIe 2.0 x4
2 PCIe 2.0 x4
PulM-1G8SF-I350 network interface controller

PulM-1G8SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x SFP by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4
Intel® Ethernet Controller I350-AM4
8 x SFP
8 x SFP
1 GbE
1 GbE
2 PCIe 2.0 x4
2 PCIe 2.0 x4

PulM-1G8T-BCM5720

Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface
Broadcom BCM5720
Broadcom BCM5720
8 x RJ45
8 x RJ45
1 GbE
1 GbE
4 PCIe 2.0 x2
4 PCIe 2.0 x2

PulM-1G8T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4
Intel® Ethernet Controller I350-AM4
8 x RJ45
8 x RJ45
1 GbE
1 GbE
2 PCIe 2.0 x4
2 PCIe 2.0 x4

Other Network Module

Expansion Proprietary Smart NIC Module

[PulM Series Selection Guide]

CPU
Chipset
Rack Height
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
IEI PulM-2P1M Network Module

PulM-2P1M

Two Mini-PCIe and One M.2 Expansion Card Support the Wi-Fi or LTE Module, RoHS
● ASM1812 (PCIe Gen2x4 )
● FL1100EX (PCI-E To USB 3.0 (4 Port))
● ASM1812 (PCIe Gen2x4 )
● FL1100EX (PCI-E To USB 3.0 (4 Port))
● 2 x PCIe Mini (PCIe, USB 2.0) with SIM card slots
● 1 x 2230/2242 M.2 B key (PCIe 2.0, USB 3.2 Gen1) with SIM card slot
● 2 x PCIe Mini (PCIe, USB 2.0) with SIM card slots
● 1 x 2230/2242 M.2 B key (PCIe 2.0, USB 3.2 Gen1) with SIM card slot
PUZZLE-IN001,
PUZZLE-IN001A,
PUZZLE-IN004,
PUZZLE-IN005,
PUZZLE-A001,
PUZZLE-A001A
PUZZLE-IN001,
PUZZLE-IN001A,
PUZZLE-IN004,
PUZZLE-IN005,
PUZZLE-A001,
PUZZLE-A001A

PulM-M2-2S

M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface
N/A
N/A
N/A
N/A
N/A
N/A
2 PCIe 3.0 x4
2 PCIe 3.0 x4

Network Accelerator Card

Computing Acceleration Smart NIC Module

[PulM Series Selection Guide]

Mustang-QA100 Intel QAT accelerator

Mustang-QA100

Intel® QAT accelerator for Crypto and Compression with lewisburg chipset, PCIe gen3 x16, RoHS
